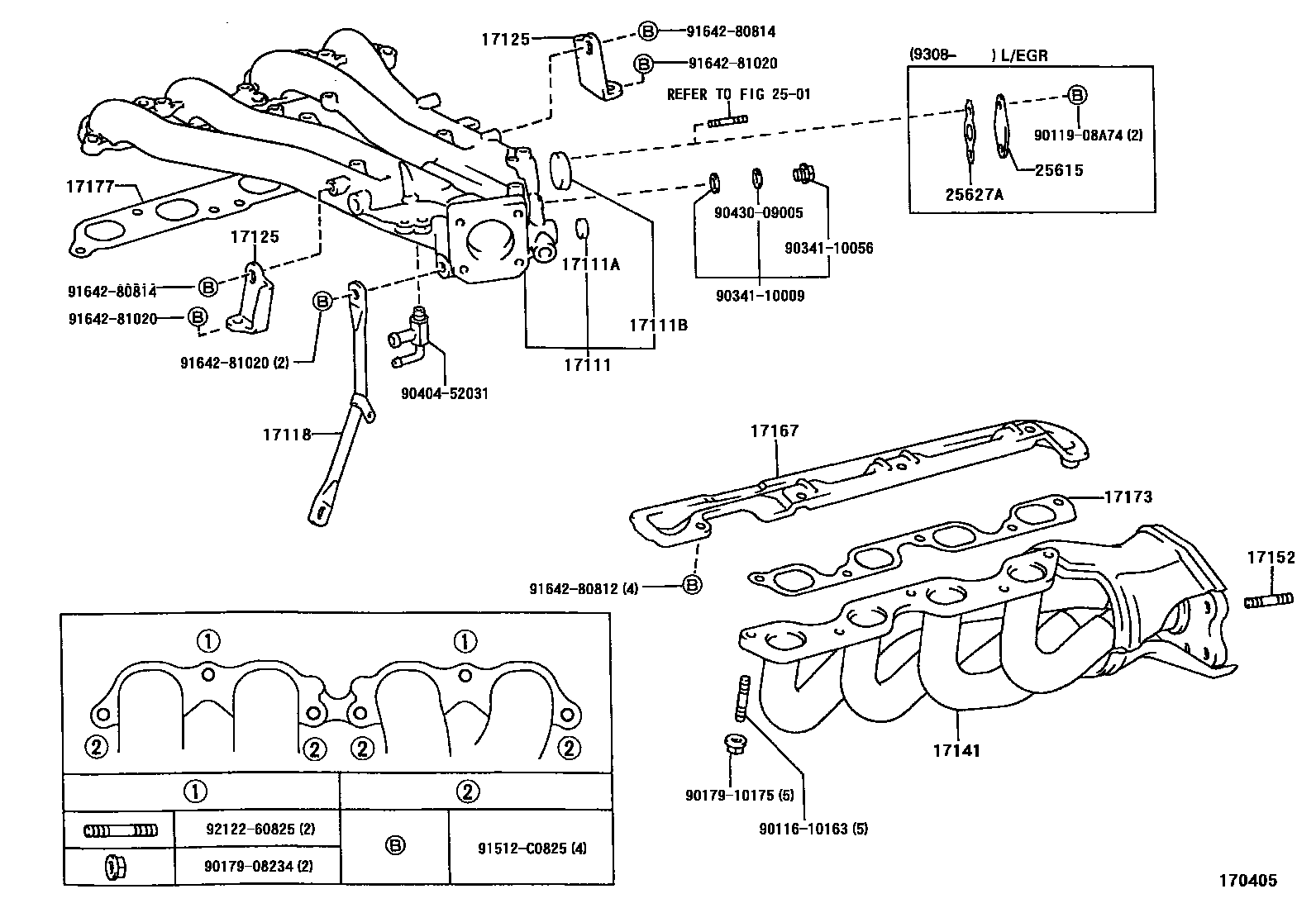

MANIFOLD

0001 1 0002 1 0003 1

17111MANIFOLD, INTAKE

main17101-76010i2TZFE..TCR1#,2#199005-199401

sub17101-76011

sub90179-08199

main17101-76011i2TZFE..TCR1#,2#199401-199403

main17101-76012i2TZFE..TCR1#,2#199403-199608

main17101-76030i2TZFE..TCR1#,2#199608-199912

17111APLUG, NO.1

main90331-16001i2TZFE..TCR1#,2#199005-199608

17111BPLUG, NO.2

main96411-43500i2TZFE..TCR1#,2#199005-199912

17118STAY, MANIFOLD

main17118-76010i2TZFE..TCR1#,2#199005-199308

main17118-76010i2TZFE..TCR1#,2#199308-199912

NO.1

main17118-76020i2TZFE..TCR1#,2#199401-199912

NO.2

17125STAY, SURGE TANK, NO.1

main17125-76010i2TZFE..TCR1#,2#199005-199912

17141MANIFOLD, EXHAUST

main17141-76040i2TZFE..TCR1#,2#199005-199401

main17141-76050i2TZFE..TCR1#,2#199401-199912

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10149i2TZFE..TCR1#,2#199005-199912

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-76010i2TZFE..TCR1#,2#199005-199912

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-76010i2TZFE..TCR1#,2#199005-199912

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-76011i2TZFE..TCR1#,2#199005-199401

sub17177-76020

main17177-76020i2TZFE..TCR1#,2#199401-199912

2501

25615PLATE, EGR HOLE COVER, NO.1

main25615-76010i2TZFE..TCR10..LHD..ATM;2TZFE..TCR11..RHD..MTM199308-199608

25627AGASKET, EGR HOLE COVER PLATE, NO.1

main25627-76010i2TZFE..TCR10..LHD..ATM;2TZFE..TCR11..RHD..MTM199308-199608

9011610163

main90116-10163

9011908A74

main90119-08A74

9017908234

main90179-08234

9017910175

main90179-10175

9034110009

main90341-10009

9034110056

main90341-10056

9040452031

main90404-52031

9043009005

main90430-09005

91512C0825

main91512-C0825

9164280812

main91642-80812

9164280814

main91642-80814

9164281020

main91642-81020

9212260825

main92122-60825

26 parts on this diagram · 3 diagrams in section
