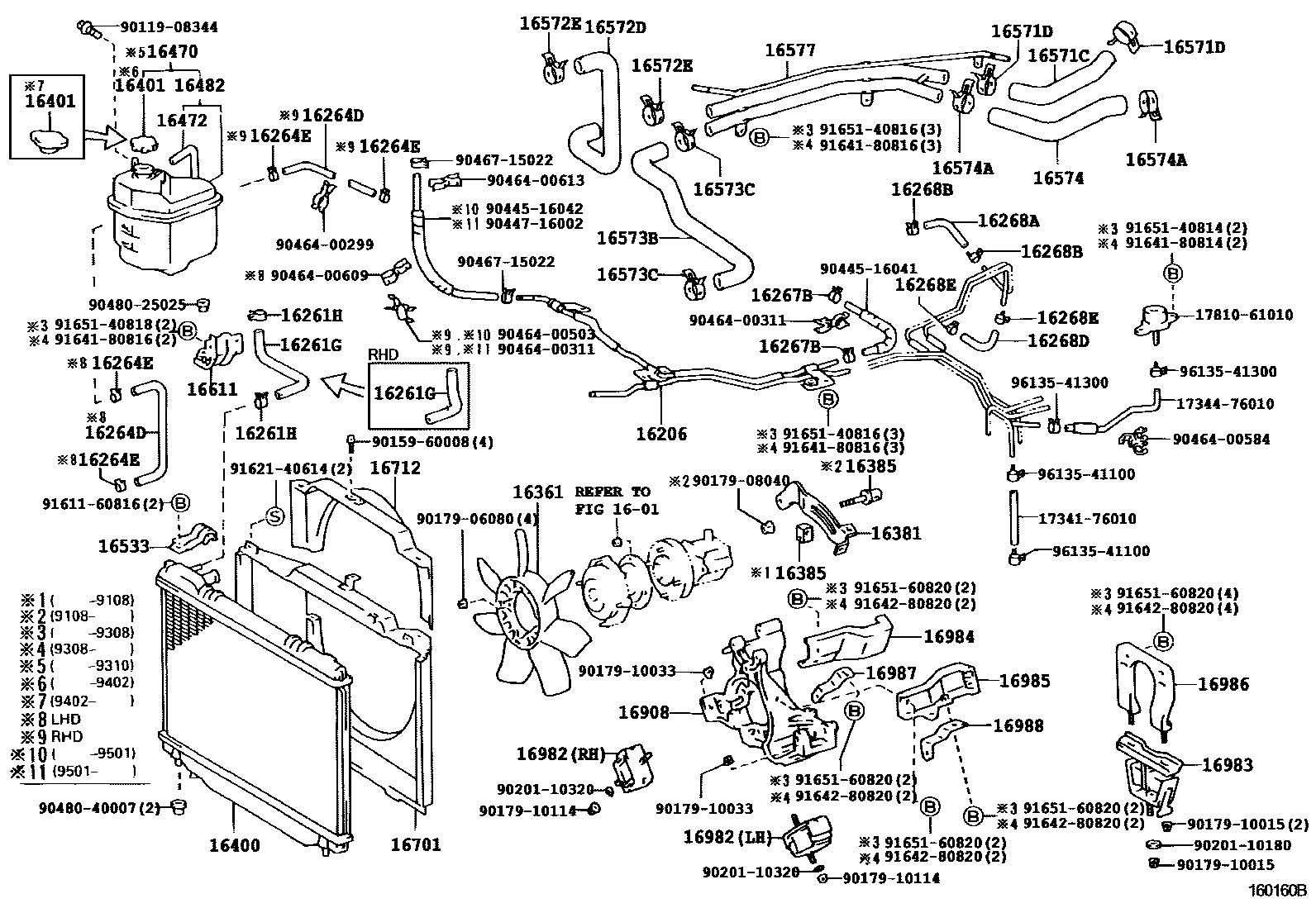

RADIATOR & WATER OUTLET

0001 1 0002 1 0004 1 0005 1 0006 1

1601

16206PIPE SUB-ASSY, WATER BY-PASS

main16206-76010i2TZFE..TCR1#,2#199005-199202

sub16206-76020

main16206-76020i2TZFE..TCR1#,2#199202-199912

16261HOSE, WATER BY-PASS

main16261-76030i2TZFE..TCR1#,2#199005-199912

16261GHOSE, WATER BY-PASS, NO.1

main16261-76040i2TZFE..TCR1#,2#..RHD199005-199912

main16261-76050i2TZFE..TCR1#,2#..LHD199005-199912

16261HCLIP(FOR WATER BY-PASS HOSE NO.1)

main90467-15016i2TZFE..TCR1#,2#199005-199009

sub96135-51400

main90467-15022i2TZFE..TCR1#,2#199409-199912

main96135-41400i2TZFE..TCR1#,2#199009-199409

16264HOSE, WATER BY-PASS, NO.2

main16264-76010i2TZFE..TCR1#,2#199005-199308

sub16264-76011

main16264-76011i2TZFE..TCR1#,2#199308-199912

16264DHOSE, WATER BY-PASS, NO.2

main16264-76020i2TZFE..TCR1#,2#..RHD199005-199202

sub90445-16044

main16264-76040i2TZFE..TCR1#,2#..LHD199005-199912

main90445-16044i2TZFE..TCR1#,21..RHD199202-199912

16264ECLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-15016i2TZFE..TCR1#,2#199005-199009

sub96135-51400

main90467-15022i2TZFE..TCR1#,2#199409-199912

main96135-41400i2TZFE..TCR1#,2#199009-199409

16267HOSE, WATER BY-PASS, NO.3

main16267-76010i2TZFE..TCR1#,2#..ARL,W199005-199608

main16267-76030i2TZFE..TCR10..LHD..ATM199308-199608

LEADED GASOLINE

16267BCLIP(FOR WATER BY-PASS HOSE)

main90467-15016i2TZFE..TCR1#,2#199005-199009

sub96135-51400

main90467-15022i2TZFE..TCR1#,2#199409-199912

main96135-41400i2TZFE..TCR1#,2#199009-199409

16268PIPE, WATER BY-PASS, NO.1

main16268-76010i2TZFE..TCR1#,2#199005-199110

sub16268-76011

main16268-76011i2TZFE..TCR1#,2#199110-199608

main16268-76070i2TZFE..TCR1#,2#199608-199912

16268AHOSE(FOR WATER BY-PASS PIPE)

main17342-76010i2TZFE..TCR1#,2#199005-199912

H=120

16268BCLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)

main96135-41100i2TZFE..TCR1#,2#199005-199912

sub96135-51100

16268DHOSE(FOR WATER BY-PASS PIPE)

main17343-76010i2TZFE..TCR1#,2#199005-199912

16268ECLAMP, HOSE(FOR WATER BY-PASS PIPE)

main96135-41300i2TZFE..TCR1#,2#199005-199912

sub96135-51300

16361FAN

main16361-76050i2TZFE..TCR1#,2#..W199005-199112

sub16361-76060

main16361-76060i2TZFE..TCR1#,2#199010-199912

16381BAR, FAN BELT ADJUSTING

main16381-76030i2TZFE..TCR1#,2#199005-199108

main16381-76040i2TZFE..TCR1#,2#..ARL,W199108-199912

main16381-76060i2TZFE..TCR11..ARL199508-199707

DUAL AIR CONDITIONER OR DUAL AIR CON & UNLEADED FUEL SPEC

main16381-76060i2TZFE..TCR10..ARL,GEN,V199508-199707

main16381-76060i2TZFE..TCR11..ARL199508-199707

W(AIR CONDITIONER)

main16381-76061i2TZFE..TCR1#,2#199707-199912

W(AIR CONDITIONER)

16385SLIDER, FAN BELT ADJUSTING

main16385-76010i2TZFE..TCR1#,2#199005-199108

main16385-76020i2TZFE..TCR1#,2#..W199108-199912

main16385-76030i2TZFE..TCR1#,2#..W199508-199912

W(AIR CONDITIONER)

main16385-76030i2TZFE..TCR1#,2#..W199508-199912

DUAL AIR CONDITIONER OR DUAL AIR CON & UNLEADED FUEL SPEC

main16385-76030i2TZFE..TCR10..LHD..ATM199508-199912

16400RADIATOR ASSY

main16400-76061i2TZFE..TCR1#,2#..ATM199005-199108

sub16400-76081

main16400-76062i2TZFE..TCR1#,21..ATM..(DX,GL)199108-199608

main16400-76071i2TZFE..TCR1#,2#..MTM..W199005-199108

sub16400-76061

main16400-76072i2TZFE..TCR1#,2#..MTM..W199108-199608

sub16400-76062

main16400-76082i2TZFE..TCR11..ARL199308-199608

UNLEADED GASOLINE SPEC

main16400-76082i2TZFE..TCR10..V199408-199608

main16400-76082i2TZFE..TCR10..GEN199308-199608

LEADED GASOLINE SPEC

main16400-76091i2TZFE..TCR1#,2#..MTM..ARL199005-199108

sub16400-76081

main16400-76092i2TZFE..TCR11..RHD..MTM199308-199608

LEADED GASOLINE SPEC

sub16400-76082

main16400-76092i2TZFE..TCR1#..MTM..ARL199108-199608

sub16400-76082

main16400-76150i2TZFE..TCR1#..ATM..08S199608-199912

sub16400-76170

main16400-76160i2TZFE..TCR1#,2#..MTM..W199608-199912

main16400-76170i2TZFE..TCR10..GEN199608-199912

UNLEADED GASOLINE SPEC

main16400-76170i2TZFE..TCR10..V199608-199912

BRAZIL SPEC

main16400-76170i2TZFE..TCR10..V199608-199912

LEADED GASOLINE SPEC

main16400-76180i2TZFE..TCR10..MTM..ARL199608-199912

LEADED GASOLINE SPEC

sub16400-76170

16401CAP SUB-ASSY, RADIATOR

main16401-76020i2TZFE..TCR1#,2#199005-199402

sub16401-76021

main16401-76021i2TZFE..TCR1#,2#199402-199912

16470TANK ASSY, RADIATOR RESERVE

main16470-76020i2TZFE..TCR1#,2#199005-199109

sub16470-76021

main16470-76021i2TZFE..TCR1#,2#199109-199310

sub16480-76011

sub16401-76020

16472HOSE, BREATHER

main85338-76020i2TZFE..TCR1#,2#199005-199601

main85338-89102i2TZFE..TCR1#,2#..LHD199005-199302

main90445-12078i2TZFE..TCR1#,2#199601-199912

L=600(*H,L=150)

16482TANK SUB-ASSY, RADIATOR RESERVE

main16480-76011i2TZFE..TCR1#,2#199005-199601

main16480-76012i2TZFE..TCR1#,2#199601-199801

sub16480-76013

main16480-76013i2TZFE..TCR1#,2#199801-199912

16533SUPPORT, RADIATOR, UPPER

main16505-76010i2TZFE..TCR1#,2#199005-199007

sub16505-76011

main16505-76011i2TZFE..TCR1#,2#199308-199912

LH

main16505-76011i2TZFE..TCR1#,2#199007-199308

main16505-76040i2TZFE..TCR1#,2#199308-199912

RH

16571CHOSE, RADIATOR, NO.1

main16571-76030i2TZFE..TCR1#,2#199005-199202

main16571-76031i2TZFE..TCR1#,2#199202-199912

16571DCLIP, RADIATOR HOSE, NO.1

main90466-41001i2TZFE..TCR1#,2#199612-199912

ENGINE SIDE

sub90467-41002

main90467-41001i2TZFE..TCR1#,2#199005-199608

ENGINE SIDE

main90467-41002i2TZFE..TCR1#,2#199612-199912

PIPE SIDE

sub90466-41008

main90467-41009i2TZFE..TCR1#,2#199608-199612

ENGINE SIDE

sub90467-41002

main90467-42001i2TZFE..TCR1#,2#199005-199612

PIPE SIDE

sub90467-41002

16572DHOSE, RADIATOR, NO.2

main16572-76020i2TZFE..TCR1#,2#199005-199202

sub16572-76021

main16572-76021i2TZFE..TCR1#,2#199202-199401

sub16572-76022

main16572-76022i2TZFE..TCR1#,2#199401-199912

16572ECLIP, RADIATOR HOSE, NO.2

main90466-41001i2TZFE..TCR1#,2#199612-199912

RADIATOR SIDE

sub90467-41002

main90467-41001i2TZFE..TCR1#,2#199308-199608

RADIATOR SIDE

main90467-41002i2TZFE..TCR1#,2#199612-199912

PIPE SIDE

sub90466-41008

main90467-41009i2TZFE..TCR1#,2#199608-199612

RADIATOR SIDE

sub90467-41002

main90467-42001i2TZFE..TCR1#,2#199308-199612

PIPE SIDE

sub90467-41002

main90467-42001i2TZFE..TCR1#,2#199005-199308

sub90467-41002

16573BHOSE, RADIATOR, NO.3

main16573-76020i2TZFE..TCR1#,2#199005-199401

main16573-76021i2TZFE..TCR1#,2#199401-199702

sub16573-76022

main16573-76022i2TZFE..TCR1#,2#199702-199912

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90466-41001i2TZFE..TCR1#,2#199612-199912

PIPE SIDE

sub90467-41002

main90467-41001i2TZFE..TCR1#,2#199112-199608

RADIATOR SIDE

main90467-41007i2TZFE..TCR1#,2#199612-199912

RADIATOR SIDE

sub90467-41002

main90467-41009i2TZFE..TCR1#,2#199608-199612

RADIATOR SIDE

sub90467-41002

main90467-42001i2TZFE..TCR1#,2#199112-199612

PIPE SIDE

sub90467-41002

main90467-42001i2TZFE..TCR1#,2#199005-199112

sub90467-41002

16574HOSE, RADIATOR, NO.4

main16574-76010i2TZFE..TCR1#,2#199005-199202

main16574-76011i2TZFE..TCR1#,2#199202-199912

16574ACLIP, RADIATOR HOSE, NO.4

main90466-41001i2TZFE..TCR1#,2#199612-199912

ENGINE SIDE

sub90467-41002

main90467-41001i2TZFE..TCR1#,2#199005-199308

ENGINE SIDE

main90467-41002i2TZFE..TCR1#,2#199612-199912

PIPE SIDE

sub90466-41008

main90467-42001i2TZFE..TCR1#,2#199308-199612

sub90467-41002

main90467-42001i2TZFE..TCR1#,2#199005-199308

PIPE SIDE

sub90467-41002

16577PIPE, RADIATOR, NO.7

main16577-76050i2TZFE..TCR1#,2#199005-199202

main16577-76051i2TZFE..TCR1#,2#199202-199401

sub16577-76052

main16577-76052i2TZFE..TCR1#,2#199401-199608

main16577-76070i2TZFE..TCR1#,2#199608-199912

16611BRACKET, RADIATOR RESERVE TANK

main16611-76010i2TZFE..TCR1#,2#199005-199601

main16611-76011i2TZFE..TCR1#,2#199601-199912

16701SHROUD SUB-ASSY, FAN

main16711-76081i2TZFE..TCR1#,2#199005-199202

main16711-76090i2TZFE..TCR1#,2#199202-199608

main16711-76110i2TZFE..TCR1#,2#199608-199801

main16711-76111i2TZFE..TCR1#,2#..ARL,GEN,W199801-199912

main16711-76120i2TZFE..TCR10..V199702-199801

main16711-76121i2TZFE..TCR10..V199801-199912

sub16711-76120

16712SHROUD, FAN, NO.2

main16712-76030i2TZFE..TCR1#,2#199005-199202

main16712-76040i2TZFE..TCR1#,2#199202-199801

sub16712-76041

main16712-76041i2TZFE..TCR1#,2#199801-199912

16908HOUSING SUB-ASSY, EQUIPMENT DRIVE

main16908-76012i2TZFE..TCR1#,2#199005-199912

16982INSULATOR, EQUIPMENT DRIVE HOUSING, NO.1

main16982-76011i2TZFE..TCR1#,2#199005-199912

RH

main16982-76020i2TZFE..TCR1#,2#199005-199912

LH

16983INSULATOR, EQUIPMENT DRIVE HOUSING, NO.2

main16983-76011i2TZFE..TCR1#,2#199005-199110

sub16983-76012

main16983-76012i2TZFE..TCR1#,2#199110-199912

16984STAY, EQUIPMENT DRIVE HOUSING, NO.1

main16984-76010i2TZFE..TCR1#,2#199005-199912

16985STAY, EQUIPMENT DRIVE HOUSING, NO.2

main16985-76011i2TZFE..TCR1#,2#199005-199912

16986STAY, EQUIPMENT DRIVE HOUSING, NO.3

main16986-76011i2TZFE..TCR1#,2#199005-199007

sub16986-76012

main16986-76012i2TZFE..TCR1#,2#199007-199912

main16986-76050i2TZFE..TCR1#..ARL,V199707-199912

16987STAY, EQUIPMENT DRIVE HOUSING, NO.4

main16987-76010i2TZFE..TCR1#,2#199005-199912

16988STAY, EQUIPMENT DRIVE HOUSING, NO.5

main16988-76010i2TZFE..TCR1#,2#199005-199912

1734176010HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-76010

1734476010HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main17344-76010

1781061010FILTER ASSY, AIR

main17810-61010

9011908344

main90119-08344

9015960008

main90159-60008

9017906080

main90179-06080

9017908040

main90179-08040

9017910015

main90179-10015

9017910033

main90179-10033

9017910114

main90179-10114

9020110180

main90201-10180

9020110320

main90201-10320

9044516041

main90445-16041

9044516042

main90445-16042

9044716002

main90447-16002

9046400299

main90464-00299

9046400311

main90464-00311

9046400503

main90464-00503

9046400584

main90464-00584

9046400609

main90464-00609

9046400613

main90464-00613

9046715022

main90467-15022

9048025025

main90480-25025

9048040007

main90480-40007

9161160816

main91611-60816

9162140614

main91621-40614

9164180814

main91641-80814

9164180816

main91641-80816

9164280820

main91642-80820

9165140814

main91651-40814

9165140816

main91651-40816

9165140818

main91651-40818

9165160820

main91651-60820

9613541100

main96135-41100

9613541300

main96135-41300

79 parts on this diagram · 5 diagrams in section
