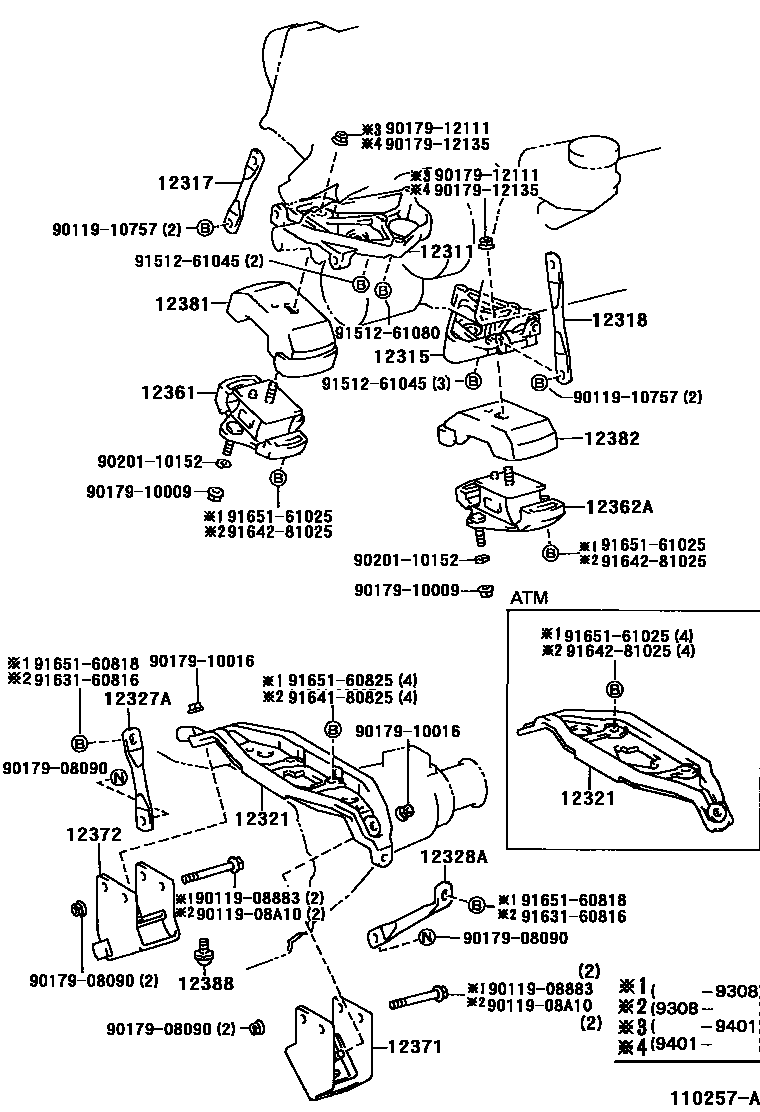

MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-76040i2TZFE..TCR1#,2#199005-199604

sub12311-76041

main12311-76041i2TZFE..TCR1#,2#199604-199912

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-76040i2TZFE..TCR1#,2#199005-199604

main12315-76041i2TZFE..TCR1#,2#199604-199608

main12315-76050i2TZFE..TCR1#,2#199608-199912

12317STAY, ENGINE MOUNTING, RH

main12317-76010i2TZFE..TCR1#,2#199005-199912

12318STAY, ENGINE MOUNTING, LH

main12318-76010i2TZFE..TCR1#,2#199005-199912

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-76040i2TZFE..TCR1#,2#..ATM199005-199912

main12321-76050i2TZFE..TCR1#,2#..MTM199005-199912

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-76010i2TZFE..TCR1#,2#..MTM199005-199912

12328ASTAY, ENGINE MOUNTING, NO.2 LH

main12328-76010i2TZFE..TCR1#,2#..MTM199005-199912

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-76040i2TZFE..TCR1#,2#199005-199307

sub12361-76041

main12361-76041i2TZFE..TCR1#,2#199307-199508

sub12361-76042

main12361-76042i2TZFE..TCR1#,2#199508-199604

main12361-76043i2TZFE..TCR1#,2#199604-199912

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12362-76010i2TZFE..TCR1#,2#199005-199307

sub12362-76011

main12362-76011i2TZFE..TCR1#,2#199307-199508

sub12362-76012

main12362-76012i2TZFE..TCR1#,2#199508-199604

main12362-76013i2TZFE..TCR1#,2#199604-199912

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-76040i2TZFE..TCR1#,2#199005-199310

sub12371-76041

main12371-76041i2TZFE..TCR1#,2#199310-199604

main12371-76042i2TZFE..TCR1#,2#199604-199705

sub12371-76043

main12371-76043i2TZFE..TCR1#,2#199705-199912

12372INSULATOR, ENGINE MOUNTING, REAR NO.2

main12372-76010i2TZFE..TCR1#,2#199005-199310

sub12372-76011

main12372-76011i2TZFE..TCR1#,2#199310-199604

main12372-76012i2TZFE..TCR1#,2#199604-199705

sub12372-76013

main12372-76013i2TZFE..TCR1#,2#199705-199912

12381STABILIZER, ENGINE MOUNTING

main12381-76020i2TZFE..TCR1#,2#199005-199604

main12381-76022i2TZFE..TCR1#,2#199604-199912

12382STABILIZER, ENGINE MOUNTING, LH

main12381-76022i2TZFE..TCR1#,2#199604-199912

main12382-76010i2TZFE..TCR1#,2#199005-199604

12388STOPPER, ENGINE MOUNTING BRACKET, REAR

main12388-76010i2TZFE..TCR1#,2#199005-199912

9011908883

main90119-08883

9011908A10

main90119-08A10

9011910757

main90119-10757

9017908090

main90179-08090

9017910009

main90179-10009

9017910016

main90179-10016

9017912111

main90179-12111

9017912135

main90179-12135

9020110152

main90201-10152

9151261045

main91512-61045

9151261080

main91512-61080

9163160816

main91631-60816

9164180825

main91641-80825

9164281025

main91642-81025

9165160818

main91651-60818

9165160825

main91651-60825

9165161025

main91651-61025

31 parts on this diagram · 1 diagram in section
