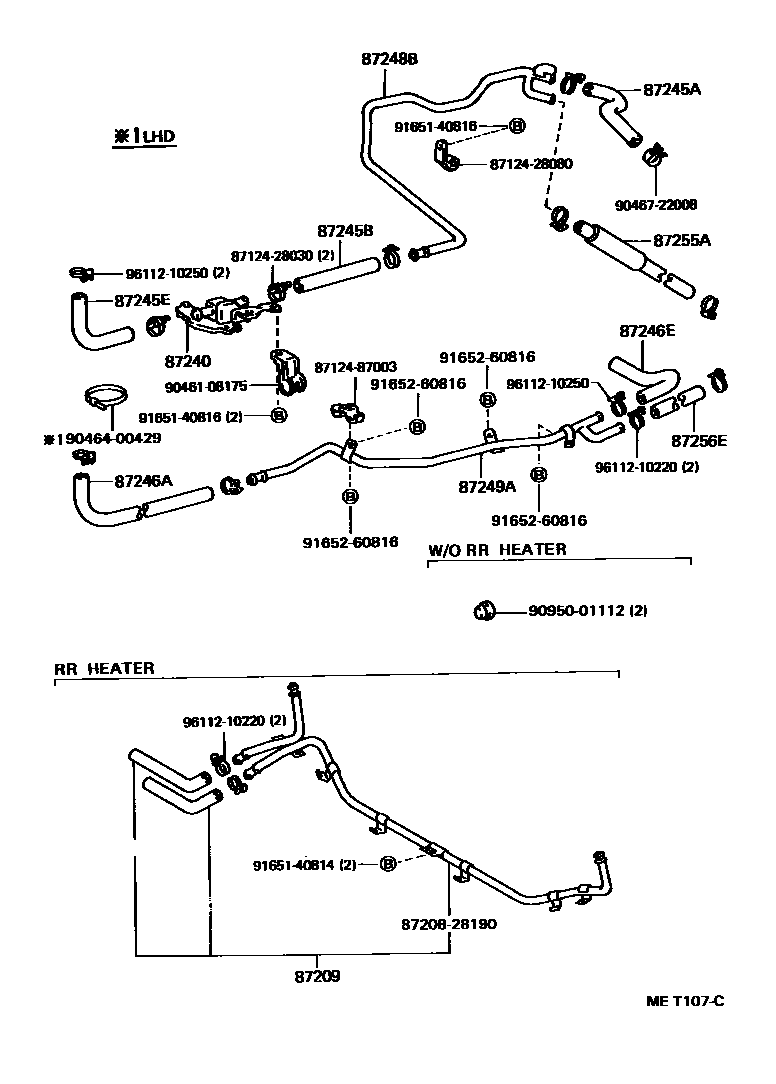

HEATING & AIR CONDITIONING - WATER PIPING
87209HOSE SUB-ASSY, WATER
W(HEAVY REAR HEATER)
87240VALVE ASSY, HEATER WATER
87245AHOSE, HEATER WATER, INLET A
87245BHOSE, HEATER WATER, INLET B
L=500
87245EHOSE, HEATER WATER, INLET E
87246AHOSE, HEATER WATER, OUTLET A
87246EHOSE, HEATER WATER, OUTLET E
87248BPIPE, HEATER WATER INLET, B
87249APIPE, HEATER WATER OUTLET, A
87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
L=430
L=200
87256EHOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
L=300
L=200
8712428030CLAMP, HEATER
main87124-28030
8712428080CLAMP, HEATER
main87124-28080
8712487003CLAMP, HEATER
main87124-87003
8720828190PIPE SUB-ASSY, HEATER WATER
main87208-28190
9046108175
main90461-08175
9046400429
main90464-00429
9046722008
main90467-22008
9095001112
main90950-01112
9165140814
main91651-40814
9165140816
main91651-40816
9165260816
main91652-60816
9611210220
main96112-10220
9611210250
main96112-10250
24 parts on this diagram · 3 diagrams in section
