MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87801-28080-B0iCR2#,KR2#,YR2#199201-199501

GRAY,TRIM1#

sub87801-28090

main87801-28090-B1iCR2#,KR2#,YR2#199201-199501

NON-GLARE TYPE,LIGHT GRAY,TRIM1#

87810BBULB, INNER REAR VIEW MIRROR LAMP

main99132-12100iCR2#,KR2#,YR2#199201-199501

12V 10W

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81241-87001iCR2#,KR2#,YR2#199201-199501

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-28140iCR27,KR27..RHD199201-199501

main87910-28150iCR2#,KR2#,YR2#..LHD199201-199501

87917BMIRROR, OUTER REAR VIEW, RH

main87917-87008iCR2#,KR2#,YR2#199201-199501

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-28140iCR27,KR27..RHD199201-199501

main87940-28150iCR2#,KR2#,YR2#..LHD199201-199501

87947BMIRROR, OUTER REAR VIEW, LH

main87947-87017iCR2#,KR2#,YR2#199201-199501

87950MIRROR ASSY, OUTER UNDER REAR VIEW

main87950-28020iCR2#,KR2#,YR2#199201-199501

9015950194

main90159-50194

9331116016

main93311-16016

9338116012

main93381-16012

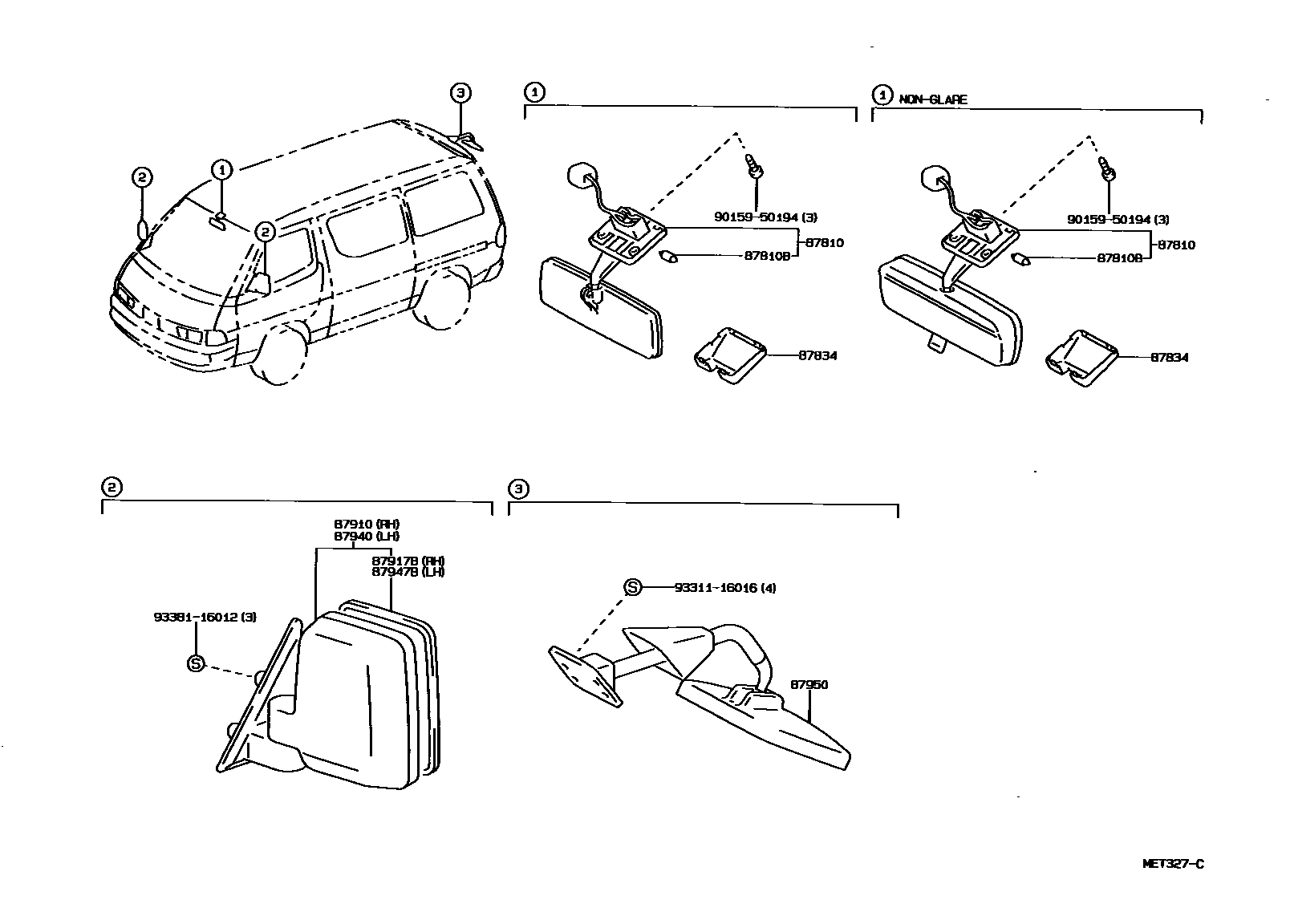

11 parts on this diagram · 1 diagram in section
