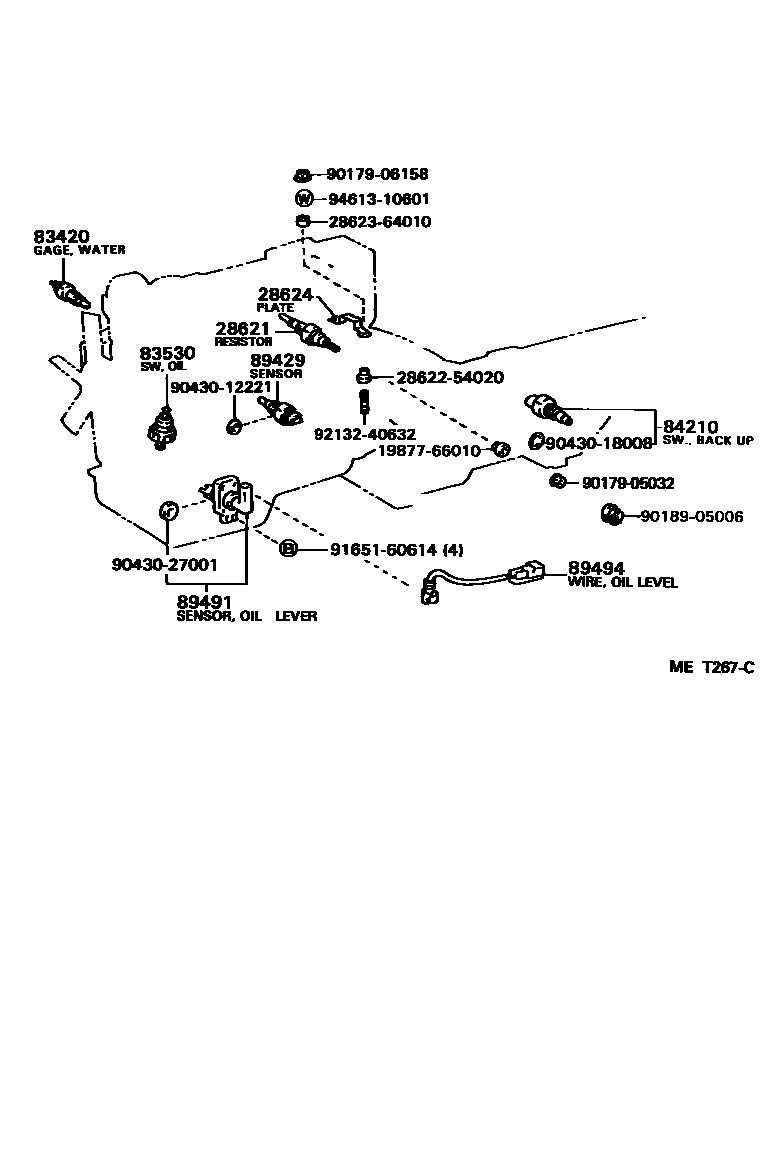

28621RESISTOR, GLOW PLUG

main28621-64011i2C..CR2#199201-199501

28624PLATE, CURRENT SENSOR

main28624-64010i2C..CR2#199201-199501

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iKR2#,YR2#199309-199501

NIPPONDENSO

main83420-20020iCR2#,KR2#,YR2#199201-199309

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYR2#199201-199309

sub83530-28030

main83530-14060iKR2#199309-199405

sub83530-30090

main83530-14070iYR2#199309-199501

sub83530-28010

main83530-30060iCR2#199201-199309

sub83530-60030

main83530-30080iKR2#199201-199309

sub83530-60040

main83530-30100iCR2#199309-199501

sub83530-60010

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iCR2#,KR2#,YR2#199201-199501

sub84210-52050

89429SENSOR, OIL TEMPERATURE

main89422-20010iCR2#199201-199501

89491SENSOR, ENGINE OIL LEVEL

main89491-27010iKR2#199201-199405

main89491-27020iYR2#199201-199501

main89491-27031iCR2#199201-199501

89494WIRE, ENGINE OIL LEVEL SENSOR

main89494-28020iCR2#199201-199204

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862364010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-64010

9017905032

main90179-05032

9017906158

main90179-06158

9018905006

main90189-05006

9043012221

main90430-12221

9043018008

main90430-18008

9043027001

main90430-27001

9165160614

main91651-60614

9213240632

main92132-40632

9461310601

main94613-10601

20 parts on this diagram · 12 diagrams in section
