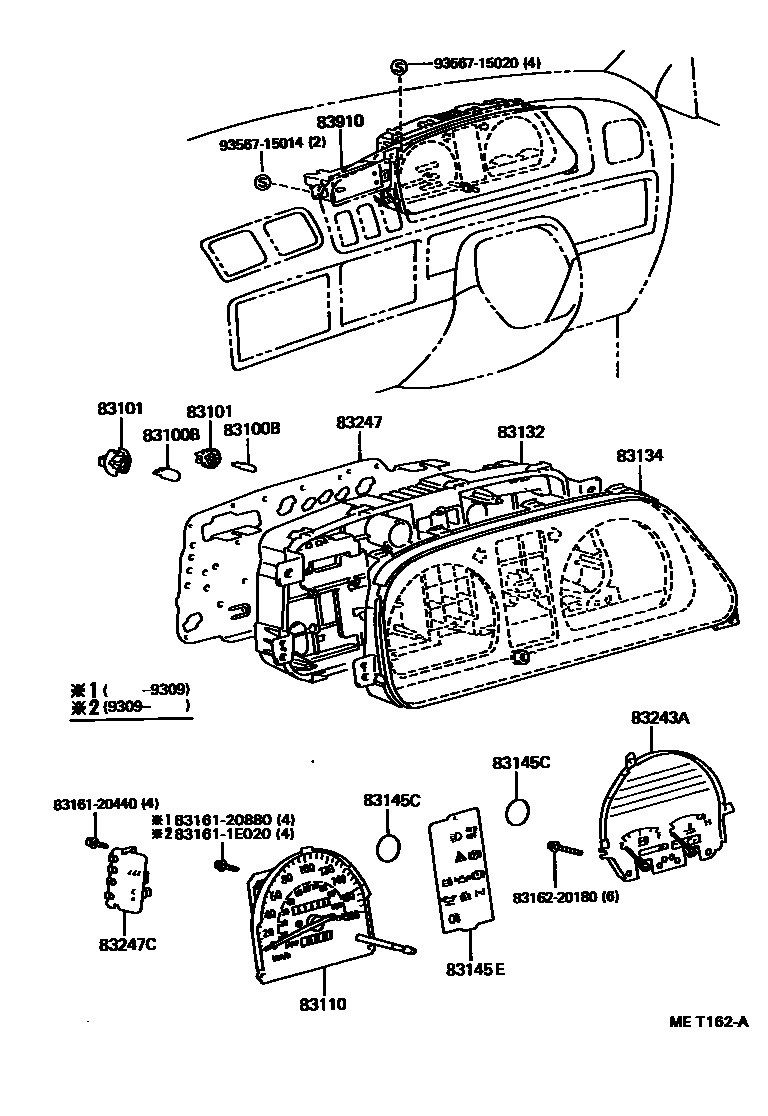

METER

0001 1 0002 1 0003 1

83100BBULB, COMBINATION METER, NO.1

main83109-24030×4iCR2#,YR2#..LHD199408-199501

12V3.4W W(GREEN CAP)

main83109-95J00×2iCR2#,KR2#,YR2#..LHD199201-199408

14V 3.78W

main83119-28040×4iCR2#,KR2#,YR2#..LHD199201-199408

14V3.8W,W(GREEN CAP)

main83119-2J020×5iCR27,KR27..RHD199201-199408

14V3.8W,W(GREEN CAP)

main83119-36060×5iCR27..RHD199408-199501

12V 3.0W GREEN CAP,12V 3.0W GREEN CAP

main83119-36080×2iCR27,KR27..RHD199201-199408

12V 2.0W

main90981-11018×10iCR27..RHD199201-199408

12V 1.2W W/O SOCKET

main99132-12034×8iCR2#,YR2#..LHD199408-199501

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040×6iCR2#..LHD199201-199501

12V 1.4W BULB

main83101-20040×8iCR2#,YR2#..LHD199408-199501

12V 3.4W,24V 3W BULB

main83101-20070×4iCR27,KR27..RHD199201-199408

12V 3.4W BULB,GREEN

83110SPEEDOMETER ASSY

main83110-28250iCR2#..LHD199201-199408

main83110-28251iCR2#..LHD199408-199501

main83110-28260iKR2#,YR2#..LHD199201-199408

main83110-28261iYR2#199408-199501

main83110-28851iCR27..RHD199201-199408

main83110-28852iCR27..RHD199408-199501

main83110-28881iKR27..RHD199201-199408

83132CASE, COMBINATION METER

main83132-28060iCR27..RHD199408-199501

main83132-28200iCR2#,KR2#,YR2#..LHD199201-199501

83134COVER, COMBINATION METER, NO.1

main83134-28020iCR27..RHD199201-199408

main83134-28080iKR27..RHD199201-199408

main83134-28140iCR2#,KR2#,YR2#..LHD199201-199501

83145CLENS, METER, NO.4

main83145-89320×2iCR2#,KR2#,YR2#199201-199408

83145ELENS, METER, NO.6

main83145-28060iCR27..RHD199201-199501

main83145-28080iKR27..RHD199201-199408

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-28060iCR27,KR27..RHD199201-199408

main83243-28080iCR2#,KR2#,YR2#..LHD199201-199408

main83243-2J060iCR2#,YR2#..LHD199408-199501

83247PLATE, METER CIRCUIT

main83149-2J180iCR2#..LHD199408-199411

main83149-2J200iYR2#199408-199411

main83149-2J460iCR27..RHD199408-199501

main83247-28240iKR27..RHD199201-199408

main83247-28280iCR2#..LHD199201-199408

main83247-28300iKR2#,YR2#..LHD199201-199408

main83247-28720iCR27..RHD199201-199408

main83247-28800iCR2#..LHD199411-199501

main83247-28840iYR2#199411-199501

83247CPLATE, MATER CIRCUIT, NO.3

main83247-95N29iCR2#,YR2#..LHD199408-199501

83910CLOCK ASSY

main83910-20420iCR2#,KR2#,YR2#..LHD199201-199501

main83910-28060iCR27,KR27..RHD199201-199501

831611E020CASE, COMBINATION METER MIRROR, NO.1

main83161-1E020

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

8316120880CASE, COMBINATION METER MIRROR, NO.1

main83161-20880

8316220180CASE, COMBINATION METER MIRROR, NO.2

main83162-20180

9356715014

main93567-15014

9356715020

main93567-15020

17 parts on this diagram · 3 diagrams in section
