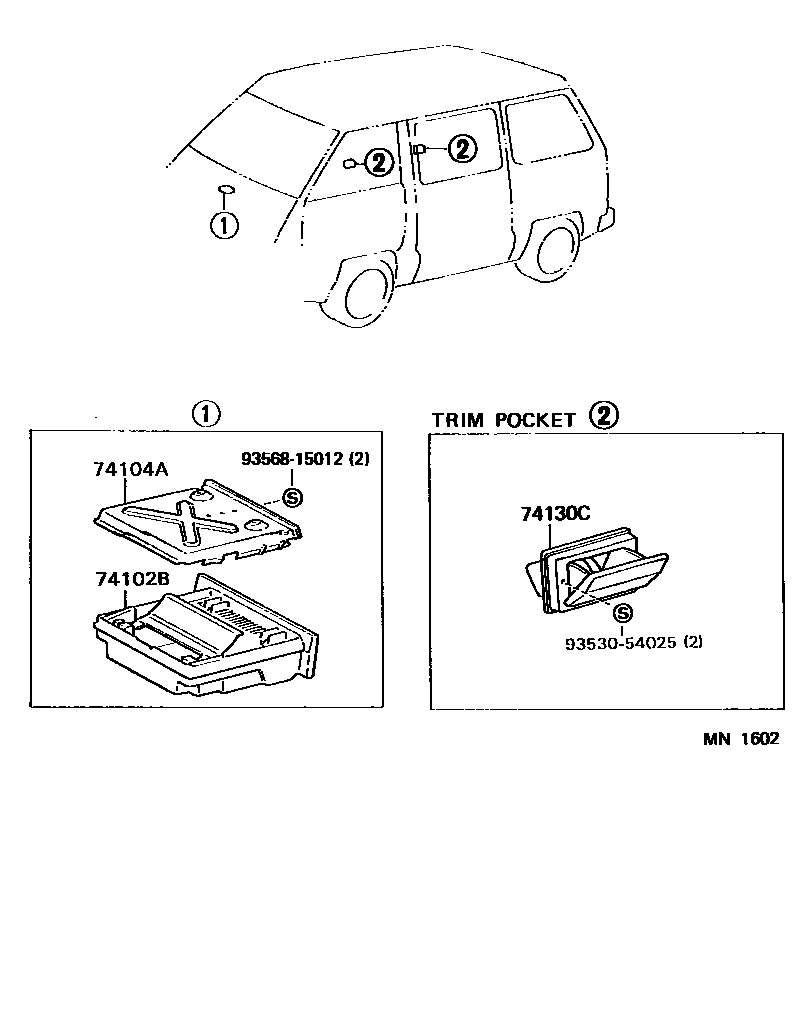

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-28030-B0iCR27,KR27..RHD199201-199501

GRAY,TRIM1#

main74102-87001-B0iCR27,KR27,YR29..LHD199201-199501

GRAY,TRIM1#

sub74102-87001

main74102-87001-B1iCR21,KR21,YR22199201-199501

BLACK,TRIM1#

sub74102-87001

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-28040iCR27,KR27..RHD199201-199501

sub74104-28060

main74104-87008iCR2#,KR2#,YR2#..LHD199201-199501

74130CRECEPTACLE ASSY, REAR ASH

main74130-14020-39iCR27,KR27,YR29..05S199201-199308

GRAY,TRIM1#

sub74130-14020

sub74130-95401

main74130-14020-B1iCR27,KR27,YR29..05S199308-199501

BLUISH GRAY,TRIM1#

sub74130-14020

sub74130-95401

9353054025

main93530-54025

9356815012

main93568-15012

5 parts on this diagram · 1 diagram in section
