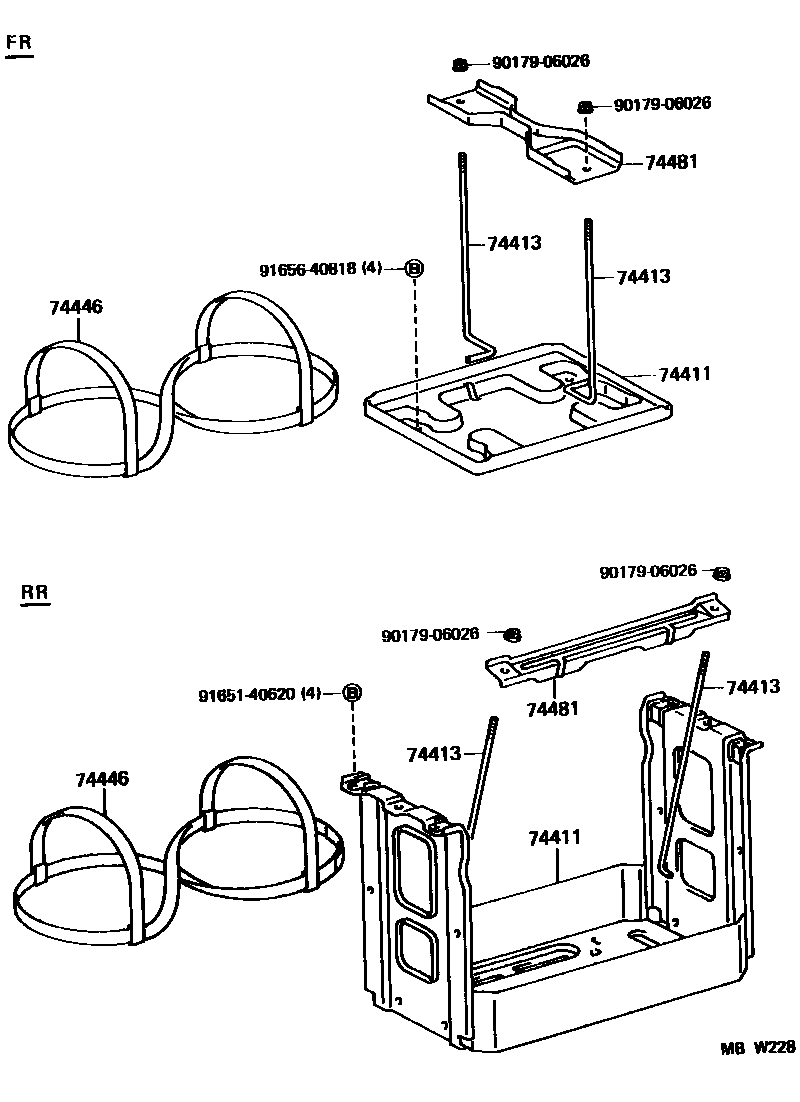

BATTERY CARRIER

74411CARRIER, BATTERY

main74403-28010iCR21,KR21,YR22199201-199501

main74411-28050iCR27,KR27,YR29199201-199501

main74411-87008iCR27199201-199501

COLD SPEC

74413BOLT, BATTERY CLAMP

main74451-87002iCR21,KR21,YR22199201-199501

main74451-87003iCR27,KR27,YR29199201-199501

74446BAND, BATTERY

main74446-95702iCR2#,YR22199201-199501

74481CLAMP, BATTERY HOLD DOWN

main74481-87005iCR21,YR22199201-199501

main74481-87006iCR27,KR27,YR29199201-199501

main74481-87007iKR21199201-199405

9017906026

main90179-06026

9165140620

main91651-40620

9165640818

main91656-40818

7 parts on this diagram · 1 diagram in section
