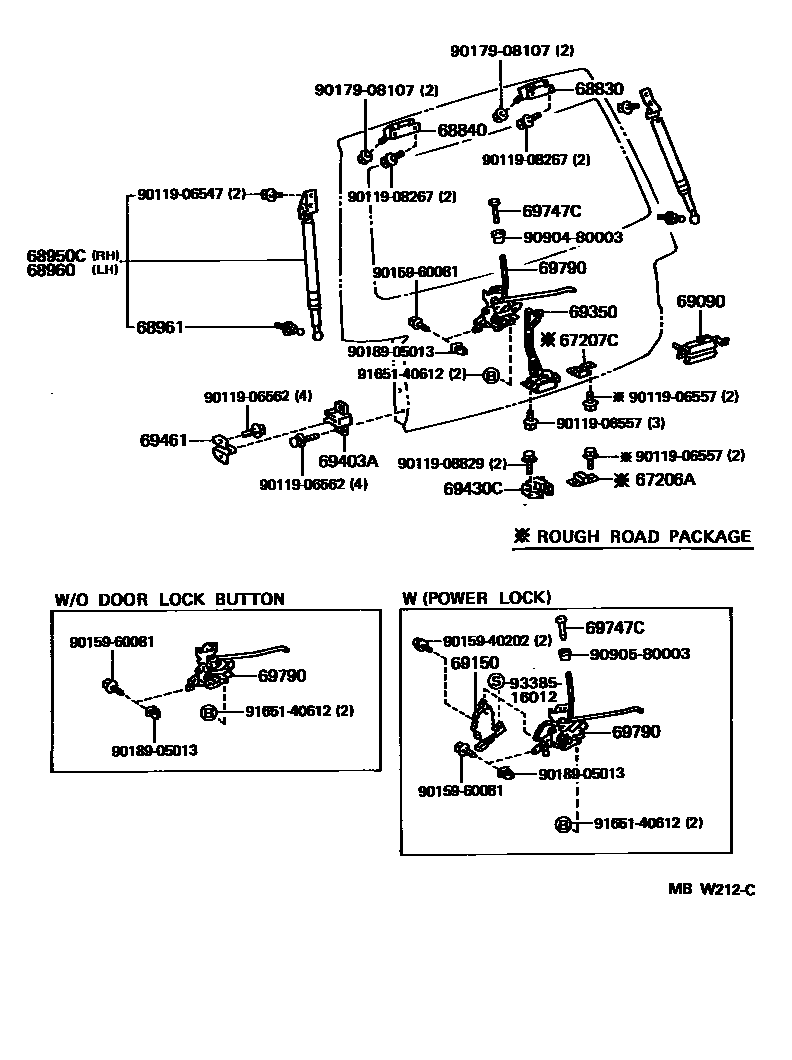

BACK DOOR LOCK & HINGE
67206ABRACKET SUB-ASSY, BACK DOOR STOPPER
67207CSTOPPER SUB-ASSY, BACK DOOR
68830HINGE ASSY, BACK DOOR, RH
68840HINGE ASSY, BACK DOOR, LH
W(REAR WIPER)
68950CSTAY ASSY, BACK DOOR, RH
W(REAR WIPER)
68960STAY ASSY, BACK DOOR, LH
W(REAR WIPER)
68961BOLT, BACK DOOR STAY
69090HANDLE ASSY, BACK DOOR, OUTSIDE
69150ACTUATOR ASSY, BACK DOOR LOCK
69350LOCK ASSY, BACK DOOR
69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
sub69403-26050
69430CSTRIKER ASSY, BACK DOOR LOCK
69461STOPPER, BACK DOOR SIDE MALE, RH
sub69461-26030
69747CBUTTON, DOOR LOCKING(FOR BACK DOOR)
69790CONTROL ASSY, BACK DOOR LOCK
W(POWER LOCK)
W(POWER LOCK & EMERGENCY LEVER)
W(POWER LOCK)
W(EMERGENCY LEVER)
9011906547
main90119-06547
9011906557
main90119-06557
9011906562
main90119-06562
9011908267
main90119-08267
9011908829
main90119-08829
9015940202
main90159-40202
9015960081
main90159-60081
9017908107
main90179-08107
9018905013
main90189-05013
9090480003
main90904-80003
9090580003
main90905-80003
9165140612
main91651-40612
9338516012
main93385-16012
28 parts on this diagram · 1 diagram in section
