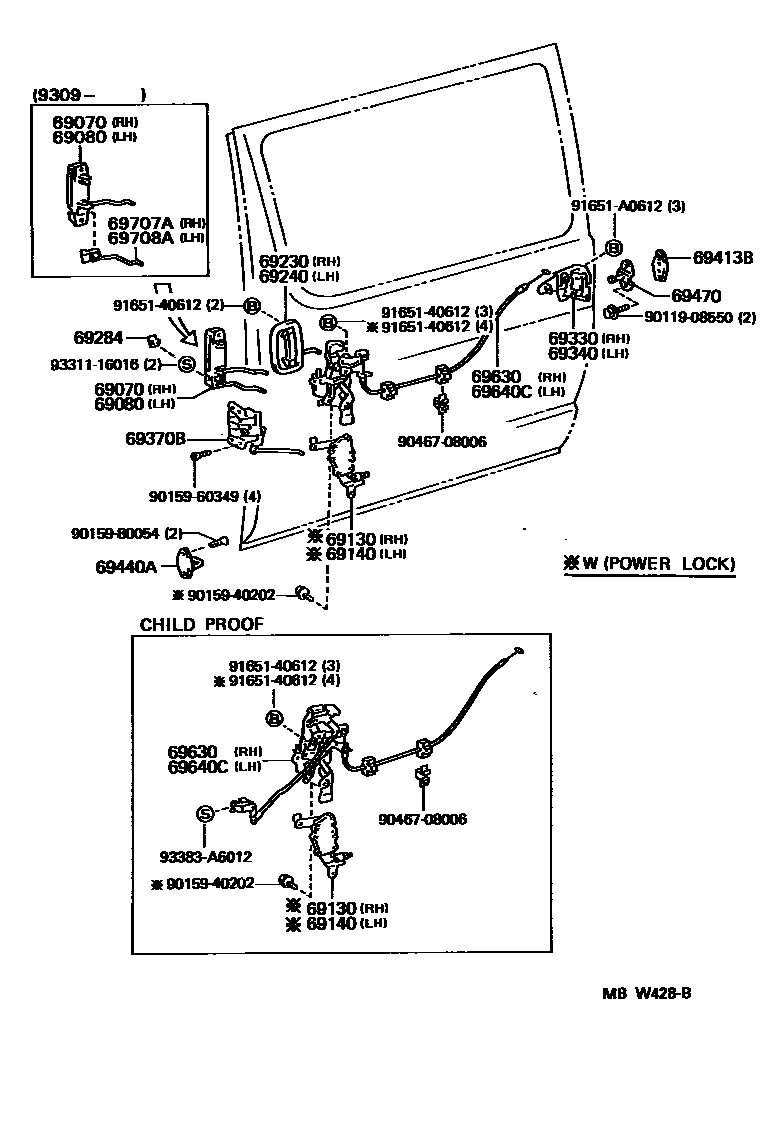

REAR DOOR LOCK & HANDLE

69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH

main69070-28030-B0iCR21,KR21,YR22199201-199501

GRAY,TRIM1#

main69070-28040-B0iCR27,KR27,YR29..LHD199309-199501

GRAY,TRIM1#

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69080-28010-B0iCR27,KR27..5D;CR27,KR27..RHD199201-199309

GRAY,TRIM1#

sub69080-28010

main69080-28020-B0iCR27,KR27..5D;CR27,KR27..RHD199309-199501

GRAY,TRIM1#

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-28010iCR2#,KR2#,YR2#..LHD199201-199501

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-28010iCR27,KR27..5D199201-199501

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-28030iCR2#,KR2#,YR2#..LHD199201-199501

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-28010iCR27,KR27..5D;CR27,KR27..RHD199201-199501

69284PLUG, SLIDE DOOR INSIDE HANDLE

main69284-95J00-03iCR2#,KR2#,YR2#..LHD..4D199201-199308

GRAY,TRIM1#

sub69284-95J00

main69284-95J00-B0iCR27,KR27..5D199308-199501

BLUISH GRAY,TRIM1#

sub69284-95J00

69330LOCK ASSY, REAR DOOR, RH

main69330-87001iCR2#,KR2#,YR2#..LHD199201-199501

69340LOCK ASSY, REAR DOOR, LH

main69340-87001iCR27,KR27..5D;CR27,KR27..RHD199201-199501

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-28030iCR2#,KR2#,YR2#..05S,08S199201-199501

69413BSHIM, DOOR LOCK STRIKER

main69413-28020iCR2#,KR2#,YR2#199201-199501

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28010iCR2#,YR2#..05S,08S199408-199501

sub69440-46010

main69440-28020iCR2#,KR2#,YR2#..05S,08S199201-199408

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-28030iCR27,KR27..5D199201-199501

sub69470-46010

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-28040iCR27,KR27,YR29..LHD199201-199501

main69630-28060iCR21,KR21,YR22199201-199501

main69650-28020iCR27,KR27,YR29..LHD199201-199501

W(POWER LOCK)

main69650-28030iCR21,KR21,YR22199201-199501

W(POWER LOCK)

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-28040iCR27,KR27..5D;CR27,KR27..RHD199201-199501

main69660-28010iCR27,KR27..5D199201-199501

W(POWER LOCK)

69707AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, RH

main69707-28010-B0iCR27,KR27,YR29..LHD199309-199501

GRAY,TRIM1#

69708AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH

main69708-28010-B0iCR27,KR27..5D;CR27,KR27..RHD199309-199501

GRAY,TRIM1#

9011908550

main90119-08550

9015940202

main90159-40202

9015960349

main90159-60349

9015980054

main90159-80054

9046708006

main90467-08006

9165140612

main91651-40612

91651A0612

main91651-A0612

9331116016

main93311-16016

93383A6012

main93383-A6012

26 parts on this diagram · 1 diagram in section
