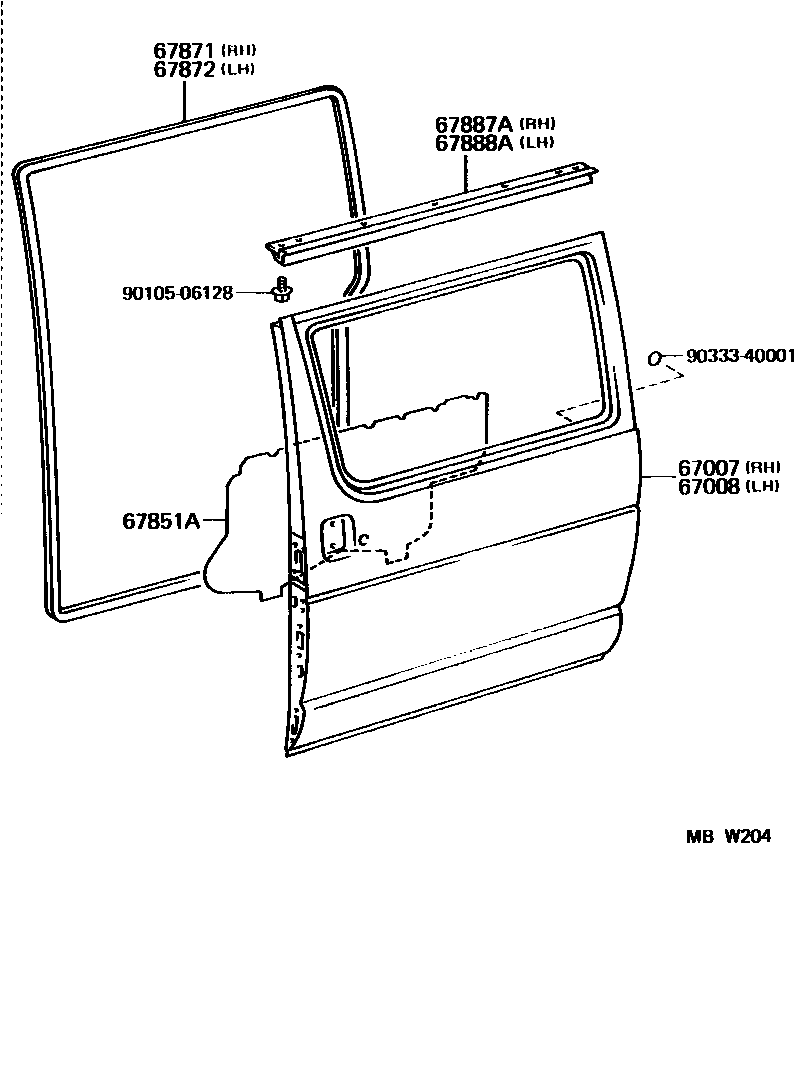

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67007PANEL SUB-ASSY, SLIDE DOOR, RH

main67003-28150iCR27,KR27,YR29..05S¥64,600199201-199501

main67003-28160iCR21,KR21,YR22¥64,600199201-199501

main67003-28180iCR27,KR27,YR29..LHD..02S¥64,600199201-199501

main67003-28190iCR27,KR27,YR29..05S¥64,600199201-199501

W/O(REAR NO.1 SEAT)

main67003-28200iCR27,KR27,YR29..05S¥64,600199201-199501

W(POWER LOCK) & W/O(REAR NO.1 SEAT)

main67003-28210iCR21,KR21,YR22¥64,800199201-199501

W(POWER LOCK)

main67003-28220iCR27,KR27,YR29..05S¥64,600199201-199501

W(POWER LOCK)

main67003-28230iCR27,KR27,YR29..LHD..02S¥64,600199201-199501

W(POWER LOCK)

67008PANEL SUB-ASSY, SLIDE DOOR, LH

main67004-28060iCR27,KR27..5D;CR27,KR27..RHD¥64,600199201-199501

main67004-28120iCR27,KR27..5D¥64,600199201-199501

W(POWER LOCK)

67851ACOVER, SLIDE DOOR SERVICE HOLE, NO.1

main67851-28010iCR27,KR27..5D¥1,090199201-199501

67871WEATHERSTRIP, REAR DOOR, RH

main67871-28010iCR2#,KR2#,YR2#..LHD¥16,300199201-199501

67872WEATHERSTRIP, REAR DOOR, LH

main67872-28020iCR27,KR27..5D;CR27,KR27..RHD¥16,300199201-199501

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-28010iCR2#,KR2#,YR2#..LHD¥4,570199201-199312

sub67887-28020¥4,600

main67887-28020iCR2#,KR2#,YR2#..LHD¥4,600199312-199501

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67887-28010iCR27,KR27..5D;CR27,KR27..RHD¥4,570199201-199312

sub67887-28020¥4,600

main67887-28020iCR27,KR27..5D;CR27,KR27..RHD¥4,600199312-199501

9010506128

main90105-06128¥120

9033340001

main90333-40001¥100

9 parts on this diagram · 3 diagrams in section
