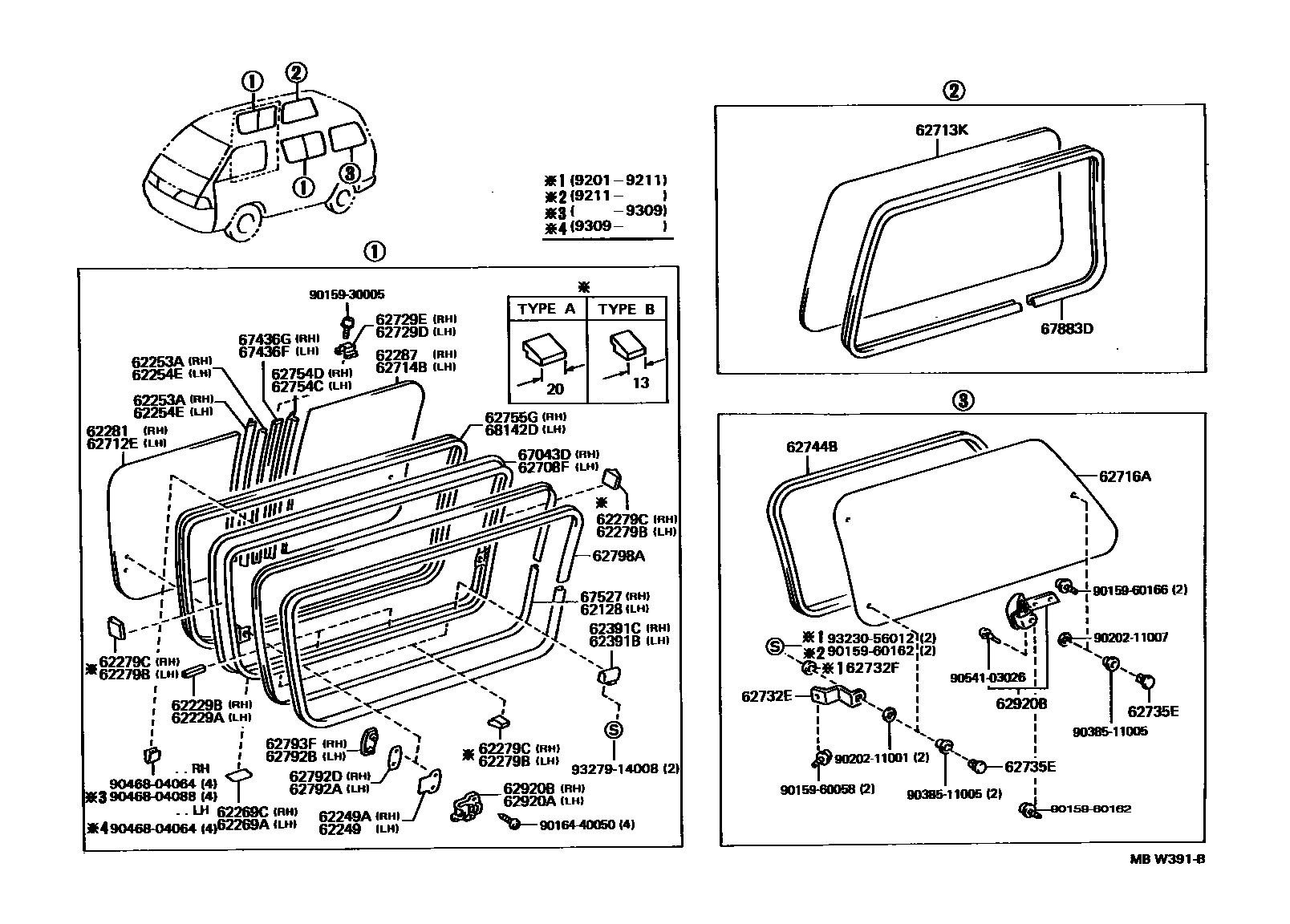

SIDE WINDOW
62128PACKING, SIDE FRONT WINDOW, LH
62229APACKING, SIDE WINDOW, NO.2
62229BPACKING, SIDE WINDOW, NO.3
14 X 14 X 20
7 X 8 X 50
62249PLATE, SIDE WINDOW, RH
LH
62249APLATE, SIDE WINDOW, LH
RH
62253AWEATHERSTRIP, SIDE WINDOW, CENTER RH
62254EWEATHERSTRIP, SIDE WINDOW, CENTER NO.2
62269AFILM, SIDE WINDOW FRAME, LH
62269CFILM, SIDE WINDOW FRAME, RH
62279BSPACER, SIDE WINDOW FRAME, LH
TYPE A
TYPE B
62279CSPACER, SIDE WINDOW FRAME, RH
TYPE A
TYPE B
62281GLASS, SLIDE DOOR WINDOW, FRONT RH
*TEM,T=3.5
*TEM,T=3.5,BLUE
62287GLASS, SLIDE DOOR WINDOW, REAR RH
*TEM,T=3.5
*TEM,T=3.5,BLUE
62391BSTOPPER, SIDE WINDOW, NO.1 FRONT LH
62391CSTOPPER, SIDE WINDOW, NO.1 RH
62708FFRAME SUB-ASSY, SIDE FRONT WINDOW, LH
62712EGLASS, SIDE FRONT WINDOW, LH
*TEM,T=3.5
*TEM,T=3.5,BLUE
62713KGLASS, SIDE WINDOW, REAR RH
*TEM,T=3.5,BLUE
62714BGLASS, SIDE WINDOW, REAR LH
*TEM,T=3.5
*TEM,T=3.5,BLUE
62716AGLASS, SIDE REAR WINDOW, LH
*TEM,T=4.0
*TEM,T=4.0,BLUE
62729DPAD, REAR WINDOW CENTER SASH, LH
62729EPAD, REAR WINDOW CENTER SASH, RH
62732EHINGE, QUARTER WINDOW, LH
62732FPLATE, REAR SIDE WINDOW HINGE FINISH, LH
62735ERETAINER, SIDE REAR WINDOW HINGE, LH
62744BWEATHERSTRIP, SIDE REAR WINDOW, LH
62754CWEATHERSTRIP, SIDE FRONT WINDOW, CENTER NO.2 LH
62754DWEATHERSTRIP, SIDE FRONT WINDOW, CENTER NO.2 RH
62755GRUN, SLIDE DOOR WINDOW, RH
62792APACKING, SIDE WINDOW LOCK, RH
LH
62792BRETAINER, SIDE WINDOW LOCK
LH
62792DPACKING, SIDE WINDOW LOCK
RH
62793FRETAINER, SLIDE DOOR WINDOW LOCK, RH
RH
62798AMOULDING, SIDE WINDOW, FRONT
SIDE FRONT
SIDE FRONT
SLIDE DOOR
62920ALOCK ASSY, SIDE FRONT WINDOW, LH
BOTH SIDE SLIDE
LH
62920BLOCK ASSY, SIDE REAR WINDOW, LH
BOTH SIDE SLIDE WINDOW,RH
LIGHT GRAY,TRIM1#
67043DFRAME SUB-ASSY, SLIDE DOOR WINDOW, RH
67436FFRAME, SIDE FRONT WINDOW, FRONT CENTER LH
67436GFRAME, SIDE FRONT WINDOW, CENTER RH
67527PACKING, SLIDE DOOR WINDOW, RH
67883DWEATHERSTRIP, QUARTER WINDOW, REAR
W(STEEL FIT WINDOW)
68142DRUN, SIDE FRONT WINDOW, LH
9015930005
main90159-30005
9015960058
main90159-60058
9015960162
main90159-60162
9015960166
main90159-60166
9016440050
main90164-40050
9020211001
main90202-11001
9020211007
main90202-11007
9038511005
main90385-11005
9046804064
main90468-04064
9046804088
main90468-04088
9054103026
main90541-03026
9323056012
main93230-56012
9327914008
main93279-14008
55 parts on this diagram · 2 diagrams in section
