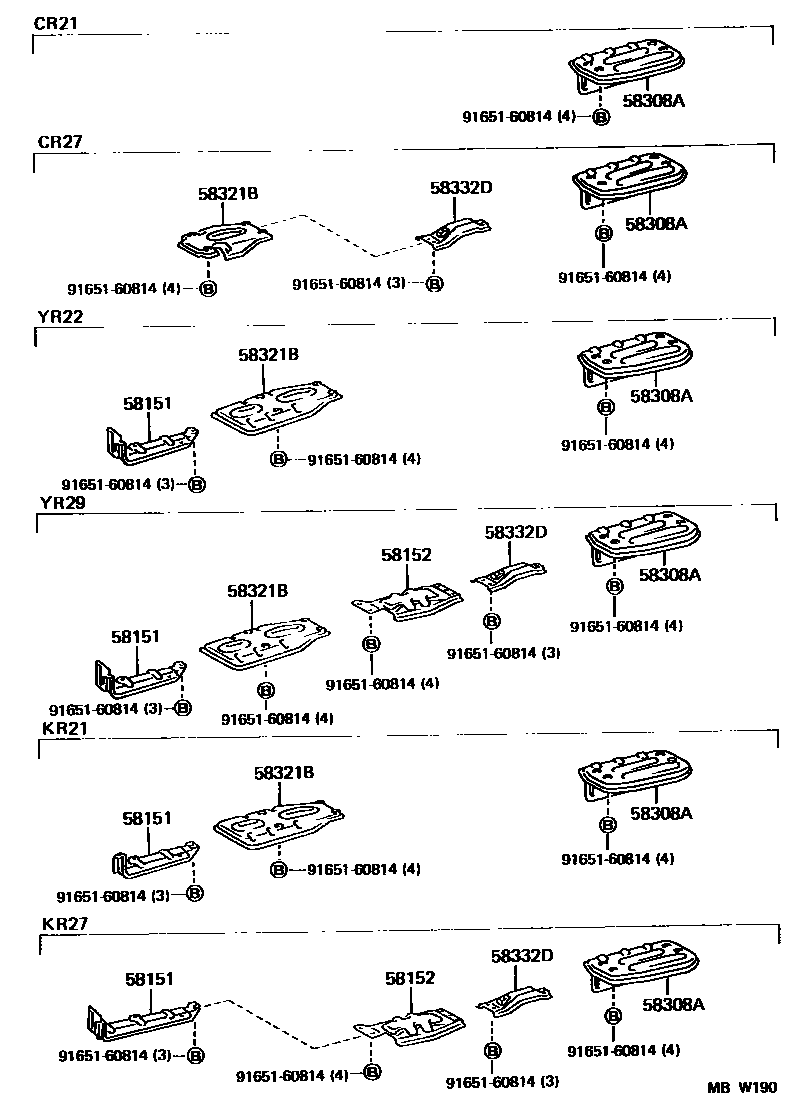

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-28020iYR2#199201-199501

main58151-28030iKR2#..LHD199201-199405

main58151-87001iKR27..RHD199201-199405

58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2

main58152-28010iKR27,YR29199201-199501

58308APANEL SUB-ASSY, HEAT PROOF

main58308-87002iCR2#,KR2#,YR2#199201-199501

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-87004iKR21,YR2#199201-199501

main58321-87006iCR27199201-199501

sub58321-28020

58332DINSULATOR, REAR FLOOR HEAT, NO.3

main58332-87001iCR27,KR27,YR29199201-199501

9165160814

main91651-60814

6 parts on this diagram · 1 diagram in section
