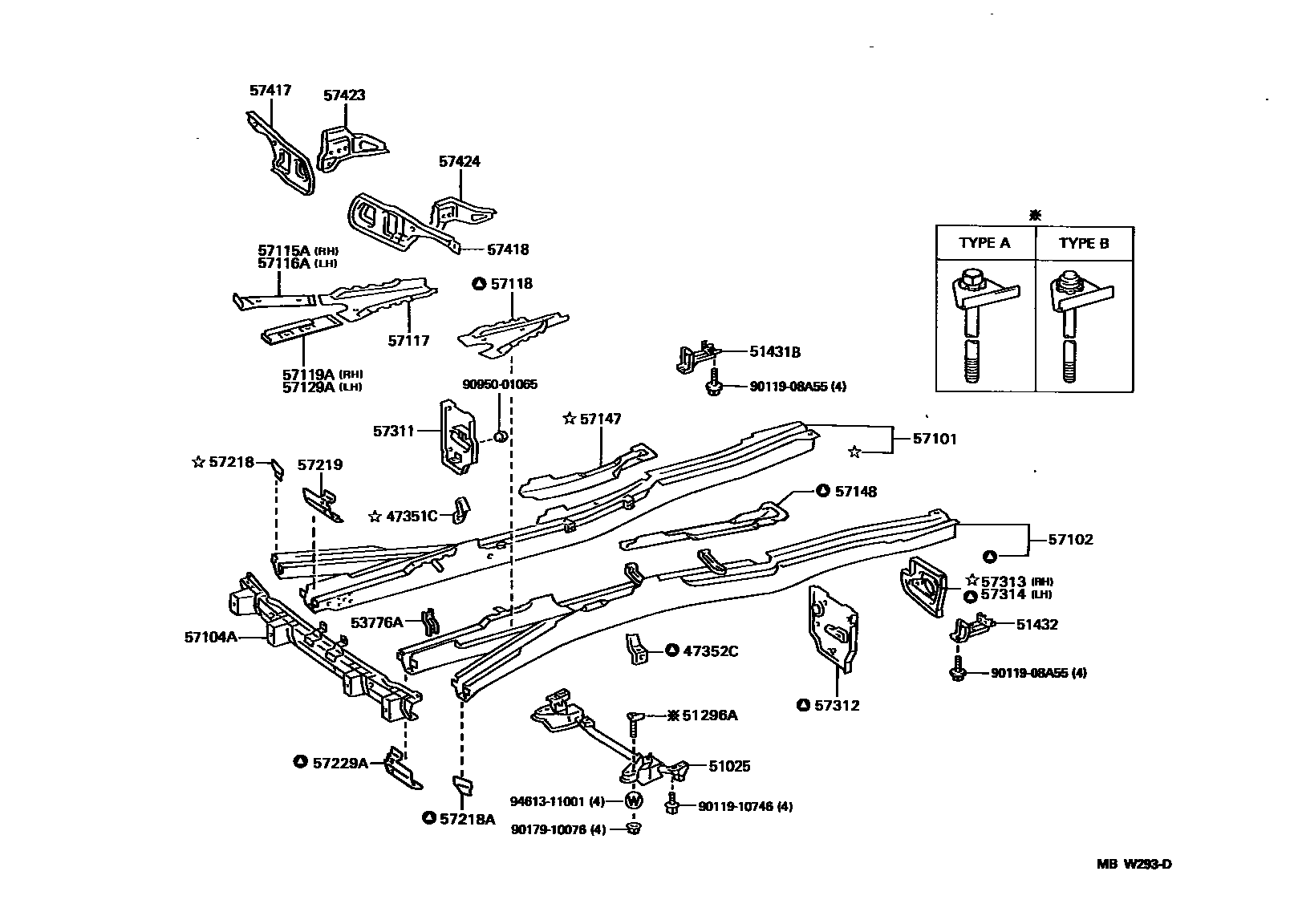

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

47351CBRACKET, FLEXIBLE HOSE, RH

main47351-87003iCR21¥1,000199201-199202

CANARY SPEC

main47351-87003iCR27,KR27,YR29¥1,000199201-199501

47352CBRACKET, FLEXIBLE HOSE, LH

main47352-87003iCR21¥1,000199201-199202

CANARY SPEC

main47352-87003iCR27,KR27,YR29¥1,000199201-199501

51025MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

main51025-28030iKR27..RHD¥37,800199201-199405

main51025-28070iKR2#..LHD¥38,100199201-199405

main51025-28100iYR2#¥38,200199201-199501

main51025-28110iCR2#¥37,600199201-199501

main51025-28120iCR21¥38,100199201-199501

AUSTRIA SPEC OR BELGIUM SPEC OR FRANCE SPEC

51296ABOLT, ENGINE FRONT SUPPORT MEMBER

main51296-87001iCR2#,KR2#,YR2#¥1,070199201-199501

TYPE A

main51296-87002iCR2#,KR2#,YR2#¥1,220199201-199501

TYPE B

51431BBRACKET, ENGINE REAR MOUNTING

main51431-87002iCR2#,YR2#;KR27..RHD¥4,700199201-199501

51432BRACKET, ENGINE REAR MOUNTING, LH

main51432-87002iCR2#,YR2#;KR27..RHD¥4,700199201-199501

53776ABRACKET, COOL AIR INTAKE DUCT MOUNT, NO.2

main53776-87001iKR2#,YR2#¥480199201-199501

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-28908iCR2#,KR2#,YR2#..LHD..4D¥116,000199201-199501

main57101-28915iKR27..RHD¥110,000199201-199405

main57101-28917iCR27,KR27..5D¥138,000199201-199501

main57101-28918iCR27..RHD¥139,000199201-199501

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-28903iKR27..LHD..4D;CR2#,KR21,YR2#..4D¥138,000199201-199501

main57102-28904iKR27..RHD¥114,000199201-199309

sub57102-28903¥138,000

main57102-28907iCR27,KR27..5D¥124,000199201-199501

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-28040iCR2#,KR2#,YR2#¥15,800199201-199501

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-87005iCR2#,KR2#,YR2#¥6,800199201-199501

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-87005iCR2#,KR2#,YR2#¥6,800199201-199501

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-28020iCR2#,KR2#,YR2#¥6,600199201-199501

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-28020iCR2#,KR2#,YR2#¥6,600199201-199501

57119APLATE, FRONT SIDE MEMBER, FRONT RH

main57119-87003iCR2#,KR2#,YR2#¥5,800199201-199501

57129APLATE, FRONT SIDE MEMBER, FRONT LH

main57129-87003iCR2#,KR2#,YR2#¥5,800199201-199501

57147PLATE, FRONT SIDE MEMBER, REAR RH

main57147-28010iCR2#,KR2#,YR2#¥4,910199201-199211

sub57147-28040¥4,920

main57147-28040iCR2#,KR2#,YR2#¥4,920199211-199501

57148PLATE, FRONT SIDE MEMBER, REAR LH

main57148-28010iCR2#,KR2#,YR2#¥4,830199201-199211

sub57148-28030¥4,850

main57148-28030iCR2#,KR2#,YR2#¥4,850199211-199501

57218GUSSET, FRONT SIDE MEMBER, NO.1

main57218-87001iCR2#,KR2#,YR2#¥1,120199201-199501

57218AGUSSET, FRONT SIDE MEMBER, NO.1 LH

main57218-87001iCR2#,KR2#,YR2#¥1,120199201-199501

57219GUSSET, FRONT SIDE MEMBER, NO.2

main57219-28020iCR2#,KR2#,YR2#¥2,370199201-199501

57229AGUSSET, FRONT SIDE MEMBER, NO.2 LH

main57229-28010iCR2#,KR2#,YR2#¥2,370199201-199501

57311OUTRIGGER, NO.1 RH

main57301-28010iCR21,KR21,YR22¥4,230199201-199501

main57301-28040iCR27,KR27,YR29..LHD¥6,400199201-199501

main57301-28050iCR27,KR27..RHD¥6,300199201-199203

main57301-28080iCR27,KR27..RHD¥6,400199203-199501

57312OUTRIGGER, NO.1 LH

main57302-28050iCR21,KR21,YR22¥5,200199201-199501

main57302-28060iCR27,KR27,YR29..LHD..4D¥4,130199203-199501

main57312-28010iCR27,KR27,YR29..LHD..4D199201-199203

sub57302-28060¥4,130

main57312-28050iCR27,KR27..5D;CR27,KR27..RHD¥4,910199201-199501

57313OUTRIGGER, NO.2 RH

main57313-87002iCR27,KR27..RHD¥4,730199201-199501

57314OUTRIGGER, NO.2 LH

main57314-28010iCR2#,KR2#,YR2#..LHD..4D¥3,610199201-199501

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-28020iCR2#,KR2#,YR2#¥2,590199201-199501

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-28020iCR2#,KR2#,YR2#¥2,530199201-199501

57423BRACKET, FRONT FLOOR REINFORCEMENT, RH

main57423-28020iCR2#,KR2#,YR2#¥2,210199201-199501

57424BRACKET, FRONT FLOOR REINFORCEMENT, LH

main57424-28020iCR2#,KR2#,YR2#¥2,320199201-199501

9011908A55

main90119-08A55¥130

9011910746

main90119-10746¥240

9017910076

main90179-10076¥200

9095001065

main90950-01065¥280

9461311001

main94613-11001¥120

35 parts on this diagram · 2 diagrams in section
