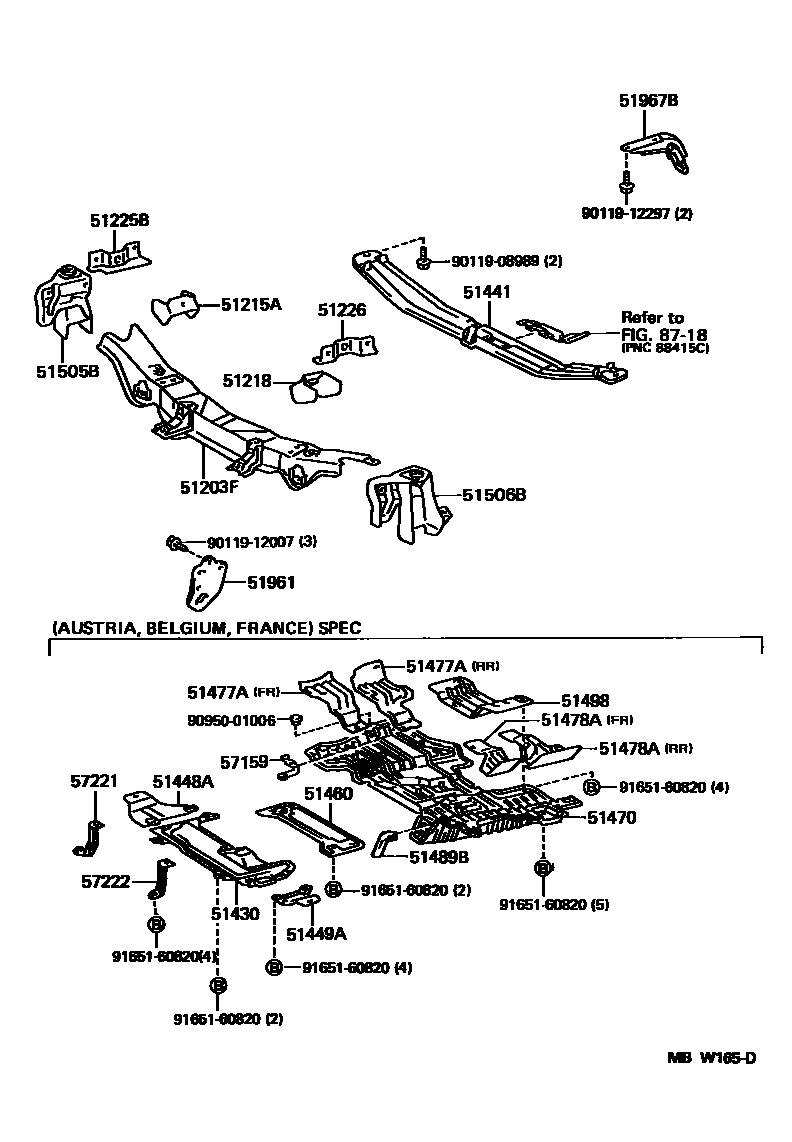

SUSPENSION CROSSMEMBER & UNDER COVER

51203FCROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51203-28170iCR27,KR27..RHD199201-199210

sub51203-28210

main51203-28190iCR2#,KR2#,YR2#..LHD199201-199401

sub51203-28230

main51203-28200iCR2#,YR2#..LHD199201-199401

W(POWER STEERING)

sub51203-28240

main51203-28210iCR27,KR27..RHD199210-199501

main51203-28210iCR27,KR27..RHD199201-199210

ROUGH ROAD PACKAGE

main51203-28220iCR27..RHD199201-199501

W(POWER STEERING)

main51203-28230iCR2#,KR2#,YR2#..LHD199201-199401

ROUGH ROAD PACKAGE

main51203-28230iCR2#,KR2#,YR2#..LHD199401-199501

main51203-28240iCR2#,YR2#..LHD199201-199401

W(POWER STEERING) & ROUGH ROAD PACKAGE

main51203-28240iCR2#,YR2#..LHD199401-199501

W(POWER STEERING)

51215AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51215-28010iCR2#,KR2#,YR2#199211-199501

main51215-87007iCR2#,KR2#,YR2#199201-199211

sub51215-28010

51218REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH

main51218-28020iCR2#,KR2#,YR2#199211-199501

main51218-87002iCR2#,KR2#,YR2#199201-199211

sub51218-28020

51225BBRACKET, FRONT SUSPENSION MEMBER, RH

main51225-28010iCR2#,KR2#,YR2#199201-199501

51226BRACKET, FRONT SUSPENSION MEMBER, LH

main51226-28010iCR2#,KR2#,YR2#199201-199501

51430COVER ASSY, ENGINE UNDER, CENTER

main51430-28010iCR21199201-199501

AUSTRIA OR BELGIUM OR FRANCE SPEC

51441COVER, ENGINE UNDER, NO.1

main51441-87002iCR2#,KR2#,YR2#199201-199501

51448ACOVER, ENGINE SIDE UNDER, RH

main51440-28040iCR21199201-199501

51449ACOVER, ENGINE SIDE UNDER, LH

main51450-28030iCR21199201-199501

51460PROTECTOR ASSY, OIL PAN UNDER

main51460-28040iCR21199201-199501

51470COVER ASSY, TRANSMISSION UNDER

main58206-28010iCR21199201-199501

51477ASILENCER, ENGINE UNDER COVER, RH

main51477-28030iCR21199201-199501

AUSTRIA SPEC OR BELGIUM SPEC OR FRANCE SPEC,FR

main51477-28050iCR21199201-199501

AUSTRIA SPEC OR BELGIUM SPEC OR FRANCE SPEC,RR

51478ASILENCER, ENGINE UNDER COVER, LH

main51478-28030iCR21199201-199501

AUSTRIA SPEC OR BELGIUM SPEC OR FRANCE SPEC,FR

main51478-28050iCR21199201-199501

AUSTRIA SPEC OR BELGIUM SPEC OR FRANCE SPEC,RR

51489BTRIM, ENGINE COVER, NO.3

main51489-28010iCR21199201-199501

AUSTRIA SPEC OR BELGIUM SPEC OR FRANCE SPEC

51498COVER, TRANSMISSION UNDER, REAR LH

main51498-28010iCR21199201-199501

51505BSUPPORT SUB-ASSY, UPPER CONTROL ARM, RH

main51505-28050iCR2#,KR2#,YR2#199201-199501

sub51505-28060

51506BSUPPORT SUB-ASSY, UPPER CONTROL ARM, LH

main51506-28050iCR2#,KR2#,YR2#199201-199501

sub51506-28060

51961HOOK, NO.1

main51963-87006iCR2#199201-199501

RH

main51980-28020iCR2#199201-199501

LH

51967BHOOK, TRANSPORT, REAR RH

main51095-28020iCR27,KR27,YR29199201-199501

57159REINFORCEMENT, ENGINE UNDER COVER MOUNTING

main57159-28010iCR21199201-199501

AUSTRIA SPEC OR BELGIUM SPEC OR FRANCE SPEC

57221BRACKET, FRONT SIDE MEMBER, RH

main57016-28060iCR21199201-199501

57222BRACKET, FRONT SIDE MEMBER, LH

main57017-28060iCR21199201-199501

8718

9011908989

main90119-08989

9011912007

main90119-12007

9011912297

main90119-12297

9095001006

main90950-01006

9165160820

main91651-60820

28 parts on this diagram · 1 diagram in section
