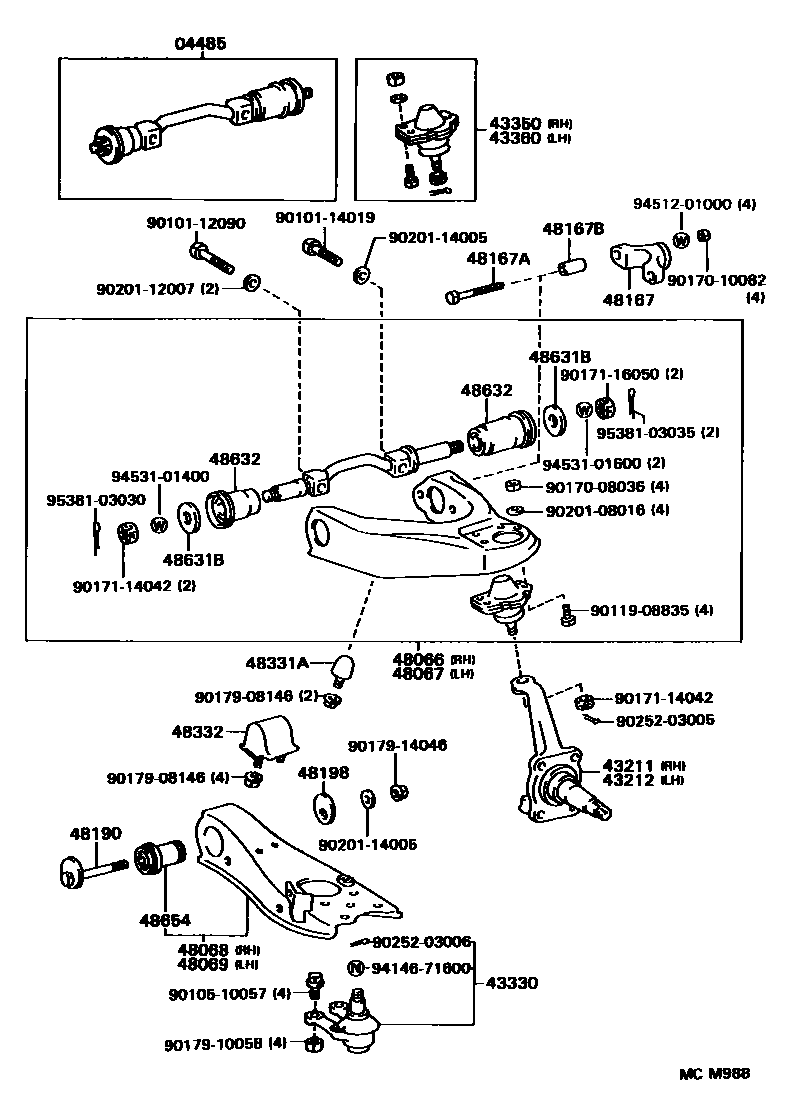

FRONT AXLE ARM & STEERING KNUCKLE
04485SHAFT KIT, UPPER SUSPENSION ARM
43211KNUCKLE, STEERING, RH
43212KNUCKLE, STEERING, LH
43330JOINT ASSY, LOWER BALL, FRONT
sub43330-29545
43350JOINT ASSY, FRONT UPPER BALL, RH
43360JOINT ASSY, FRONT UPPER BALL, LH
48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
48167ARM, TORQUE
48167ABOLT(FOR TORQUE ARM SETTING)
48167BTUBE(FOR TORQUE ARM SETTING BOLT)
48190CAM ASSY, CAMBER ADJUST
48198CAM, CAMBER ADJUST, NO.2
48331ABUMPER, FRONT SPRING, NO.1
48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)
RR
FR
RR
FR
48632BUSH, UPPER ARM
FR
FR
RR
RR
48654BUSH, LOWER ARM
9010112090
main90101-12090
9010114019
main90101-14019
9010510057
main90105-10057
9011908835
main90119-08835
9017008036
main90170-08036
9017010082
main90170-10082
9017114042
main90171-14042
9017116050
main90171-16050
9017908146
main90179-08146
9017910058
main90179-10058
9017914046
main90179-14046
9020108016
main90201-08016
9020112007
main90201-12007
9020114005
main90201-14005
9025203005
main90252-03005
9025203006
main90252-03006
9414671600
main94146-71600
9451201000
main94512-01000
9453101400
main94531-01400
9453101600
main94531-01600
9538103030
main95381-03030
9538103035
main95381-03035
42 parts on this diagram · 1 diagram in section
