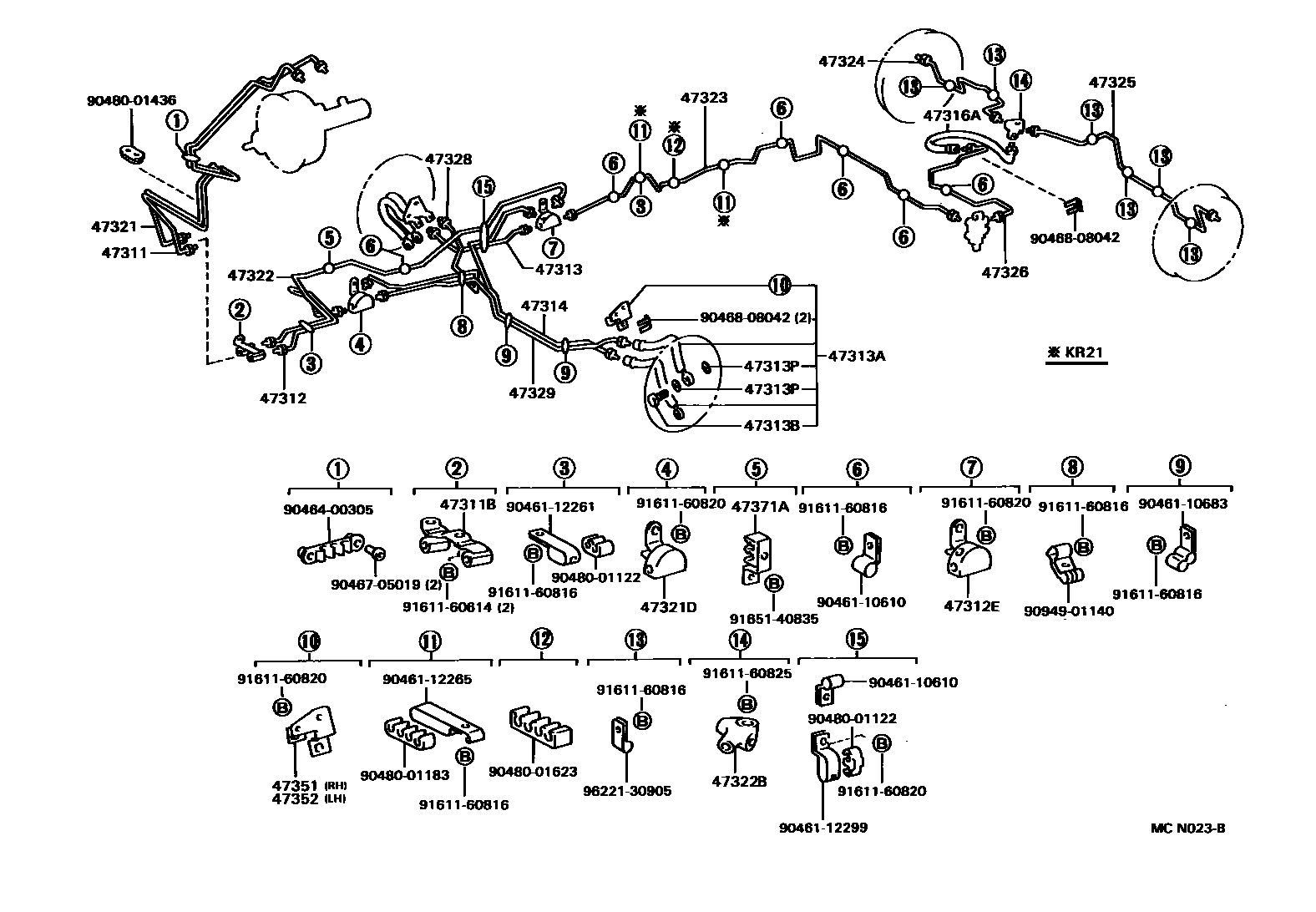

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

47311TUBE, FRONT BRAKE, NO.1

main47311-28350iCR2#,KR2#,YR2#..LHD199201-199501

main47311-28360iCR27,KR27..RHD199201-199501

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10097iCR2#,KR2#,YR2#199201-199501

47312TUBE, FRONT BRAKE, NO.2

main47312-28190iCR27,KR27,YR29199201-199501

main47312-28210iCR21,KR21,YR22199201-199501

main47312-28210iYR29199203-199501

SWITZERLAND SPEC

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90414-10014iCR2#,KR2#,YR2#199201-199501

47313TUBE, FRONT BRAKE, NO.3

main47313-28060iYR29199203-199501

SWITZERLAND SPEC

main47313-28060iCR21,KR21,YR22199201-199501

main47313-28110iCR27,KR27,YR29199201-199501

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main47330-28010iYR29199203-199501

SWITZERLAND SPEC,RH

main47330-28010iCR21,KR21,YR22199201-199501

RH

main47340-28010iYR29199203-199501

SWITZERLAND SPEC,LH

main47340-28010iCR21,KR21,YR22199201-199501

LH

main90947-02505iCR27,KR27,YR29199201-199501

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iCR21,KR21,YR22199201-199501

main90401-10015iYR29199203-199501

SWITZERLAND SPEC

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iCR21,KR21,YR22199201-199501

main90430-10074iYR29199203-199501

SWITZERLAND SPEC

47314TUBE, FRONT BRAKE, NO.4

main47314-28060iYR29199203-199501

SWITZERLAND SPEC

main47314-28060iCR21,KR21,YR22199201-199501

main47314-28120iCR27,KR27,YR29199201-199501

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02442iCR27,KR27,YR29199201-199501

sub90947-02576

main96940-33105iCR21,KR21,YR22199201-199501

47321TUBE, REAR BRAKE, NO.1

main47321-28350iCR2#,KR2#,YR2#..LHD199201-199501

main47321-28360iCR27,KR27..RHD199201-199501

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10063iCR27,KR27,YR29199304-199501

main90412-10133iCR27,KR27,YR29199201-199304

main90413-10183iYR29199203-199501

SWITZERLAND SPEC

main90413-10183iCR21,KR21,YR22199201-199501

47322TUBE, REAR BRAKE, NO.2

main47322-28080iCR21,KR21,YR22199201-199501

main47322-28080iYR29199203-199501

SWITZERLAND SPEC

main47322-28180iCR27,KR27,YR29199201-199501

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10098iCR27,KR27,YR29199201-199501

main90413-10130iCR21,KR21,YR22199201-199501

47323TUBE, REAR BRAKE, NO.3

main47323-28131iCR21,KR21,YR22199201-199501

main47323-28290iCR27,KR27,YR29199201-199501

main47323-28300iYR29199203-199501

SWITZERLAND SPEC

47324TUBE, REAR BRAKE, NO.4

main47324-28041iCR21,KR21199201-199501

main47324-28072iYR22199201-199501

main47324-28081iYR29199201-199501

main47324-28170iCR27,KR27199201-199501

47325TUBE, REAR BRAKE, NO.5

main47325-28060iCR21,KR21199201-199501

main47325-28091iYR22199201-199501

main47325-28101iYR29199201-199501

main47325-28170iCR27,KR27199201-199501

47326TUBE, REAR BRAKE, NO.6

main47326-28060iCR21,KR21,YR22199201-199501

main47326-28150iCR27,KR27,YR29199201-199501

47328TUBE, REAR BRAKE, NO.8

main47328-28010iCR21,KR21,YR22199201-199203

sub47328-28011

main47328-28011iCR21,KR21,YR22199203-199501

SWITZERLAND SPEC

47329TUBE, REAR BRAKE, NO.9

main47329-28010iCR21,KR21,YR22199201-199203

sub47329-28011

main47329-28011iCR21,KR21,YR22199203-199501

SWITZERLAND SPEC

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-28050iCR21,KR21,YR22199201-199203

sub47351-28051

main47351-28051iCR21,KR21,YR22199203-199501

SWITZERLAND SPEC

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-28050iCR21,KR21,YR22199201-199203

sub47352-28051

main47352-28051iCR21,KR21,YR22199203-199501

SWITZERLAND SPEC

47371ACLAMP, BRAKE TUBE, NO.1

main47371-28030iCR2#,KR2#,YR2#199201-199501

9046110610

main90461-10610

9046110683

main90461-10683

9046112261

main90461-12261

9046112265

main90461-12265

9046112299

main90461-12299

9046400305

main90464-00305

9046705019

main90467-05019

9046808042

main90468-08042

9048001122

main90480-01122

9048001183

main90480-01183

9048001436

main90480-01436

9048001623

main90480-01623

9094901140

main90949-01140

9161160614

main91611-60614

9161160816

main91611-60816

9161160820

main91611-60820

9161160825

main91611-60825

9165140835

main91651-40835

9622130905

main96221-30905

42 parts on this diagram · 4 diagrams in section
