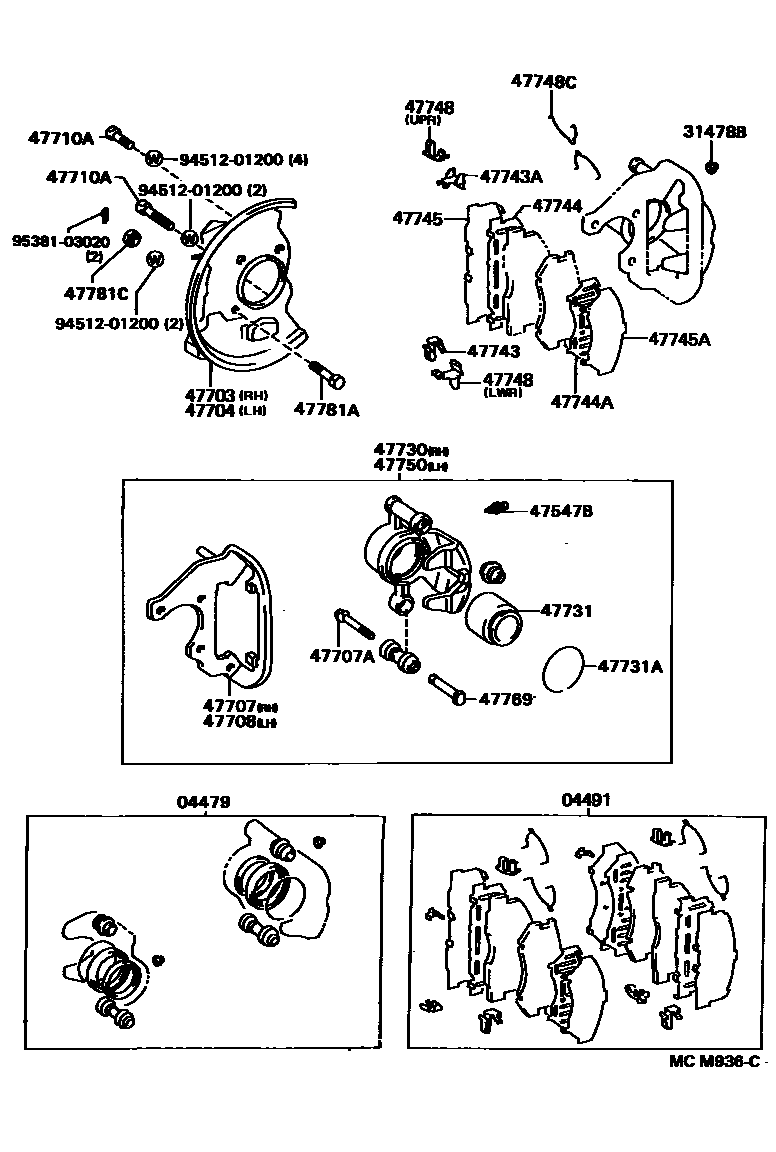

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-28050iCR27,KR27,YR29199201-199501

main04479-28080iCR21,KR21,YR22199201-199501

04491PAD KIT, DISC BRAKE, FRONT

main04491-28290iCR27,KR27,YR29199201-199309

main04491-28340iCR21,KR21,YR22199201-199309

main04491-28350iCR21,KR21,YR22199309-199501

SWITZERLAND SPEC

sub04491-28351

main04491-28370iCR27,KR27,YR29199309-199501

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iCR21,KR21,YR22199201-199501

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27040×2iCR21,KR21,YR22199201-199501

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-28050iCR27,KR27,YR29199201-199408

main47703-28051iCR27,YR29199408-199501

main47703-28060iCR21,KR21,YR22199201-199408

main47703-28061iCR21,YR22199408-199501

SWITZERLAND SPEC

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-28050iCR27,KR27,YR29199201-199408

main47704-28051iCR27,YR29199408-199501

main47704-28060iCR21,KR21,YR22199201-199408

main47704-28061iCR21,YR22199408-199501

SWITZERLAND SPEC

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-28150iCR27,KR27,YR29199201-199501

main47707-28160iCR21,KR21,YR22199201-199501

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-10385×2iCR2#,KR2#,YR2#199201-199501

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-28150iCR27,KR27,YR29199201-199501

main47708-28160iYR29199203-199501

SWITZERLAND SPEC

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12010×2iCR2#,KR2#,YR2#199201-199501

*12-1.25PX50-26

main90101-12030×4iCR2#,KR2#,YR2#199201-199501

*12-1.25PX31-20

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-28220iCR27,KR27,YR29199201-199501

main47730-28230iCR21,KR21,YR22199201-199501

47731PISTON, FRONT DISC BRAKE

main47731-28040×2iCR27,KR27,YR29199201-199501

main47731-28070×4iCR21,KR21,YR22199201-199501

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-49001×4iCR21,KR21,YR22199201-199501

main90522-67001×2iCR27,KR27,YR29199201-199501

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-14040×2iCR2#,KR2#,YR2#199201-199501

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-28010×2iCR2#,KR2#,YR2#199201-199501

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-28130×2iCR2#,KR2#,YR2#199201-199501

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-28120×2iCR27,KR27,YR29199201-199501

main47744-28140×2iCR21,KR21,YR22199201-199501

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-28070×2iCR2#,KR2#,YR2#199201-199501

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47745-28060×2iCR27,KR27,YR29199201-199501

main47745-28090×2iCR21,KR21,YR22199201-199501

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14050×2iCR2#,KR2#,YR2#199201-199501

UPR

main47748-28010×2iCR2#,KR2#,YR2#199201-199501

LWR

47748CSPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47748-20020×4iCR2#,KR2#,YR2#199201-199501

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-28220iCR27,KR27,YR29199201-199501

main47750-28230iCR21,KR21,YR22199201-199501

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28020×2iCR2#,KR2#,YR2#199201-199501

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12001×2iCR21,KR21,YR22199201-199309

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94145-71200×2iCR2#,KR2#,YR2#199201-199501

9451201200

main94512-01200

9538103020

main95381-03020

27 parts on this diagram · 3 diagrams in section
