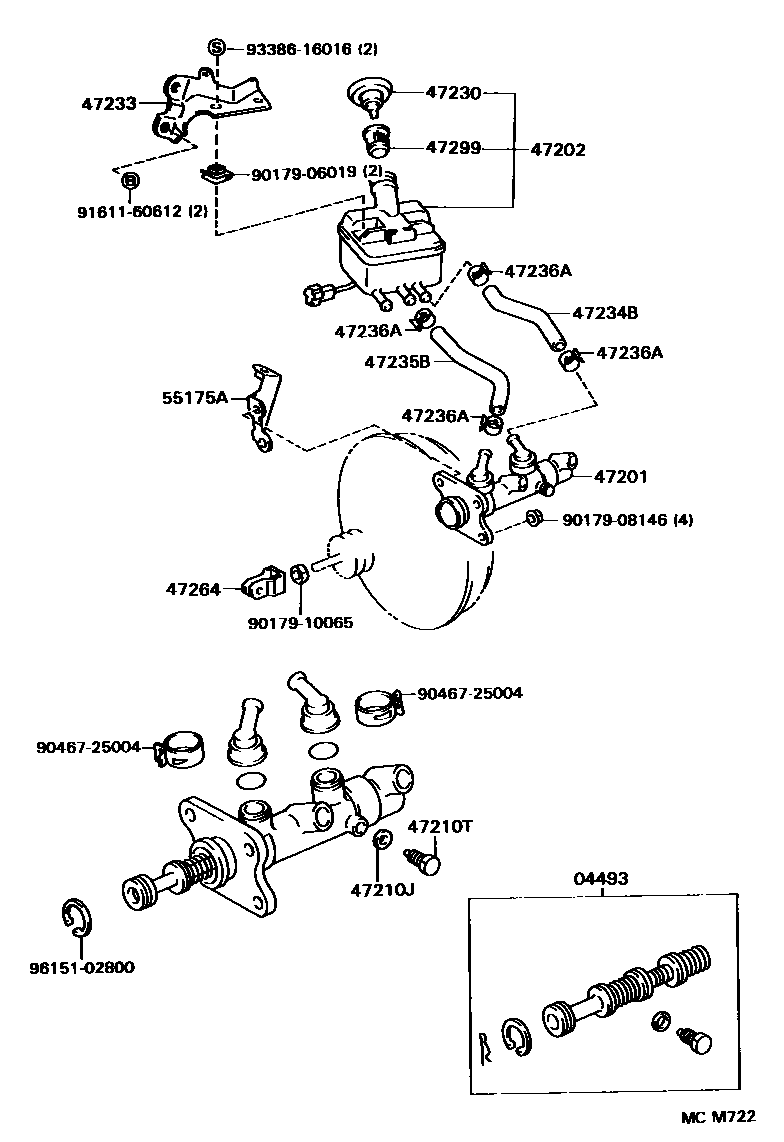

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-28120iCR2#,KR2#,YR2#199201-199501

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-28310iCR27,KR27..RHD199201-199501

main47201-28330iCR2#,KR2#,YR2#..LHD199201-199501

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-28100iCR27,KR27..RHD199201-199501

main47220-28120iCR2#,KR2#,YR2#..LHD199201-199501

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iCR2#,KR2#,YR2#199201-199501

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iCR2#,KR2#,YR2#199201-199501

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28010iCR2#,KR2#,YR2#199201-199501

47233BRACKET, RESERVOIR

main47233-28060iCR27,KR27..RHD199201-199501

main47233-28070iCR2#,KR2#,YR2#..LHD199201-199501

47234BTUBE, RESERVOIR, NO.1

main47234-28060iCR27,KR27..RHD199201-199501

main47234-28070iCR2#,KR2#,YR2#..LHD199201-199501

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-28060iCR27,KR27..RHD199201-199501

main47235-28070iCR2#,KR2#,YR2#..LHD199201-199501

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16002iCR2#,KR2#,YR2#199201-199501

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-16020iCR2#,KR2#,YR2#199201-199501

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iCR2#,KR2#,YR2#199201-199501

55175ASUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55175-28070iCR27,KR27..RHD199201-199501

main55175-28080iCR2#,KR2#,YR2#..LHD199201-199501

9017906019

main90179-06019

9017908146

main90179-08146

9017910065

main90179-10065

9046725004

main90467-25004

9161160612

main91611-60612

9338616016

main93386-16016

9615102800

main96151-02800

20 parts on this diagram · 2 diagrams in section
