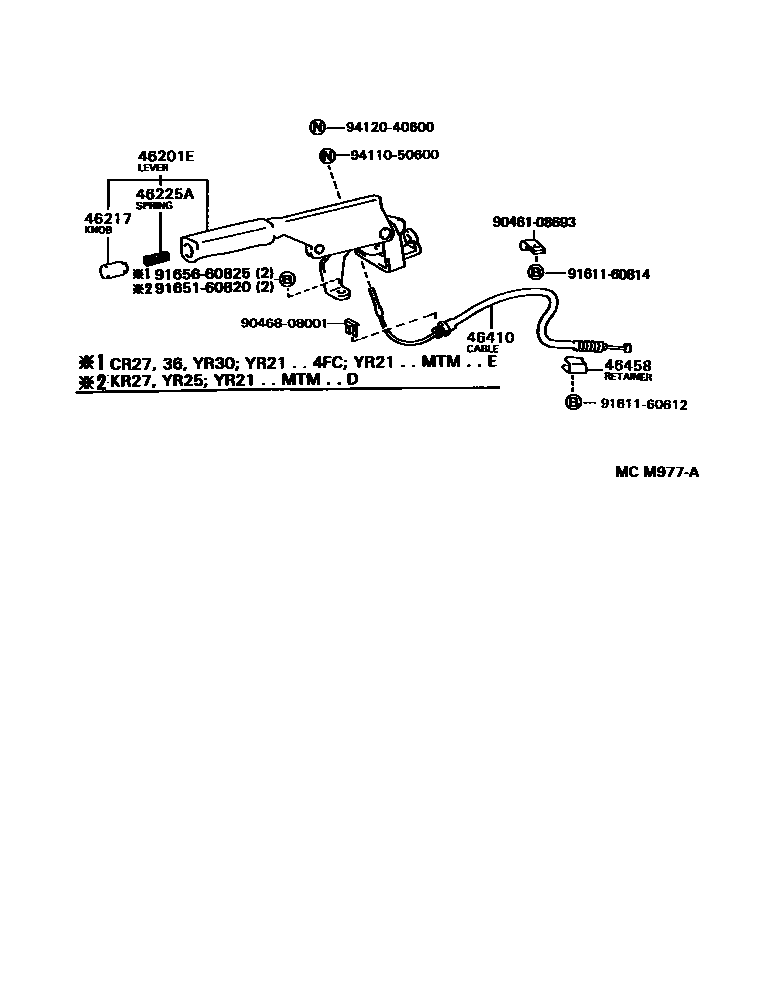

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-28120-B0iKR27..LHD;CR2#,KR21,YR2#199201-199501

GRAY,TRIM1#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-B3iCR2#,KR2#,YR2#199201-199501

BLUISH GRAY,TRIM1#

sub46217-12020

sub46217-16030

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10132iCR2#,KR2#,YR2#199201-199501

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-28150iKR27..RHD199201-199405

main46410-28160iCR27..RHD199201-199501

main46410-28180iKR2#,YR2#..LHD199201-199501

main46410-28190iCR2#..LHD199201-199501

46458RETAINER, CABLE

main46458-28010iCR2#,KR2#,YR2#199201-199501

9046108693

main90461-08693

9046808001

main90468-08001

9161160612

main91611-60612

9161160814

main91611-60814

9165160820

main91651-60820

9165660825

main91656-60825

9411050600

main94110-50600

9412040600

main94120-40600

13 parts on this diagram · 3 diagrams in section
