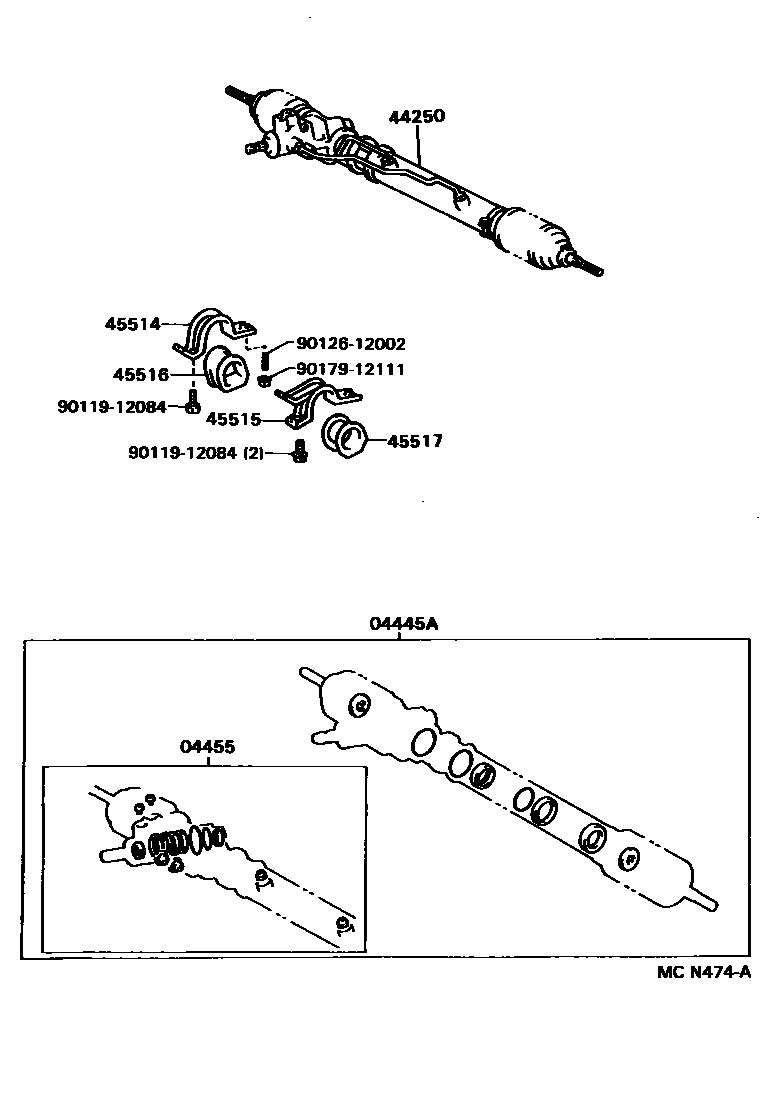

FRONT STEERING GEAR & LINK

0001 1POWER STEERING 0002 1POWER STEERING 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-28041iCR2#,YR2#199201-199501

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-28020iCR2#,YR2#199201-199501

sub04455-20120

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-28210iCR27..RHD199201-199501

main44250-28220iCR21,YR22199201-199501

sub44250-28221

main44250-28230iCR27,YR29..LHD199201-199501

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-28020iCR2#,KR2#,YR2#199201-199501

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-27010iCR2#,KR2#,YR2#199309-199501

main45515-27020iCR2#,YR2#199309-199501

W(POWER STEERING)

main45515-28020iCR2#,KR2#,YR2#199201-199309

main45515-28030iCR2#,YR2#199201-199309

W(POWER STEERING)

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-27010iCR2#,KR2#,YR2#199201-199501

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-27010iCR2#,KR2#,YR2#199201-199501

main45517-27020iCR2#,YR2#199201-199501

W(POWER STEERING)

9011912084

main90119-12084

9012612002

main90126-12002

9017912111

main90179-12111

10 parts on this diagram · 4 diagrams in section
