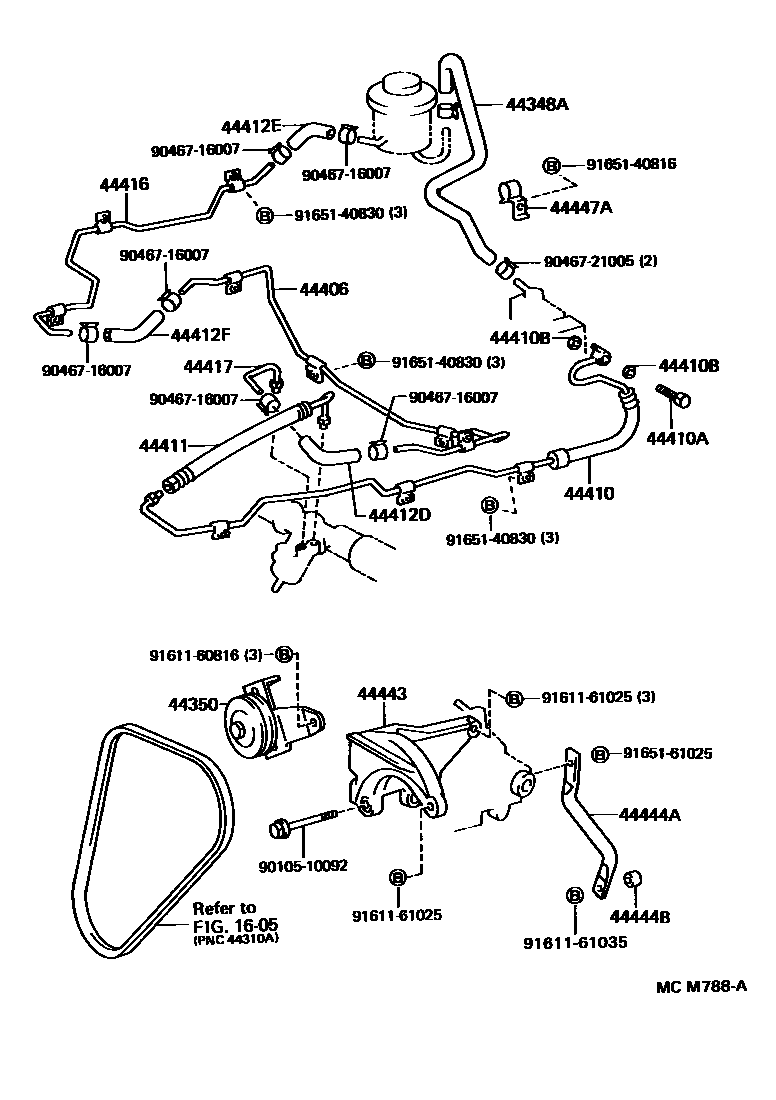

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

1605

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-28040iYR2#199201-199501

main44348-28160iCR2#199201-199501

44350PULLEY ASSY, POWER STEERING IDLE

main44350-28011iYR2#199201-199501

44406TUBE SUB-ASSY, RETURN

main44416-28110×2iYR2#199201-199501

44410TUBE ASSY, PRESSURE FEED

main44410-28171iYR2#199201-199501

main44410-28270iCR27..RHD199201-199408

main44410-28280iCR2#..LHD199201-199501

main44410-28390iCR27..RHD199408-199501

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iCR2#,YR2#199201-199501

44410BGASKET(FOR PRESSURE FEED TUBE)

main90430-16242×2iCR2#,YR2#199201-199501

44411HOSE, PRESSURE FEED

main44411-28051iCR2#,YR2#..LHD199201-199501

main44411-28130iCR27..RHD199201-199408

44412HOSE, RETURN

main44412-28070iCR27..RHD199201-199408

main44412-28150iCR2#..LHD199201-199501

44412DHOSE, RETURN, NO.1

main44412-28150iYR2#199201-199501

44412EHOSE, RETURN, NO.2

main44412-28130iYR2#199201-199501

44412FHOSE, RETURN, NO.3

main44412-28140iYR2#199201-199501

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-28190iYR2#199201-199501

main44416-28200iCR27..RHD199201-199408

main44416-28210iCR2#..LHD199201-199501

44417TUBE, RETURN, NO.2

main44417-28190iCR2#,YR2#..LHD199201-199501

main44417-28210iCR27..RHD199201-199408

main44417-28300iCR27..RHD199408-199501

44443BRACKET, PUMP

main44443-14030iCR2#199201-199501

main44443-28021iYR2#199201-199501

44444ASTAY, PUMP, REAR NO.1

main44444-27030iYR2#199201-199501

44444BCOLLAR (FOR PUMP REAR STAY)

main90387-12031iYR2#199201-199501

44447ABRACKET, HOSE SUPPORT, NO.1

main44447-28020iYR2#199201-199501

9010510092

main90105-10092

9046716007

main90467-16007

9046721005

main90467-21005

9161160816

main91611-60816

9161161025

main91611-61025

9161161035

main91611-61035

9165140816

main91651-40816

9165140830

main91651-40830

9165161025

main91651-61025

27 parts on this diagram · 4 diagrams in section
