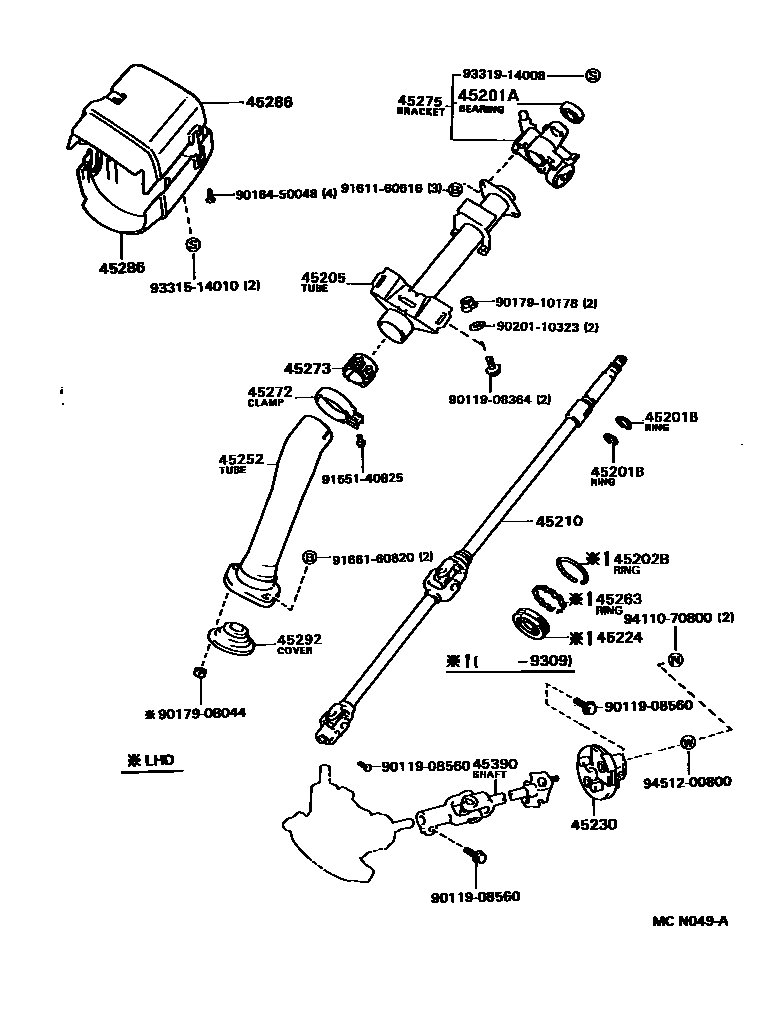

STEERING COLUMN & SHAFT
45201ABEARING(FOR STEERING MAIN SHAFT)
W(TILT STEERING),UPR
W(TILT STEERING),LWR
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
T=1.20
45202BRING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
W(TILT STEERING)
W(TILT STEERING)
45210SHAFT ASSY, STEERING MAIN
W(TILT STEERING)
W(TILT STEERING)
45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)
L=16
45230COUPLING ASSY, FLEXIBLE
W(POWER STEERING)
45252TUBE, STEERING COLUMN, LOWER
45263RING, STEERING COLUMN, NO.1
45272CLAMP, STEERING COLUMN, LOWER
45273BUSH, STEERING MAIN SHAFT
45286COVER, STEERING COLUMN
W(TILT STEERING),GRAY,TRIM1#,UPR
GRAY,TRIM1#,UPR
GRAY,TRIM1#,LWR
W(TILT STEERING),GRAY,TRIM1#,LWR
GRAY,TRIM1#,LWR
45292SEAL, MAIN SHAFT LOWER DUST
45390SHAFT ASSY, STEERING TORQUE
W(POWER STEERING)
9011908364
main90119-08364
9011908560
main90119-08560
9016450048
main90164-50048
9017908044
main90179-08044
9017910178
main90179-10178
9020110323
main90201-10323
9161160616
main91611-60616
9165140825
main91651-40825
9166160820
main91661-60820
9331514010
main93315-14010
9331914008
main93319-14008
9411070800
main94110-70800
9451200800
main94512-00800
28 parts on this diagram · 4 diagrams in section
