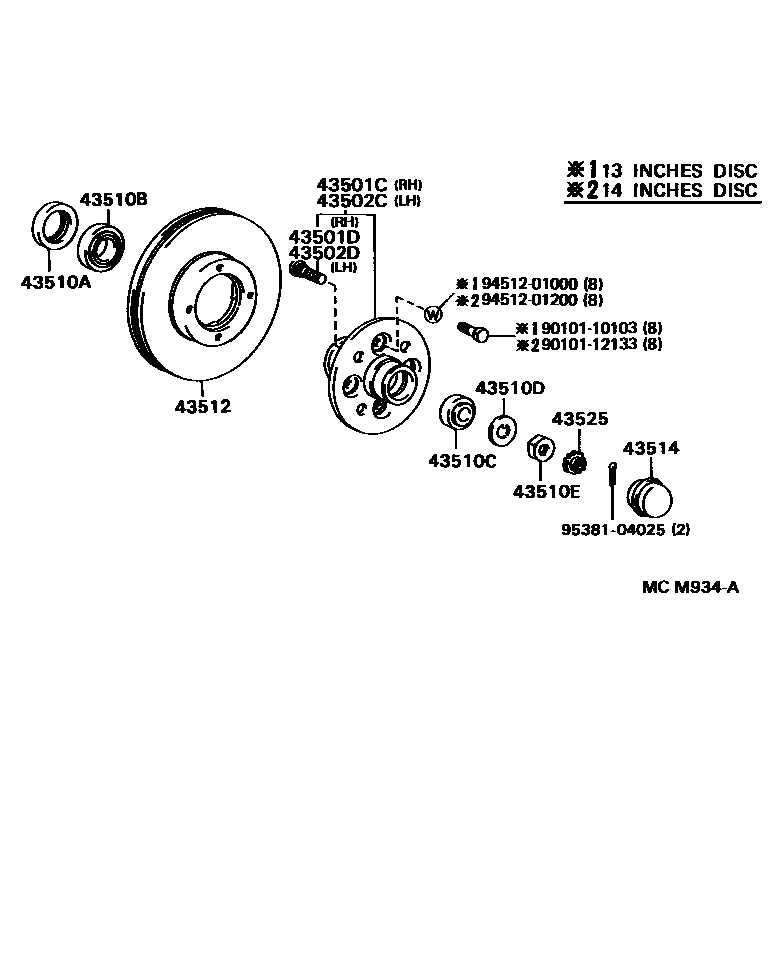

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-28030iCR2#,KR2#,YR2#199201-199501

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02048iCR2#,KR2#,YR2#199201-199501

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-28030iCR2#,KR2#,YR2#199201-199501

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02048iCR2#,KR2#,YR2#199201-199501

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48001iCR2#,KR2#,YR2#199201-199501

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-31067iCR2#,KR2#,YR2#199201-199501

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-19037iCR2#,KR2#,YR2#199201-199501

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005iCR2#,KR2#,YR2#199201-199501

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iCR2#,KR2#,YR2#199201-199501

43512DISC, FRONT

main43512-28130iCR2#,KR2#,YR2#199201-199501

43514CAP, FRONT HUB GREASE

main43514-22020iCR2#,KR2#,YR2#199309-199501

main43514-27010iCR2#,KR2#,YR2#199201-199309

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iCR2#,KR2#,YR2#199201-199501

9010110103

main90101-10103

9010112133

main90101-12133

9451201000

main94512-01000

9451201200

main94512-01200

9538104025

main95381-04025

17 parts on this diagram · 1 diagram in section
