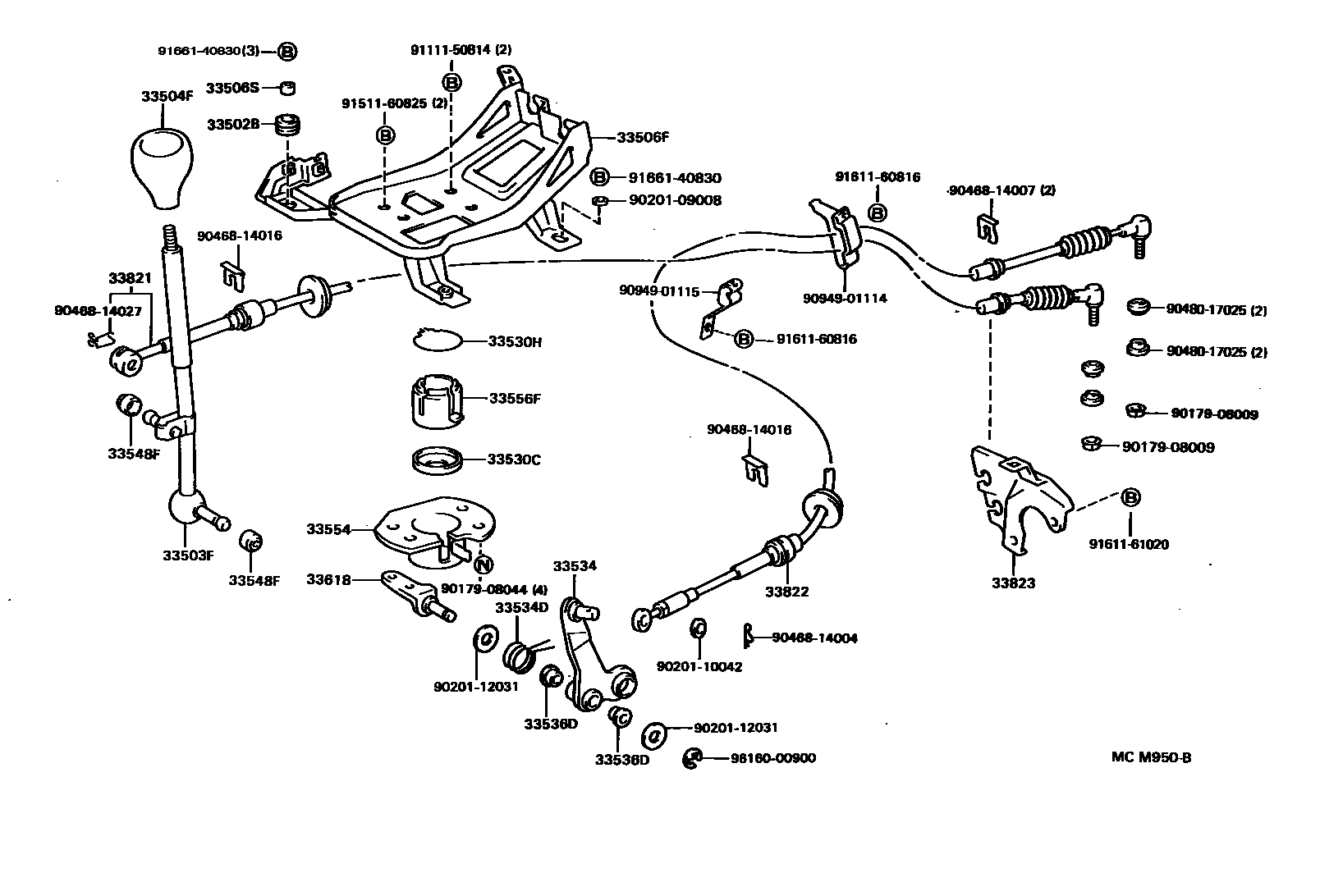

SHIFT LEVER & RETAINER

33502BGROMMET (FOR SHIFT LEVER PLATE)

main90480-13012iCR2#,KR2#,YR2#199201-199501

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-28010iCR2#,KR2#,YR2#..LHD199201-199501

main33501-28070iCR27,KR27..RHD199201-199501

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14070-B1iCR27,KR27,YR29199201-199501

GRAY,TRIM1#

sub33504-14070

sub33504-14050

main33504-24010-48iCR27,KR27,YR29199201-199309

URETHANE,GRAY,TRIM1#

sub33504-24010

main33504-24010-48iCR21,KR21,YR22199201-199309

GRAY,TRIM1#

sub33504-24010

main33504-35030-B1iCR27,YR29199309-199501

URETHANE,BLUISH GRAY,TRIM1#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-B1iCR21,YR22199309-199501

BLUISH GRAY,TRIM1#

sub33504-24010

sub33504-35030

sub33504-60121

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-28140iCR2#,KR2#,YR2#..LHD199201-199501

main33506-28151iCR27,KR27..RHD199201-199501

33506SCOLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90387-09011iCR2#,KR2#,YR2#199201-199501

33530CBUSH (FOR SHIFT LEVER)

main90385-24001iCR2#,KR2#,YR2#199201-199501

33530HRING, SNAP (FOR SHIFT LEVER)

main90520-34002iCR2#,KR2#,YR2#199201-199202

main90520-36018iCR2#,KR2#,YR2#199202-199501

33534BELLCRANK, SELECTING

main33534-28050iCR2#,KR2#,YR2#199201-199501

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-28001iCR2#,KR2#,YR2#199201-199501

33536DBUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)

main90386-12013iCR2#,KR2#,YR2#199201-199302

main90386-12034iCR2#,KR2#,YR2#199302-199501

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021iCR2#,KR2#,YR2#199201-199501

33554CAP, SHIFT LEVER

main33554-28060iCR2#,KR2#,YR2#199201-199501

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-20020iCR2#,KR2#,YR2#199201-199501

33618SUPPORT, SELECTING BELLCRANK, NO.1

main33618-28030iCR2#,KR2#,YR2#199201-199501

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-28061iCR2#,YR2#199201-199501

main33821-28120iKR27..RHD199201-199405

main33821-28130iKR2#..LHD199201-199405

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-28061iCR2#,YR2#199201-199501

main33822-28120iKR27..RHD199201-199405

main33822-28130iKR2#..LHD199201-199405

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-28020iYR2#199201-199501

main33823-28032iCR2#199201-199501

main33823-28140iKR2#199201-199405

9017908009

main90179-08009

9017908044

main90179-08044

9020109008

main90201-09008

9020110042

main90201-10042

9020112031

main90201-12031

9046814004

main90468-14004

9046814007

main90468-14007

9046814016

main90468-14016

9046814027

main90468-14027

9048017025

main90480-17025

9094901114

main90949-01114

9094901115

main90949-01115

9111150814

main91111-50814

9151160825

main91511-60825

9161160816

main91611-60816

9161161020

main91611-61020

9166140830

main91661-40830

9616000900

main96160-00900

35 parts on this diagram · 1 diagram in section
