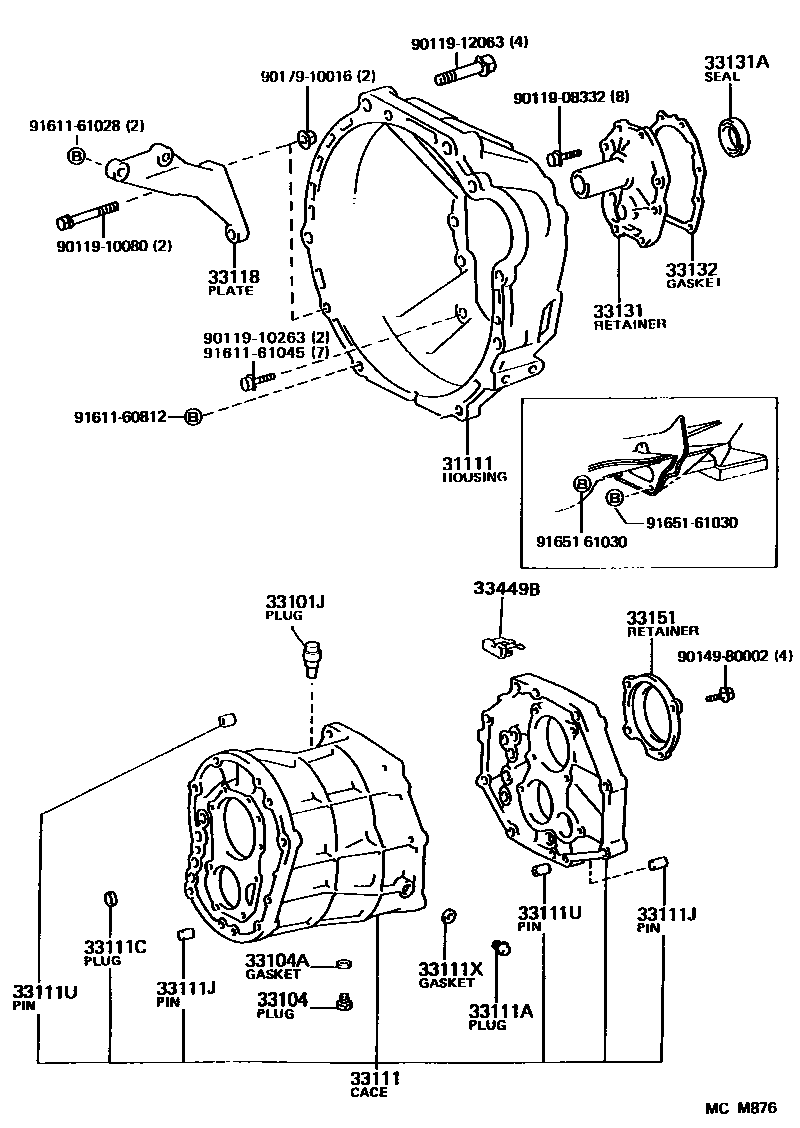

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G53 0002 1G53 0003 1G57

31111HOUSING, CLUTCH

main31111-27030iKR2#199201-199405

main31111-28020iYR2#199201-199501

main31111-28030iCR2#199201-199501

33101JPLUG, BREATHER

main90930-03085iCR2#,KR2#,YR2#199201-199501

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iCR2#199201-199501

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iCR2#,KR2#,YR2#199201-199501

33111CASE, MANUAL TRANSMISSION

main33101-28020iCR2#199201-199501

sub33101-35060

sub90341-18032

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iCR2#,KR2#,YR2#199201-199501

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iCR2#,KR2#,YR2#199201-199501

OD=14

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iCR2#,KR2#,YR2#199201-199501

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iCR2#,KR2#,YR2#199201-199501

L=11,OD=11

main90253-15001iCR2#,KR2#,YR2#199201-199501

L=14,OD=15

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iCR2#,KR2#,YR2#199201-199501

33118PLATE, STIFFENER, RH(MTM)

main33118-12080iKR2#199201-199405

main33118-27010iCR2#199201-199501

main33118-28010iYR2#199201-199501

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iCR2#,KR2#,YR2#199201-199501

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iCR2#,KR2#,YR2#199201-199501

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iCR2#,KR2#,YR2#199201-199501

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35030iCR2#,KR2#,YR2#199201-199501

33449BMAGNET, TRANSMISSION

main33449-26010iCR2#,KR2#,YR2#199201-199501

9011908332

main90119-08332

9011910080

main90119-10080

9011910263

main90119-10263

9011912063

main90119-12063

9014980002

main90149-80002

9017910016

main90179-10016

9161160812

main91611-60812

9161161028

main91611-61028

9161161045

main91611-61045

9165161030

main91651-61030

26 parts on this diagram · 3 diagrams in section
