CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iCR2#,KR2#199201-199410

main04313-17010iCR2#199410-199501

main04313-26020iYR2#199410-199501

sub04313-30130

main04313-30120iYR2#199201-199410

sub04313-26020

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-28040iCR2#199201-199501

main31470-30230iYR2#199201-199501

main31470-35071iKR2#199201-199405

sub31470-35100

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iCR2#,KR2#,YR2#199201-199501

*8-1.25PX25-25

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iCR2#,KR2#,YR2#199201-199501

main31473-35050iYR2#199410-199501

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iCR2#,KR2#,YR2#199201-199501

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iCR2#,KR2#,YR2#199201-199501

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iCR2#,KR2#,YR2#199201-199501

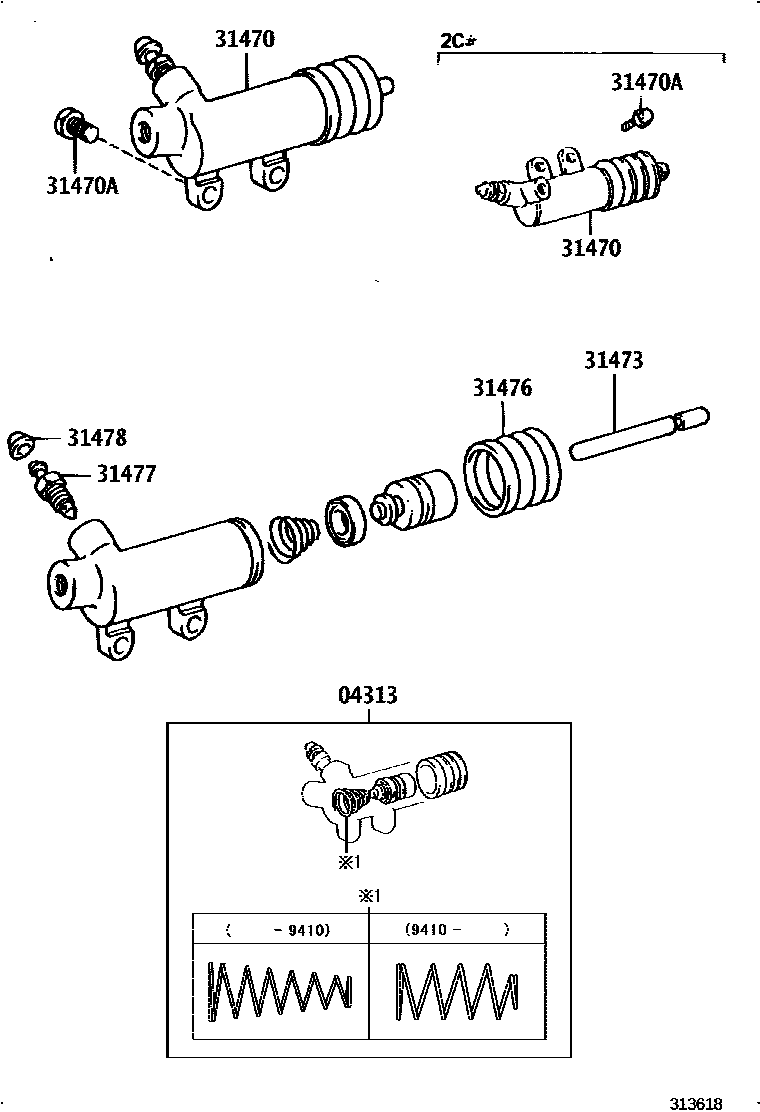

7 parts on this diagram · 1 diagram in section
