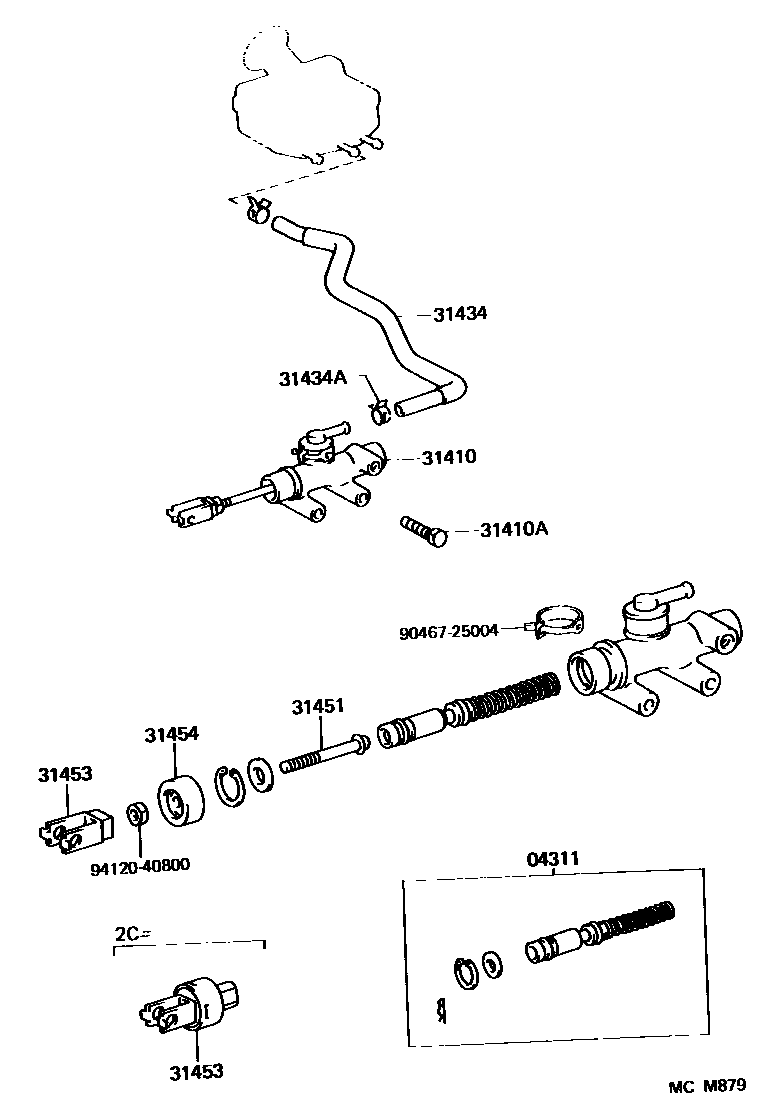

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-30110iCR2#,YR2#..LHD199201-199501

sub04311-30111

main04311-35080iKR2#;CR27..RHD199201-199403

main04311-60150iKR2#;CR27..RHD199403-199501

sub04311-12110

31410CYLINDER ASSY, CLUTCH MASTER

main31420-26170iKR2#..LHD199201-199405

sub31420-37050

main31420-28110iKR27..RHD199201-199405

sub31420-37050

main31420-28120iCR27..RHD199201-199501

sub31420-37040

main31420-28130iCR2#,YR2#..LHD199201-199501

sub31420-37040

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91611-60865iCR2#,KR2#,YR2#199201-199501

31434TUBE, CLUTCH RESERVOIR

main31434-28060iCR2#,KR2#,YR2#..LHD199201-199501

main31434-28070iCR27,KR27..RHD199201-199501

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90467-16002iCR27,KR27..RHD199201-199501

sub96134-51500

main96132-30800iCR2#,KR2#,YR2#..LHD199201-199501

sub96132-51300

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20090iKR27..RHD199312-199405

main31451-35070iKR2#..LHD199201-199405

main31451-35080iCR2#,YR2#..LHD199201-199501

main31451-36040iCR27..RHD199312-199501

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iCR2#,YR2#199201-199501

main31453-35010iKR2#199201-199405

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iCR2#,KR2#,YR2#199201-199501

9046725004

main90467-25004

9412040800

main94120-40800

10 parts on this diagram · 1 diagram in section
