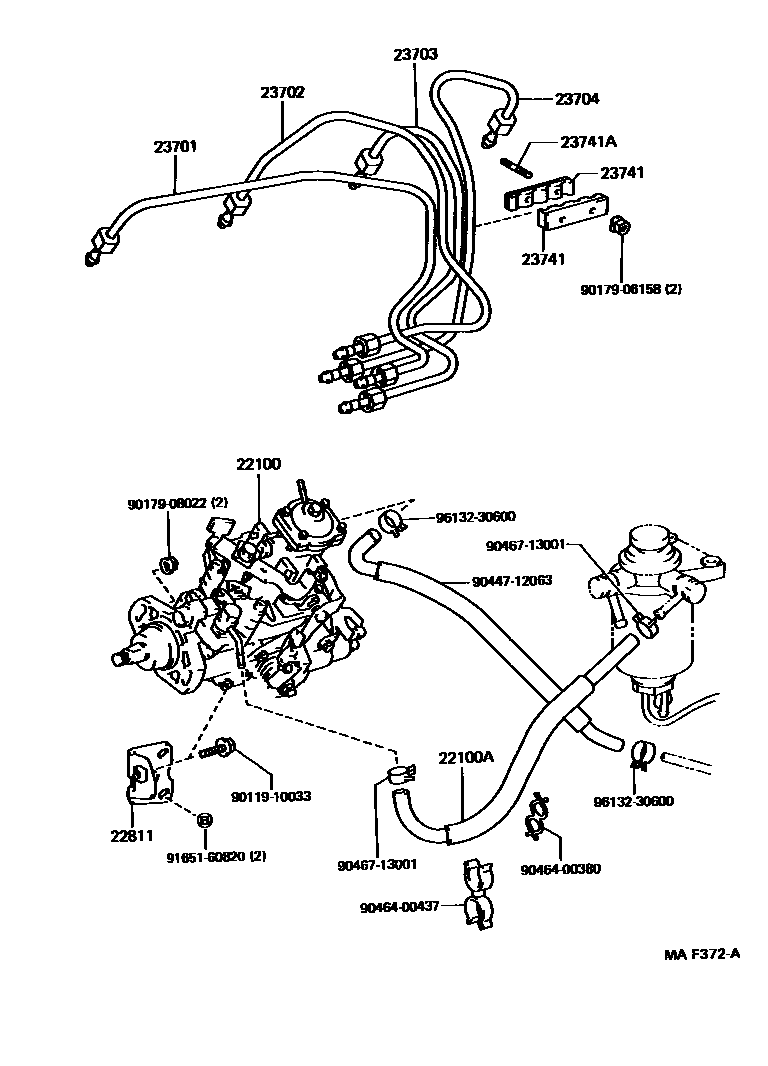

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-6D330i2C..CR2#199201-199501

sub22100-6D370

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main90447-14020i2C..CR2#199201-199501

L=480

22811STAY, INJECTION PUMP, NO.1

main22811-64020i2C..CR2#199201-199501

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-64070i2C..CR2#199201-199309

main23701-64130i2C..CR2#199309-199501

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-64070i2C..CR2#199201-199309

main23702-64130i2C..CR2#199309-199501

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-64031i2C..CR2#199201-199309

main23703-64110i2C..CR2#199309-199501

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-64070i2C..CR2#199201-199309

main23704-64130i2C..CR2#199309-199501

23741CLAMP, INJECTION PIPE, NO.1

main23741-64020i2C..CR2#199201-199501

sub23741-64021

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06275i2C..CR2#199201-199501

sub90116-06095

9011910033

main90119-10033

9017906158

main90179-06158

9017908022

main90179-08022

9044712063

main90447-12063

9046400380

main90464-00380

9046400437

main90464-00437

9046713001

main90467-13001

9165160820

main91651-60820

9613230600

main96132-30600

18 parts on this diagram · 1 diagram in section
