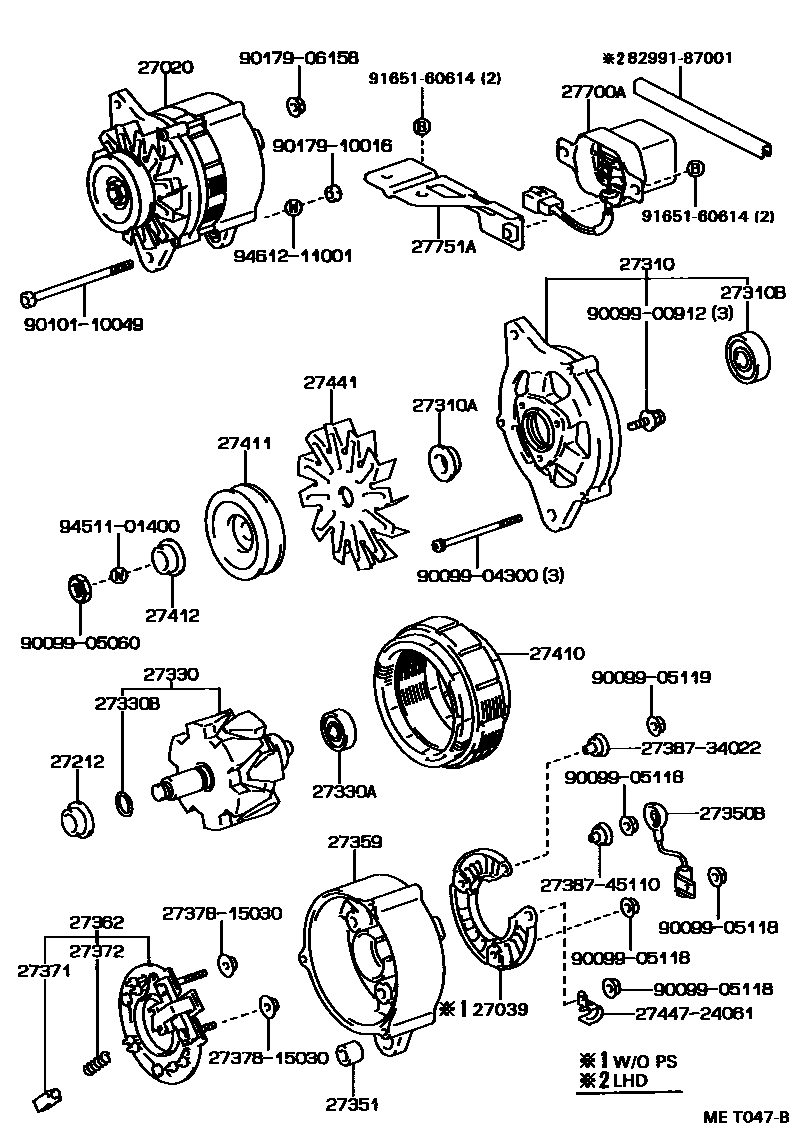

ALTERNATOR

0001 112V 45A 0002 112V 70A 0003 112V 55A

27020ALTERNATOR ASSY

main27020-13290i5K..KR2#199201-199405

12V 45A

main27060-64030i2C..CR2#199201-199303

12V 55A

main27060-64140i2C..CR2#199309-199501

12V 55A

main27060-64210i2C..CR2#199303-199309

12V 55A

sub27060-64030

main27060-72180i4YEC..YR2#199201-199309

12V 70A

main27060-72340i4YEC..YR2#199309-199501

12V 40A

27039COVER, ALTERNATOR REAR END

main27039-15170i2C..CR2#199303-199309

INNER

sub27039-15171

main27039-15170i2C..CR2#199201-199303

sub27039-15171

main27039-42010i4YEC..YR2#199201-199309

sub27039-16310

main27039-55080i4YEC..YR2#199309-199501

sub27039-70470

main27039-61111i5K..KR2#199201-199405

main27039-64190i2C..CR2#199303-199309

OUTER

main27039-73020i2C..CR2#199309-199501

sub27039-16380

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i5K..KR2#199201-199405

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-13050i5K..KR2#199201-199405

main27310-64230i2C..CR2#199201-199309

main27310-64460i2C..CR2#199309-199501

main27310-72210i4YEC..YR2#199201-199309

main27310-72370i4YEC..YR2#199309-199501

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i5K..KR2#199201-199405

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i5K..KR2#199201-199405

main90099-10165i2C..CR2#199201-199309

main90099-10192i4YEC..YR2#199201-199501

27330ROTOR ASSY, ALTERNATOR

main27330-45020i5K..KR2#199201-199405

main27330-64130i2C..CR2#199201-199309

main27330-72101i2C..CR2#199309-199501

main27330-76030i4YEC..YR2#199201-199501

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i5K..KR2#199201-199405

main90099-10140i2C,4YEC..CR2#,YR2#199201-199501

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i5K..KR2#199201-199405

27350BCONDENSER, ALTERNATOR

main90099-52065i5K..KR2#199201-199405

sub90099-52034

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i5K..KR2#199201-199405

main27351-64150i2C..CR2#199303-199309

27359FRAME, ALTERNATOR RECTIFIER END

main27359-13050i5K..KR2#199201-199405

main27359-16270i4YEC..YR2#199201-199309

main27359-64130i2C..CR2#199201-199309

main27359-64460i2C..CR2#199309-199501

sub27359-64461

sub27384-16380

main27359-72280i4YEC..YR2#199309-199501

27362RECTIFIER ASSY, W/BRUSH

main27362-18011i5K..KR2#199201-199405

27371BRUSH, ALTERNATOR

main27371-31011i5K..KR2#199201-199405

main27371-70300i2C..CR2#199201-199501

27372SPRING, ALTERNATOR BRUSH

main27372-31011i5K..KR2#199201-199405

main27372-63020i2C..CR2#199201-199501

sub27372-87501

27410STATOR ASSY, ALTERNATOR

main27410-38120i5K..KR2#199201-199405

27411PULLEY, ALTERNATOR

main27411-31042i5K..KR2#199201-199405

main27411-42030i4YEC..YR2#199201-199501

main27411-64460i2C..CR2#199309-199501

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i5K..KR2#199201-199405

sub27412-44031

27441FAN, ALTERNATOR

main27441-34030i5K..KR2#199201-199405

27700AREGULATOR ASSY, GENERATOR

main27700-11030i2C..CR2#199201-199209

sub27700-72090

main27700-16010i4YEC..YR2#199209-199309

sub27700-66020

main27700-35040i4YEC..YR2#199309-199501

main27700-54050i2C..CR2#199209-199309

sub27700-76020

main27700-65010i2C..CR2#199309-199501

sub27700-35040

main27700-70030i4YEC..YR2#199201-199209

main27700-72010i5K..KR2#199201-199405

27751ABRACKET, GENERATOR REGULATOR

main27751-13020i5K..KR27..RHD199201-199405

main27751-13030i5K..KR2#..LHD199201-199405

2737815030INSULATOR, ALTERNATOR, NO.1

main27378-15030

2738734022INSULATOR, TERMINAL

main27387-34022

2738745110INSULATOR, TERMINAL

main27387-45110

2744724061CLIP, ALTERNATOR CORD

main27447-24061

8299187001WIRE, FUSIBLE LINK REPAIR

main82991-87001

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110049

main90101-10049

9017906158

main90179-06158

9017910016

main90179-10016

9165160614

main91651-60614

9451101400

main94511-01400

9461211001

main94612-11001

37 parts on this diagram · 3 diagrams in section
