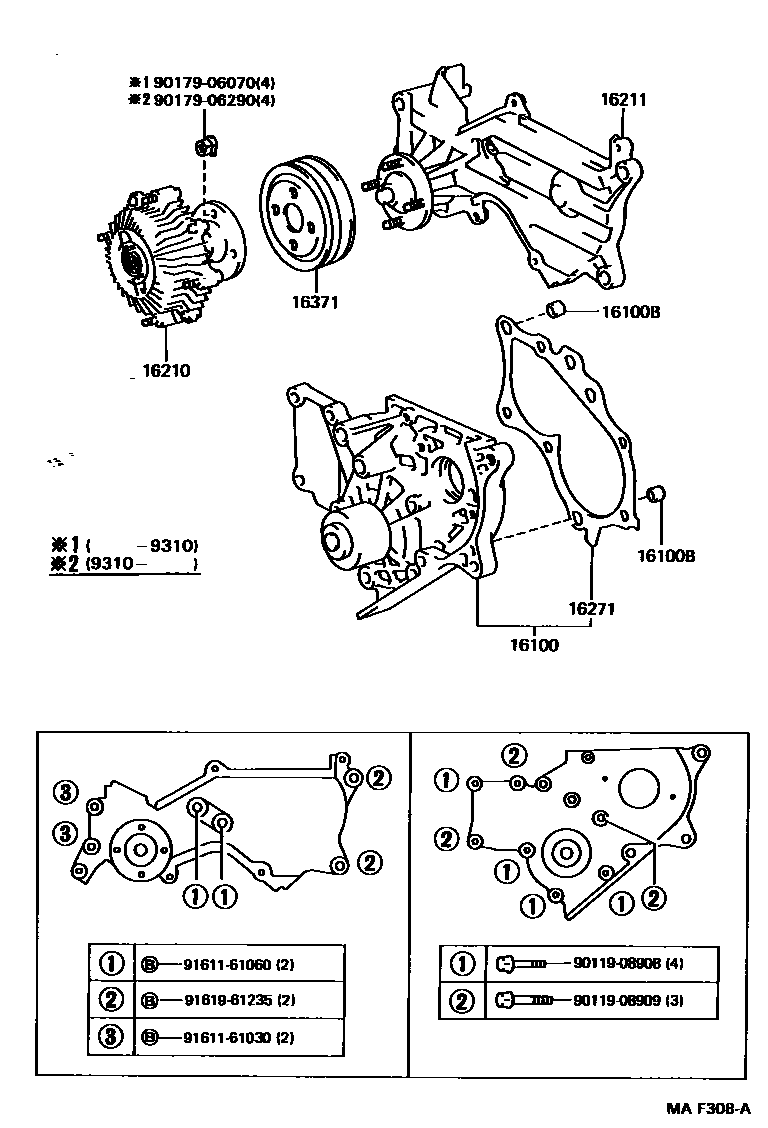

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-19156i5K..KR2#199201-199405

main16100-69295i2C..CR2#199201-199501

sub16100-69296

main16100-79036i4YEC..YR2#199201-199501

sub16100-79037

16100BPIN, RING(FOR WATER PUMP SET)

main90253-11021×2i2C..CR2#199201-199501

16210COUPLING ASSY, FLUID

main16210-38050i5K..KR2#199201-199405

main16210-64010i2C..CR2#199201-199501

main16210-73010i4YEC..YR2#199201-199501

16211BRACKET, FLUID COUPLING

main16307-64020i2C..CR2#199201-199306

main16307-64021i2C..CR2#199309-199501

sub16307-64022

sub11321-64080

sub11328-64070

sub91512-61045

sub91512-61070

sub91512-81235

16271GASKET, WATER PUMP

main16271-13030i5K..KR2#199201-199405

main16271-64030i2C..CR2#199201-199501

sub16271-64031

16371PULLEY, FAN

main16371-13010i5K..KR2#199201-199405

main16371-64040i2C..CR2#199201-199309

main16371-64050i2C..CR2#199309-199501

main16371-73011i4YEC..YR2#199201-199501

9011908908

main90119-08908

9011908909

main90119-08909

9017906070

main90179-06070

9017906290

main90179-06290

9161161030

main91611-61030

9161161060

main91611-61060

9161961235

main91619-61235

13 parts on this diagram · 3 diagrams in section
