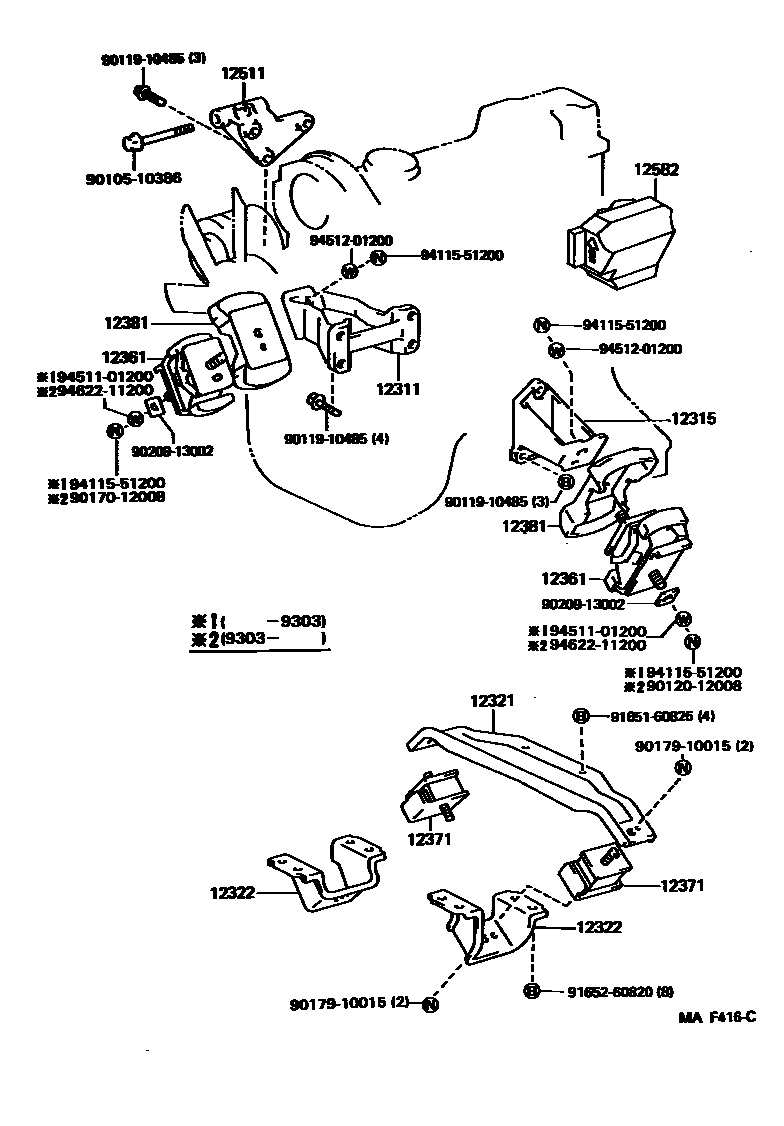

MOUNTING

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-13150i5K..KR2#199201-199405

sub12301-13151

main12311-64060i2C..CR2#199201-199501

main12311-71010i4YEC..YR2#199201-199501

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-13091i5K..KR2#199201-199405

sub12302-13092

main12315-64020i2C..CR2#199201-199501

sub12315-64120

main12315-71010i4YEC..YR2#199201-199501

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-13060i5K..KR27..RHD199201-199405

main12321-13070i5K..KR2#..LHD199201-199405

main12321-64010i2C..CR2#199201-199501

main12321-71020i4YEC..YR2#199201-199501

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-13030i5K..KR27..RHD199201-199501

RH

main12322-13080i5K..KR2#..LHD199201-199405

RH

main12326-13010i5K..KR27..RHD199201-199501

LH

main12326-13040i5K..KR2#..LHD199201-199405

LH

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-64022i2C..CR2#199201-199301

sub12361-64023

main12361-64023i2C..CR2#199301-199501

main12361-71020i4YEC..YR2#199201-199501

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-13051i2C..CR2#199201-199501

12381STABILIZER, ENGINE MOUNTING

main12381-64010i2C..CR2#199201-199305

sub12381-64011

main12381-64011i2C..CR2#199305-199501

sub12381-64110

main12381-71030i4YEC..YR2#199201-199501

12511BRACKET, ALTERNATOR, NO.1

main12501-73011i4YEC..YR2#199201-199501

main12511-24011i5K..KR2#199201-199405

main12511-64030i2C..CR2#199201-199309

main12511-64080i2C..CR2#199309-199501

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-64020i2C..CR2#199201-199501

9010510386

main90105-10386

9011910485

main90119-10485

9012012008

main90120-12008

9017012008

main90170-12008

9017910015

main90179-10015

9020913002

main90209-13002

9165160825

main91651-60825

9165260820

main91652-60820

9411551200

main94115-51200

9451101200

main94511-01200

9451201200

main94512-01200

9462211200

main94622-11200

21 parts on this diagram · 3 diagrams in section
