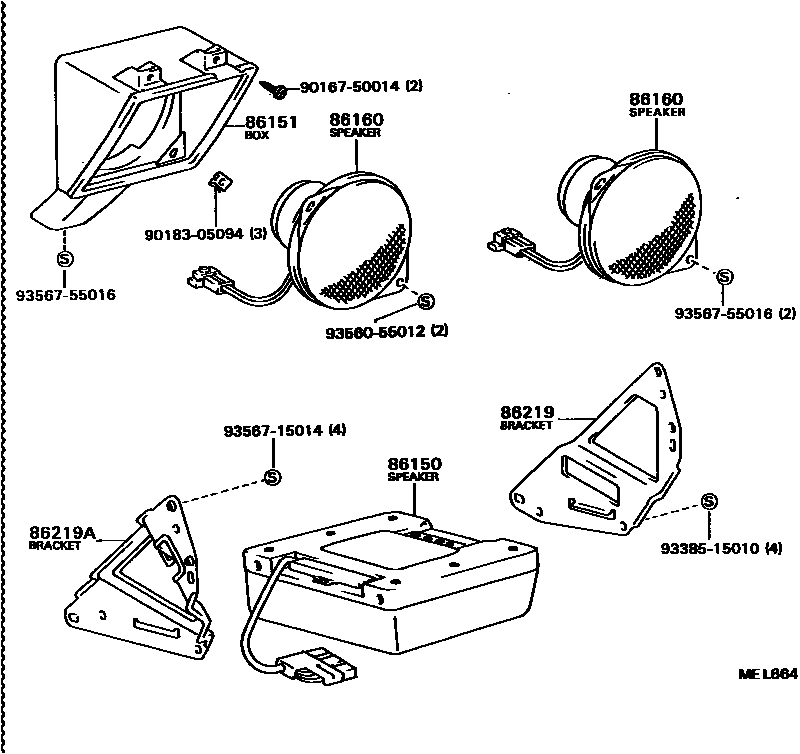

SPEAKER

0001 1 0002 1

86150SPEAKER ASSY, W/BOX, NO.1

main86150-87011iYR2#,31198808-199001

86151BOX, SPEAKER

main86151-87001iYR2#,31198808-199001

86160SPEAKER ASSY, FRONT NO.1

main86160-10140iYR2#,31198808-199001

main86160-87011iYR2#,31198808-199001

BOX SPEAKER

86219BRACKET, STEREO COMPONENT SPEAKER, NO.1

main86211-87004iYR21..RHD198808-199001

WOOFER SPEAKER

main86219-28010iYR2#,31..LHD198808-199001

main86219-87014×4iYR21..RHD198808-199001

86219ABRACKET, STEREO COMPONENT SPEAKER, NO.2

main86212-87003iYR21..RHD198808-199001

WOOFER SPEAKER

main86219-28020iYR2#,31..LHD198808-199001

9016750014

main90167-50014

9018305094

main90183-05094

9338515010

main93385-15010

9356055012

main93560-55012

9356715014

main93567-15014

9356755016

main93567-55016

11 parts on this diagram · 2 diagrams in section
