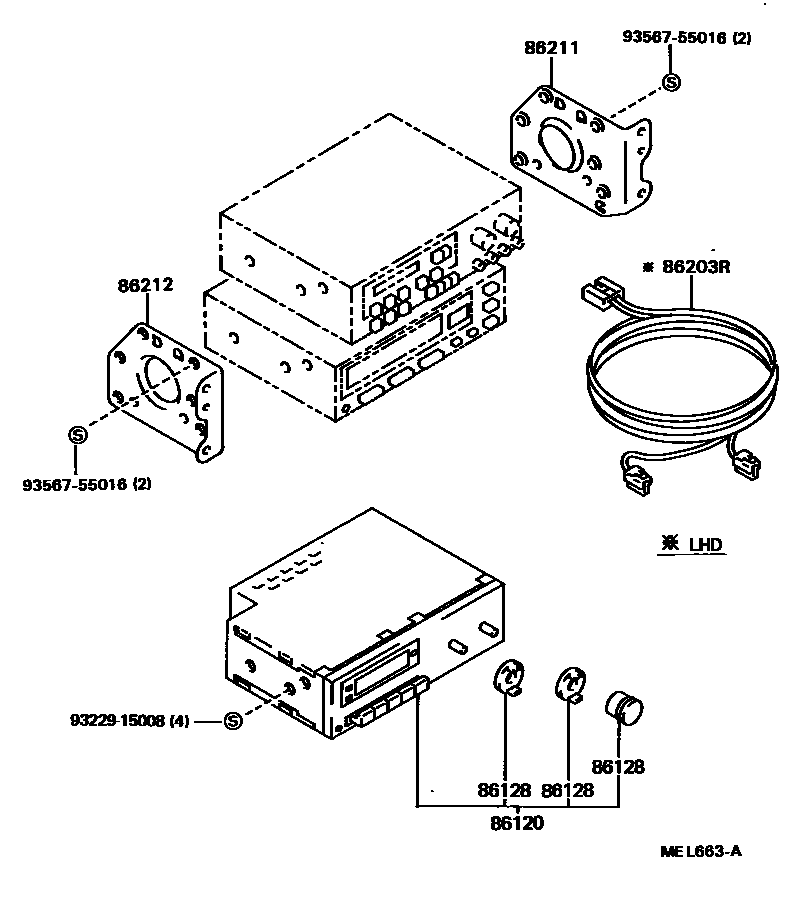

RADIO RECEIVER & AMPLIFIER & CONDENSER

86120RECEIVER ASSY, RADIO

main86120-32102iYR2#,31198808-199001

MATSUSHITA,LW/MW/UKW MPX ETR CASSETTE 2-SPEAKERS(OPT)

main86120-32111iYR2#,31198808-199001

FUJITSU TEN,LW/MW/UKW MPX ETR 2-SPEAKERS(OPT)

main86120-32241iYR2#,31198808-199001

FUJITSU TEN,LW/MW/UKW ETR 2-SPEAKERS(OPT)

main86120-32261iYR2#,31198808-199001

LW/MW/UKW MPX ETR CASSETTE 5-SPEAKERS(OPT)

86128KNOB, RADIO RECEIVER

main86128-32060iYR2#,31198808-199001

PWR/VOL

main86128-32080iYR2#,31198808-199001

TUNE

main86128-32310iYR21..RHD198808-199001

W(LW/MW/UKW MPX ETR CST ARI 3SP),PWR/VOL

main86128-32310iYR21..RHD198808-199001

VOL/TREB

main86128-32330iYR21..RHD198808-199001

BAL

main86128-32330iYR21..RHD198808-199001

BASS/FADE

main86128-32410iYR21..RHD198808-199001

TONE

86203RWIRE SUB-ASSY, RR

main86205-28010iYR2#,31..LHD198808-199001

86211BRACKET, RADIO, NO.1

main86211-87003iYR21..RHD198808-199001

86212BRACKET, RADIO, NO.2

main86212-87002iYR21..RHD198808-199001

9322915008

main93229-15008

9356755016

main93567-55016

7 parts on this diagram · 1 diagram in section
