SEAT MOTOR & SEAT HEATER

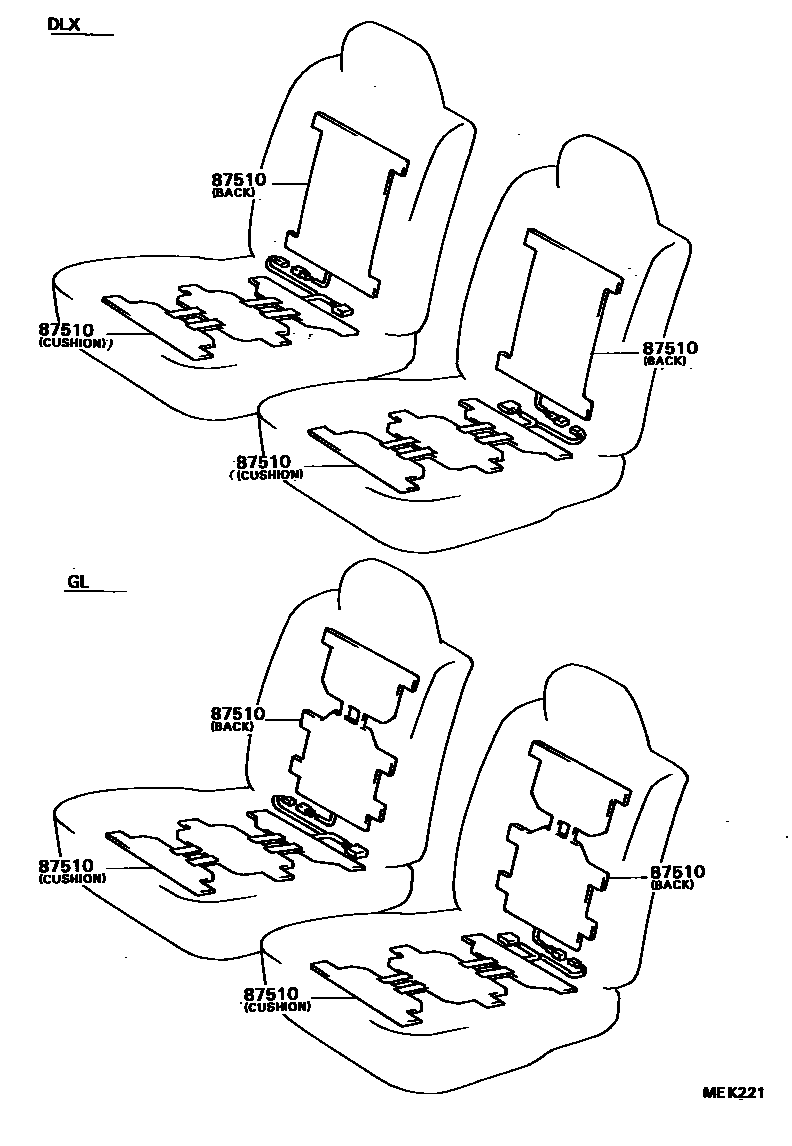

Parts diagram

87510HEATER ASSY, SEAT

main87510-28010i198808-199001

SEAT BACK

main87510-28020i198808-199001

SEAT CUSHION

main87510-28030i198808-199001

SEAT BACK

1 parts on this diagram · 1 diagram in section
