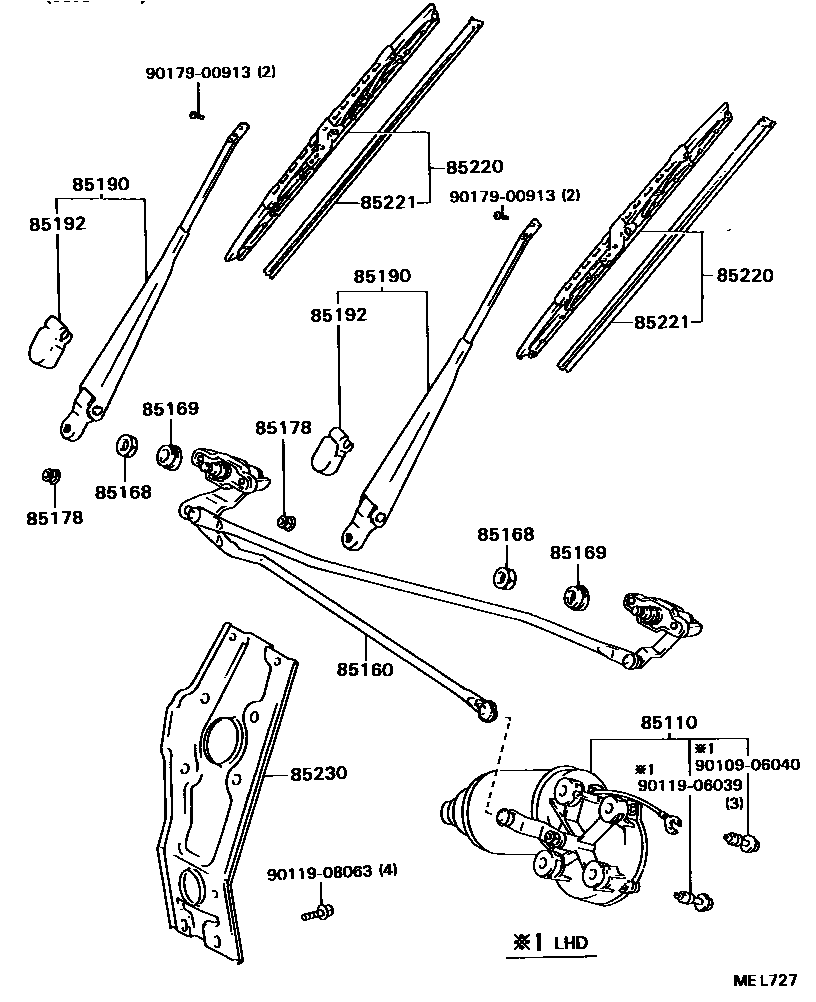

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-28011iYR2#,31..LHD198808-199001

sub85110-28020

main85110-87011iYR21..RHD198808-199001

85160LINK ASSY, WINDSHIELD WIPER

main85160-28010iYR2#,31..LHD198808-199001

main85160-87003iYR21..RHD198808-199001

85168NUT, WINDSHIELD WIPER LINK PIVOT

main90099-05141iYR2#,31198808-199001

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85179-87002iYR2#,31198808-199001

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08123iYR2#,31198808-199001

85190ARM ASSY, WINDSHIELD WIPER

main85190-28030iYR2#,31..LHD198808-199001

LH

main85190-87012iYR21..RHD198808-199001

RH

main85210-28020iYR2#,31..LHD198808-199001

RH

main85210-87006iYR21..RHD198808-199001

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-28020iYR2#,31198808-199001

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16201iYR21..RHD198910-199001

RH

main85220-16270iYR2#,31..LHD198808-198812

RH

sub85220-16640

main85220-16340iYR2#,31..LHD198808-198812

LH

sub85220-16640

main85220-16410iYR21..RHD198808-198910

RH

sub85220-16411

main85220-16420iYR21..RHD198808-198910

LH

sub85220-16421

main85220-16421iYR21..RHD198910-199001

LH

sub85222-12700

main85220-16880iYR2#,31..LHD198812-199001

sub85220-16640

85221BLADE, WINDSHIELD WIPER

main85221-30100iYR2#,31..LHD198808-199001

LH

sub85221-40040

main85221-30120iYR21..RHD198808-199001

RH

sub85221-40040

85230BRACKET ASSY, WINDSHIELD WIPER

main85230-87003iYR21..RHD198808-199001

main85231-28010iYR2#,31..LHD198808-199001

9010906040

main90109-06040

9011906039

main90119-06039

9011908063

main90119-08063

9017900913

main90179-00913

14 parts on this diagram · 1 diagram in section
