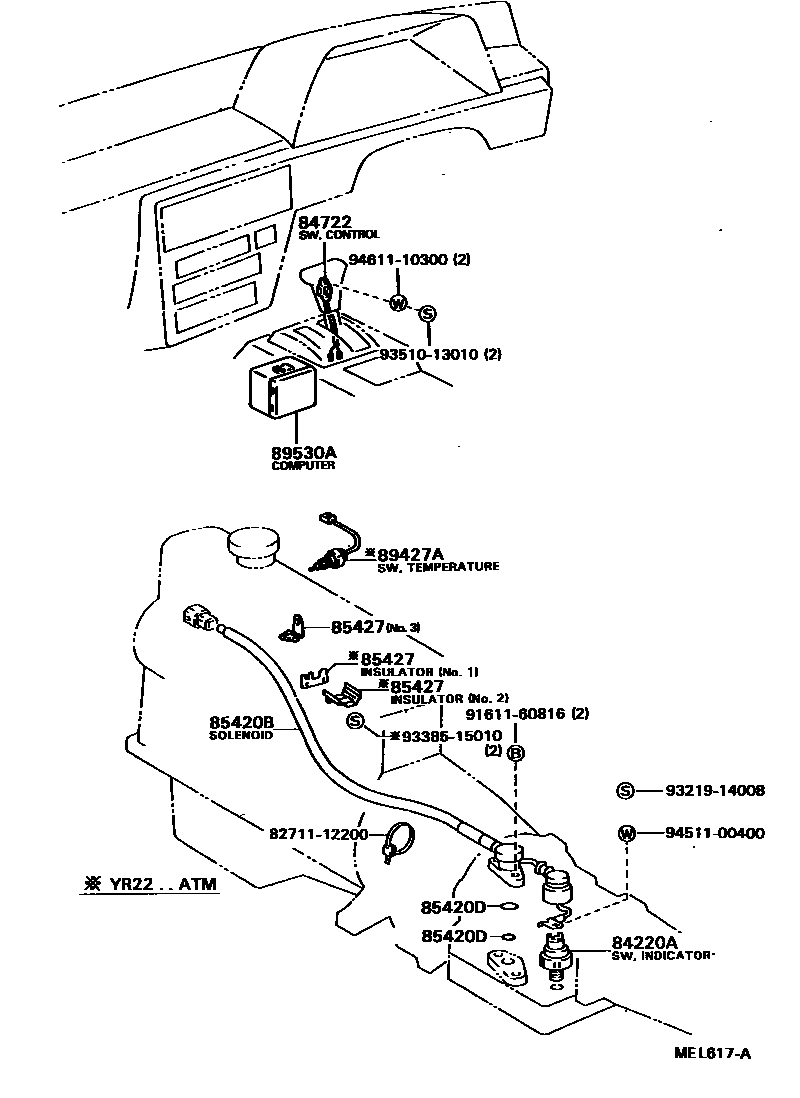

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84220ASWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-30050iYR2#..4FC198808-199001

84722SWITCH, TRANSMISSION CONTROL

main84722-20040-03iYR2#..4FC198808-199001

GRAY,TRIM1#

sub84722-20040

main84722-20040-16iYR2#..4FC198808-199001

BROWN,TRIM4#

sub84722-20040

85420BSOLENOID ASSY, TRANSMISSION

main85420-28010iYR2#..4FC198808-199001

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-11001iYR2#..4FC198808-199001

ID=10

main90301-23001iYR2#..4FC198808-199001

ID=23

85427INSULATOR, OVERDRIVE SOLENOID

main85427-28020iYR22..4FC198808-199001

NO.1

main85427-28040iYR22..4FC198808-199001

NO.2

main85427-28050iYR22..4FC198808-199001

NO.3

89427ASWITCH, TEMPERATURE

main89428-20050iYR22..4FC198808-199001

89530ACOMPUTER ASSY, TRANSMISSION CONTROL

main89530-28020iYR21..4FC198808-199001

main89530-28070iYR22..4FC198808-199001

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9161160816

main91611-60816

9321914008

main93219-14008

9338515010

main93385-15010

9351013010

main93510-13010

9451100400

main94511-00400

9461110300

main94611-10300

14 parts on this diagram · 1 diagram in section
