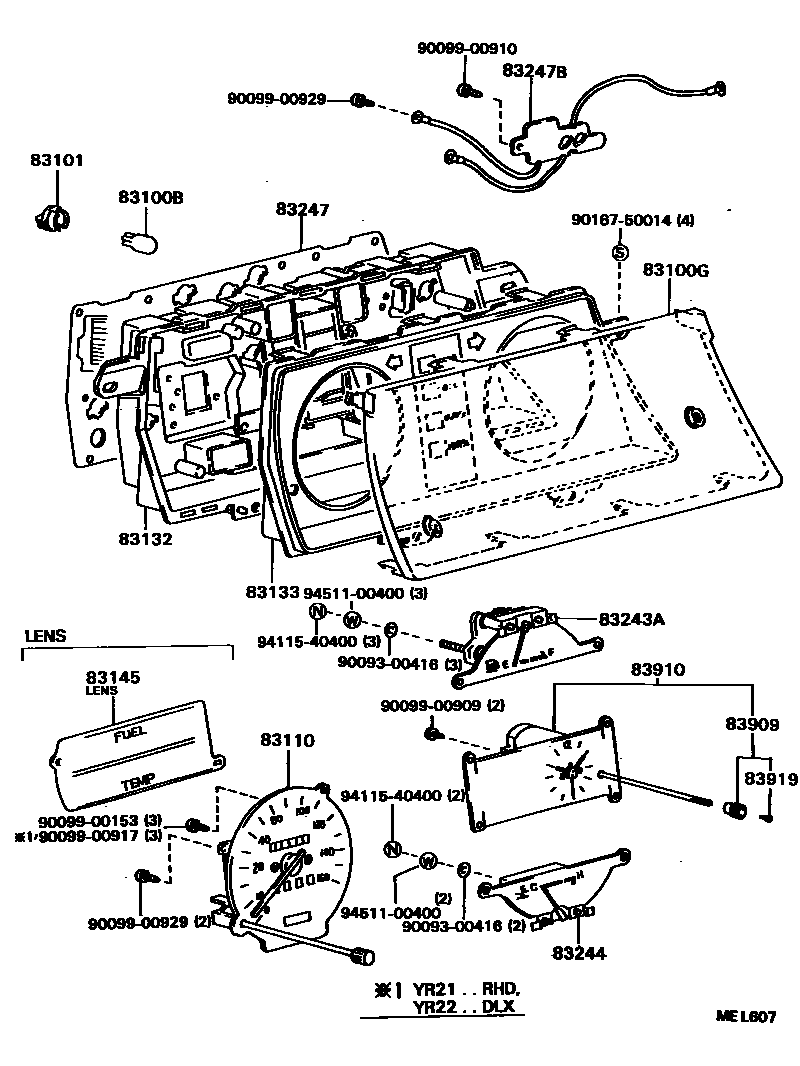

METER

0001 1 0002 1 0003 1

83100BBULB, COMBINATION METER, NO.1

main83109-28010×4iYR2#,31198808-199001

12V3.4W W(GREEN CAP)

main90981-11018iYR2#,31..GL198808-199001

12V 1.2W W/O SOCKET

main99132-12034×8iYR21..RHD198808-199001

12V 3.4W

83100GGLASS, COMBINATION METER

main83138-87003iYR22,31..DLX198808-199001

W(CLOCK)

main83138-87005iYR2#,31..DLX198808-199001

main83138-87007iYR2#,31..GL198808-199001

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×9iYR21..RHD198808-199001

12V 3.4W BULB

main83101-14040iYR2#,31..GL198808-199001

12V 1.4W BULB

main83101-28010×4iYR22..5F..GL198808-199001

12V 3.4W GREEN BULB

83110SPEEDOMETER ASSY

main83110-28031iYR21..DLX198808-199001

main83110-28061iYR22,31..DLX198808-199001

main83110-28091iYR22,31..GL198808-199001

sub83110-28130

main83110-28101iYR21..LHD..GL198808-199001

main83110-87019iYR21..RHD198808-199001

83132CASE, COMBINATION METER

main83132-28090iYR2#,31..LHD..GL198808-199001

main83132-28190iYR22,31..DLX198808-199001

main83132-28230iYR21..DLX198808-199001

*FRG

main83132-87031iYR21..RHD198808-199001

main83132-87039iYR21..DLX198808-199001

83133PLATE, COMBINATION METER, NO.1

main83133-28090iYR21..DLX198808-199001

*FRG

main83133-28130iYR22..DLX198808-199001

main83133-87019iYR2#,31..GL198808-199001

main83133-87025iYR21..DLX198808-199001

main83133-95D13iYR31..DLX198808-199001

83145LENS, METER, NO.1

main83145-87015iYR21..DLX198808-199001

main83145-95D01iYR22,31..DLX198808-199001

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-28010iYR22..GL198808-199001

main83243-87001iYR21..GL198808-199001

main83243-87005iYR2#,31..DLX198808-199001

main83243-95D05iYR31..GL198808-199001

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-28030iYR2#,31..DLX198808-199001

main83244-28050iYR2#,31..LHD..GL198808-199001

main83244-95D01iYR21..RHD198808-199001

83247PLATE, METER CIRCUIT

main83247-28530iYR22,31..GL198808-199001

main83247-28550iYR21..LHD..GL198808-199001

main83247-28630iYR21..DLX198808-199001

sub83247-28650

main83247-28750iYR22..DLX198808-199001

main83247-87039iYR21..4FC198808-199001

main83247-87041iYR21..RHD..5F198808-199001

main83247-95D21iYR31..DLX198808-199001

83247BPLATE, METER CIRCUIT, NO.2

main83247-28090iYR21..DLX198808-199001

main83247-28290iYR2#,31..GL198808-199001

83909KNOB, CLOCK

main83909-14012iYR22,31..DLX198808-199001

main83909-16050iYR2#,31..GL198808-199001

83910CLOCK ASSY

main83910-28011iYR2#,31..LHD..GL198808-199001

main83910-87010iYR21..DLX198808-199001

main83910-87019iYR21..RHD198808-199001

main83910-95D00iYR22,31..DLX198808-199001

83919SCREW, CLOCK

main83919-12230iYR2#,31..GL198808-199001

main83919-14012iYR22,31..DLX198808-199001

9009300416

main90093-00416

9009900153

main90099-00153

9009900909

main90099-00909

9009900910

main90099-00910

9009900917

main90099-00917

9009900929

main90099-00929

9016750014

main90167-50014

9411540400

main94115-40400

9451100400

main94511-00400

23 parts on this diagram · 3 diagrams in section
