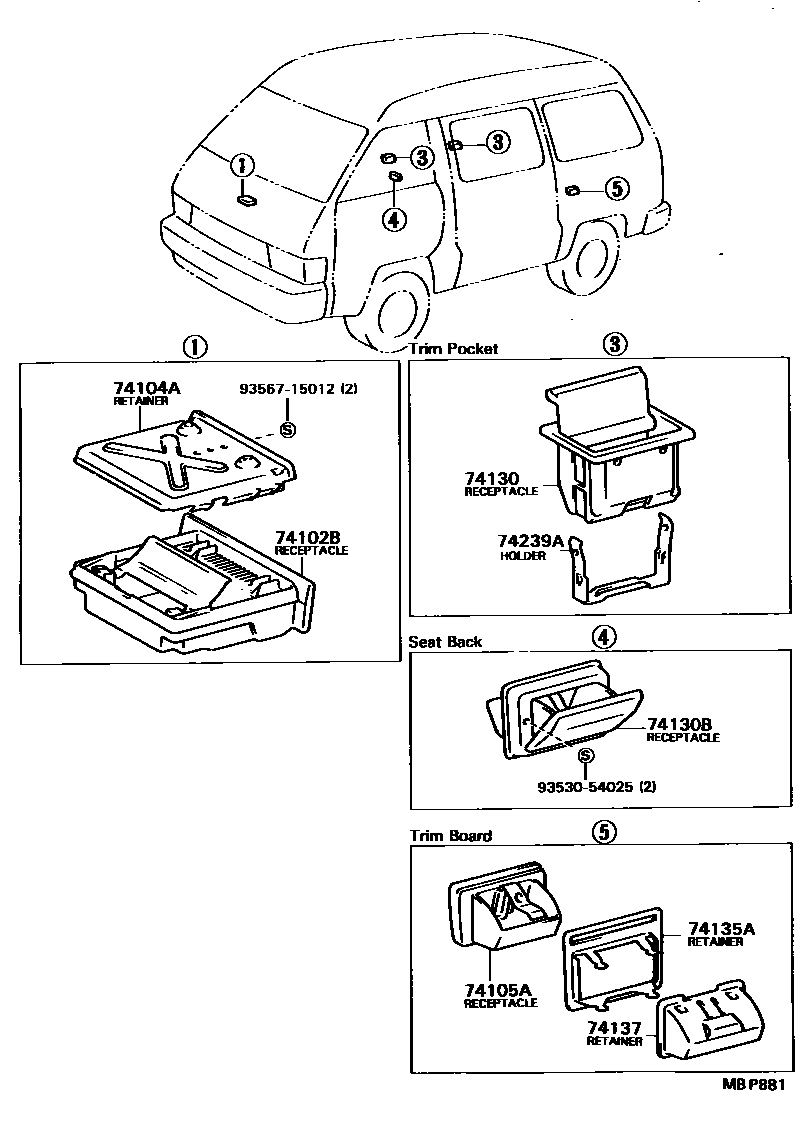

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-87001-01iYR2#,31198808-199001

BLACK,TRIM1#,4#

sub74102-87001

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-28010iYR2#,31..LHD..GL198808-199001

main74104-87008iYR2#,31..DLX198808-199001

main74104-87009iYR21..RHD198808-199001

74105ARECEPTACLE SUB-ASSY, REAR ASH

main74105-10010-13iYR2#,31198808-199001

GRAY,TRIM1#

sub74105-10010

main74105-10010-30iYR2#,31..GL198808-199001

BROWN,TRIM4#

sub74105-10010

74130RECEPTACLE ASSY, REAR ASH

main74130-16020-23iYR2#,31198808-199001

GRAY,TRIM1#

sub74130-16020

main74130-16020-46iYR2#,31..GL198808-199001

BROWN,TRIM4#

sub74130-16020

74130BRECEPTACLE ASSY, REAR ASH

main74130-14020-23iYR2#,31198808-199001

GRAY,TRIM1#

sub74130-14020

sub74130-95401

main74130-14020-58iYR2#,31..GL198808-199001

BROWN,TRIM4#

sub74130-14020

sub74130-95401

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-10030iYR2#,31198808-199001

74137RETAINER, REAR ASH RECEPTACLE, INNER RH

main74137-10030iYR2#,31198808-199001

74239AHOLDER, REAR ASH RECEPTACLE

main74239-22020iYR2#,31198808-199001

9353054025

main93530-54025

9356715012

main93567-15012

10 parts on this diagram · 1 diagram in section
