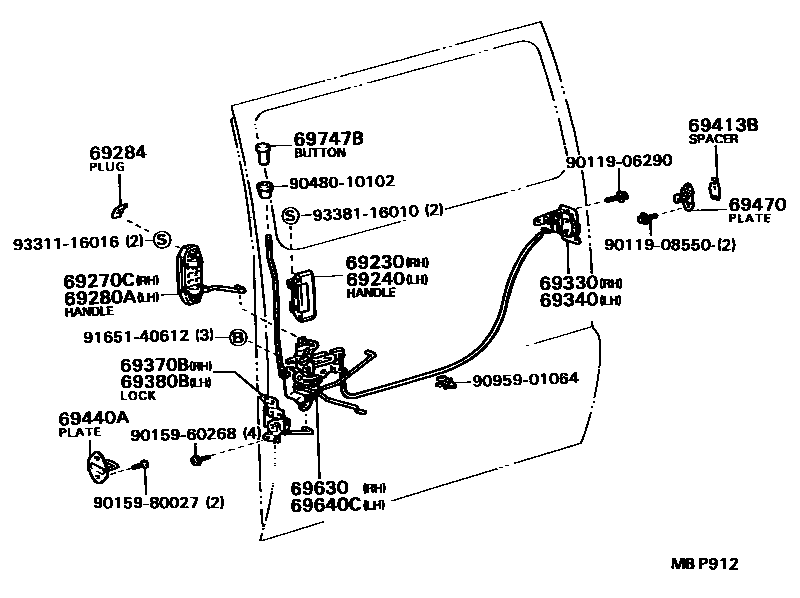

REAR DOOR LOCK & HANDLE

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-87003iYR2#,31..LHD¥3,600198808-199001

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-87002iYR21..RHD¥3,600198808-199001

69270CHANDLE ASSY, FRONT SLIDE DOOR, INSIDE RH

main69270-87001-03iYR2#,31..LHD198808-199001

GRAY,TRIM1#

main69270-87001-04iYR2#,31..LHD198808-199001

BLUE,BLUE,TRIM8#

main69270-87001-06iYR2#,31..LHD..GL198808-199001

BROWN,TRIM4#

69280AHANDLE ASSY, SLIDE DOOR, INSIDE LH

main69280-87001-03iYR21..RHD198808-199001

GRAY,TRIM1#

main69280-87001-06iYR21..RHD198808-199001

LIGHT BROWN,TRIM4#

69284PLUG, SLIDE DOOR INSIDE HANDLE

main69284-87001-03iYR2#,31198808-199001

GRAY,TRIM1#

main69284-87001-16iYR2#,31..GL198808-199001

LIGHT BROWN,TRIM4#

69330LOCK ASSY, REAR DOOR, RH

main69330-87001iYR2#,31..LHD¥4,800198808-199001

69340LOCK ASSY, REAR DOOR, LH

main69340-87001iYR21..RHD¥4,790198808-199001

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-28010iYR2#,31..LHD¥4,920198808-199001

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-28010iYR21..RHD¥4,920198808-199001

69413BSHIM, DOOR LOCK STRIKER

main69413-87002iYR2#,31¥430198808-199001

sub69413-28020¥390

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28010iYR2#,31¥1,490198808-199001

sub69440-46010¥1,800

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-87001iYR2#,31¥1,540198808-199001

sub69470-95D00¥1,550

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-87003iYR2#,31..DLX¥7,400198808-199001

main69630-87004iYR2#,31..LHD..GL¥7,800198808-199001

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-28021iYR21..RHD198808-199001

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69747-87701iYR2#,31¥310198808-199001

sub69743-87001¥300

9011906290

main90119-06290¥120

9011908550

main90119-08550¥140

9015960268

main90159-60268¥130

9015980027

main90159-80027¥160

9048010102

main90480-10102¥190

9095901064

main90959-01064¥110

9165140612

main91651-40612¥70

9331116016

main93311-16016¥120

9338116010

main93381-16010¥110

24 parts on this diagram · 1 diagram in section
