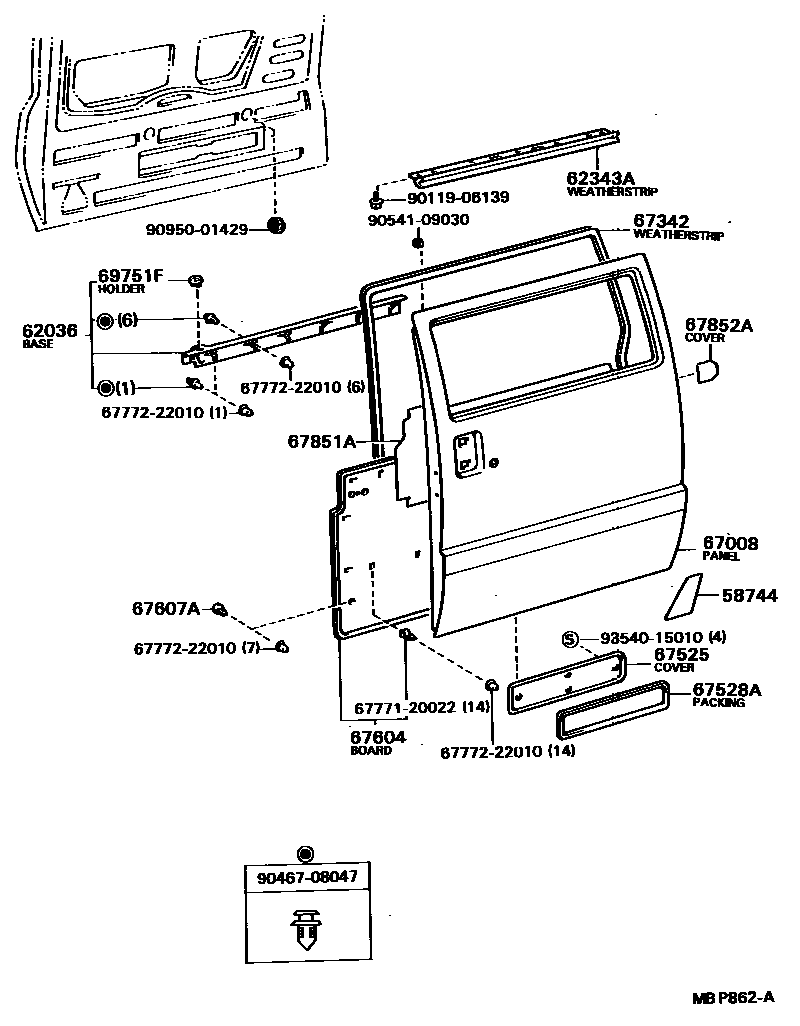

REAR DOOR PANEL & GLASS

0001 1 0002 1

58744PROTECTER, SLIDE DOOR PANEL, LH

main58744-87001iYR21..RHD198808-199001

62036TRIM SUB-ASSY, REAR DOOR TRIM, UPPER LH

main62036-87001-06iYR21..RHD198808-199001

SABLE,TRIM4#

main62036-87001-23iYR21..RHD198808-199001

SHADOW GRAY,TRIM1#

62343AWEATHERSTRIP, SLIDE DOOR, NO.2

main62343-87001iYR2#,31198808-199001

sub67887-28010

67008PANEL SUB-ASSY, SLIDE DOOR, LH

main67004-87019iYR21..RHD198808-199001

67342WEATHERSTRIP, SLIDE DOOR, LH

main67872-87001iYR21..RHD198808-199001

67525COVER, SLIDE DOOR PANEL, LOWER

main67525-28010iYR2#,31198808-199001

67528APACKING, SLIDE DOOR LOWER COVER

main67528-87001iYR2#,31198808-199001

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-87026-06iYR21..RHD198808-199001

SABLE,TRIM4#

sub67640-87029

main67640-87026-13iYR21..RHD198808-199001

SHADOW GRAY,TRIM1#

sub67640-87029

67607ACLIP(FOR SLIDE DOOR TRIM BOARD)

main90467-10016-23iYR2#,31198905-199001

SHADOW GRAY,TRIM1#

sub90467-10016

main90467-10016-26iYR2#,31..GL198905-199001

SABLE,TRIM4#

sub90467-10016

main90467-12078-13iYR2#,31198808-198905

SHADOW GRAY,TRIM1#

sub90467-12078

main90467-12078-56iYR2#,31..GL198808-198905

BROWN,TRIM4#

sub90467-12078

67851ACOVER, SLIDE DOOR SERVICE HOLE, NO.1

main67851-87002iYR2#,31198808-199001

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67852-87001iYR2#,31198808-199001

69751FHOLDER, REAR DOOR LOCK CONTROL KNOB

main69751-87001iYR21..RHD198808-199001

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9011906139

main90119-06139

9046708047

main90467-08047

9054109030

main90541-09030

9095001429

main90950-01429

9354015010

main93540-15010

19 parts on this diagram · 2 diagrams in section
