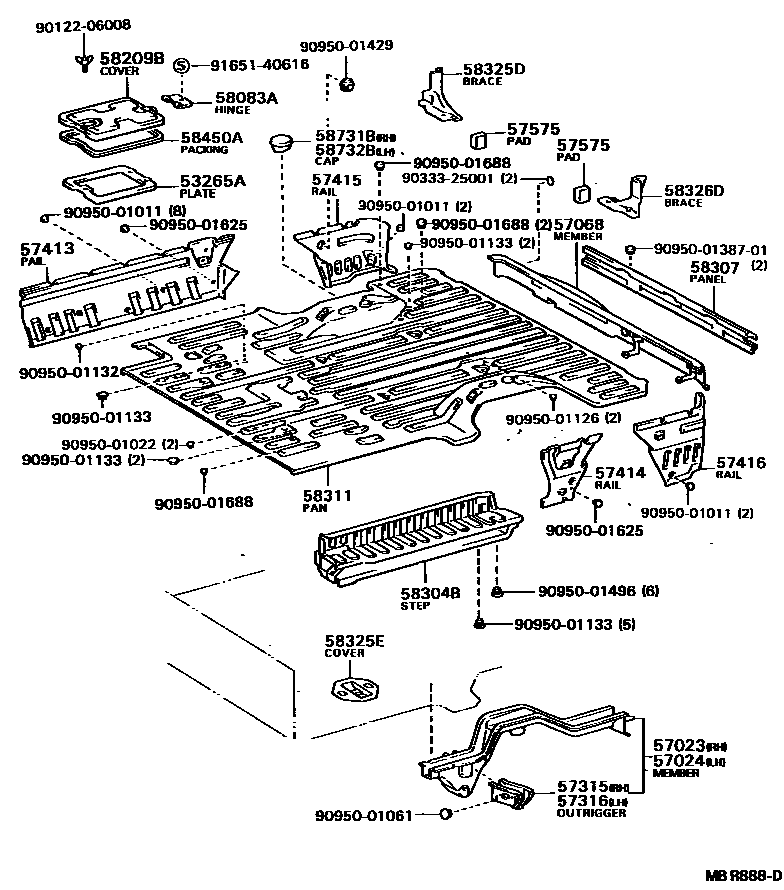

REAR FLOOR PANEL & REAR FLOOR MEMBER
53265PLATE, BATTERY CARRIER MOUNTING, NO.2
53265AREINFORCEMENT, BATTERY CARRIER MOUNTING
57023MEMBER SUB-ASSY, REAR SIDE, RH
NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY
57024MEMBER SUB-ASSY, REAR SIDE, LH
NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY
57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
*FRG
57316OUTRIGGER, NO.3 LH
57413RAIL, FLOOR SIDE, CENTER RH
57414RAIL, FLOOR SIDE, CENTER LH
57415RAIL, FLOOR SIDE, REAR RH
57416RAIL, FLOOR SIDE, REAR LH
57575PAD, DUSTPROOF FLOOR, REAR
58083AHINGE SUB-ASSY, BATTERY SERVICE COVER, MALE
58209BCOVER SUB-ASSY, BATTERY SERVICE HOLE
58304BSTEP SUB-ASSY, REAR FLOOR, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
W(CAPTAIN SEAT)
NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY
58325DBRACE, REAR FLOOR PANEL, RH
58325ECOVER, REAR FLOOR SERVICE HOLE
SABLE,TRIM4#
58326DBRACE, REAR FLOOR PANEL, LH
58450APACKING, BATTERY SERVICE HOLE COVER
58731BCAP, REAR ABSORBER, RH
58732BCAP, REAR ABSORBER, LH
9012206008
main90122-06008
9033325001
main90333-25001
9095001011
main90950-01011
9095001022
main90950-01022
9095001061
main90950-01061
9095001126
main90950-01126
9095001132
main90950-01132
9095001133
main90950-01133
909500138701
main90950-0138701
9095001429
main90950-01429
9095001496
main90950-01496
9095001625
main90950-01625
9095001688
main90950-01688
9165140616
main91651-40616
37 parts on this diagram · 3 diagrams in section
