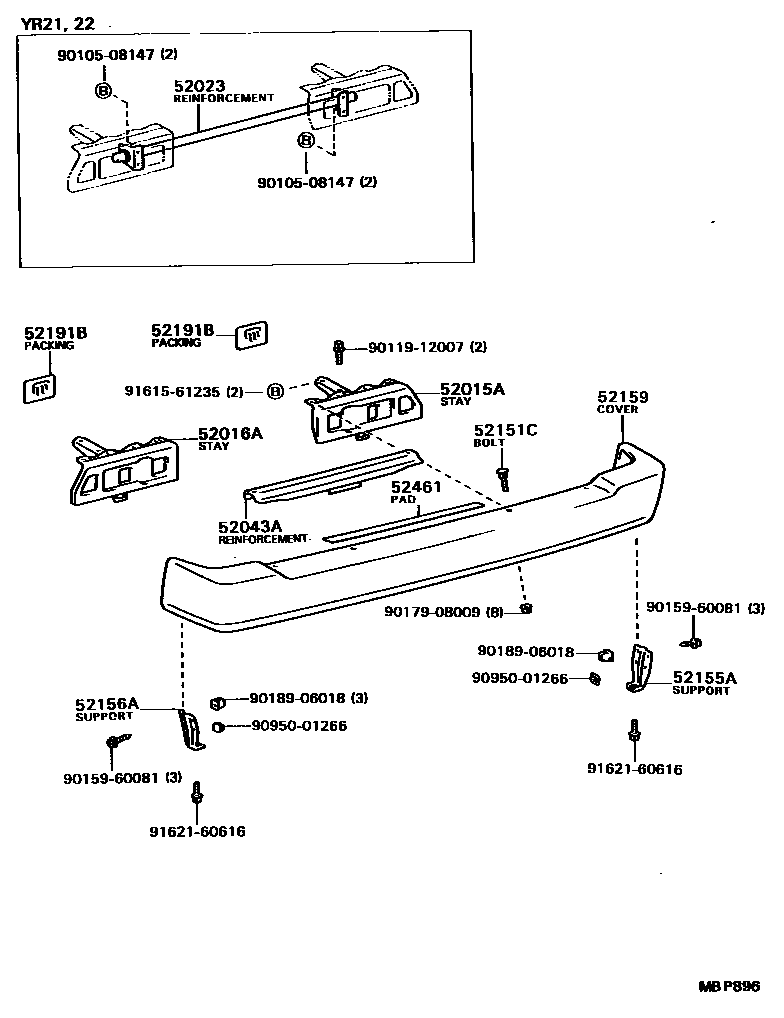

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-87002iYR31¥8,400198808-199001

sub52015-87003¥8,400

main52015-87003iYR2#¥8,400198808-199001

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-87003iYR2#¥10,700198808-199001

main52016-87004iYR31¥12,100198808-199001

sub52016-87003¥10,700

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-87001iYR2#¥26,900198808-199001

52043AREINFORCEMENT SUB-ASSY, REAR BUMPER BAR NO.2

main52043-87001iYR2#,31¥2,250198808-199001

52151CBOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)

main90112-08033iYR2#,31..DLX¥540198808-199001

UPR

main90112-08056iYR2#,31..GL¥540198808-199001

UPR

main90112-08061iYR2#,31¥180198808-199001

LWR

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-87001iYR2#,31¥600198808-199001

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-87001iYR2#,31¥600198808-199001

52159COVER, REAR BUMPER

main52159-87001iYR2#,31¥21,200198808-199001

52191BGROMMET, REAR BUMPER STAY

main52191-87002iYR2#,31¥1,780198808-199001

52461PAD, REAR BUMPER, CENTER

main52461-87002iYR2#,31¥300198808-199001

9010508147

main90105-08147

9011912007

main90119-12007¥260

9015960081

main90159-60081¥70

9017908009

main90179-08009¥220

9018906018

main90189-06018¥80

9095001266

main90950-01266¥220

9161561235

main91615-61235¥180

9162160616

main91621-60616¥90

18 parts on this diagram · 1 diagram in section
