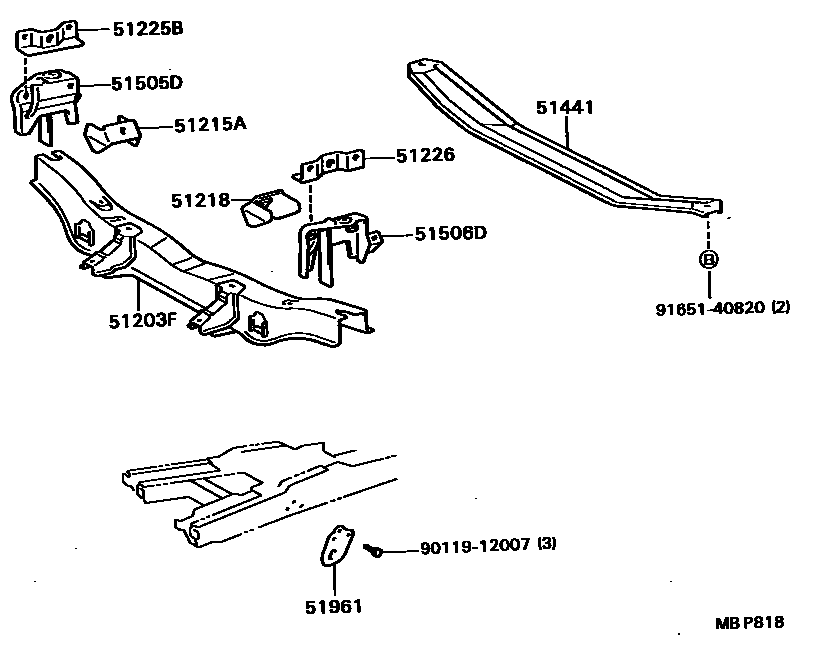

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51203FCROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51203-95D01iYR31198808-199001

main51221-28901iYR2#..LHD198808-199001

main51221-28902iYR2#..LHD198808-199001

W(POWER STEERING)

main51221-28903iYR21..RHD198808-199001

main51221-28904iYR21..RHD198808-199001

W(POWER STEERING)

51215AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51215-87007iYR2#198808-199001

sub51215-28010

51218REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH

main51218-87002iYR2#198808-199001

sub51218-28020

51225BBRACKET, FRONT SUSPENSION MEMBER, RH

main51225-87003iYR2#198808-199001

51226BRACKET, FRONT SUSPENSION MEMBER, LH

main51226-87003iYR2#198808-199001

51441COVER, ENGINE UNDER, NO.1

main51441-87002iYR2#198808-199001

main51441-95D00iYR31198808-199001

51505DSUPPORT ASSY, FRONT SUSPENSION RH

main51505-28902iYR2#..LHD198808-199001

main51505-28903iYR21..RHD198808-199001

51506DSUPPORT ASSY, FRONT SUSPENSION, LH

main51506-28902iYR2#..LHD198808-199001

main51506-28903iYR21..RHD198808-199001

51961HOOK, NO.1

main51970-87001iYR2#198808-199001

RH

main51970-95D00iYR31198808-199001

RH

main51980-87001iYR2#198808-199001

LH

main51980-95D00iYR31198808-199001

LH

9011912007

main90119-12007

9165140820

main91651-40820

11 parts on this diagram · 2 diagrams in section
