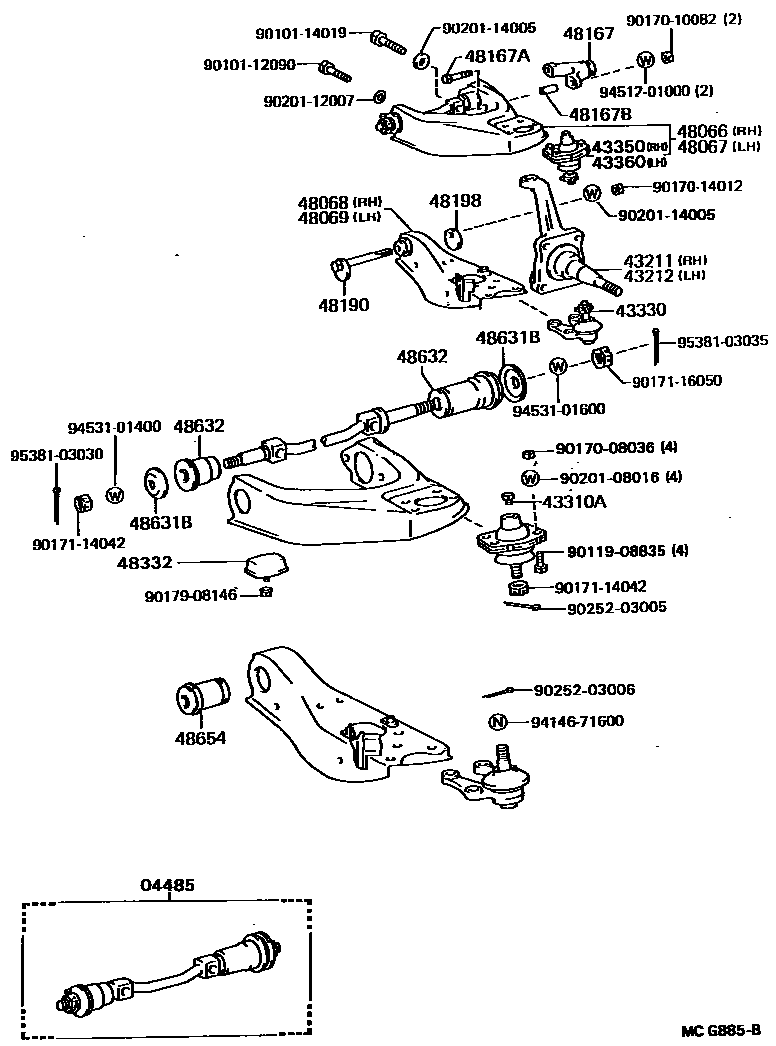

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-28020iYR2#198808-199001

43211KNUCKLE, STEERING, RH

main43201-28010iYR31198808-199001

main43211-28021iYR2#198808-199001

43212KNUCKLE, STEERING, LH

main43202-28010iYR31198808-199001

main43211-28021iYR2#198808-199001

43310APLUG (FOR BALL JOINT)

main90345-06014iYR2#,31198808-199001

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29165iYR31198808-199001

RH

sub43330-29166

main43330-29175iYR2#198808-199001

sub43330-29545

main43340-29115iYR31198808-199001

LH

sub43340-29116

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-29036iYR2#198808-199001

sub43350-29076

43360JOINT ASSY, FRONT UPPER BALL, LH

main43360-29056iYR2#198808-199001

sub43350-29076

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-28030iYR31198808-199001

sub48066-28050

main48610-28012iYR2#198808-199001

sub48610-28013

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-28030iYR31198808-199001

sub48067-28050

main48630-28012iYR2#198808-199001

sub48630-28013

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-28031iYR31198808-199001

main48068-28040iYR2#198808-199001

sub48068-28080

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-28031iYR31198808-199001

main48069-28040iYR2#198808-199001

sub48069-28080

48167ARM, TORQUE

main48106-28010iYR2#198808-199001

main48106-28020iYR31198808-199001

48167ABOLT(FOR TORQUE ARM SETTING)

main91121-71085iYR2#198808-199001

48167BTUBE(FOR TORQUE ARM SETTING BOLT)

main90440-17029iYR2#198808-199001

48190CAM ASSY, CAMBER ADJUST

main48190-27010iYR2#198808-199001

sub48190-27020

sub90179-14046

48198CAM, CAMBER ADJUST, NO.2

main48198-27010iYR2#198808-199001

48332BUMPER, FRONT SPRING, NO.2

main48331-27060iYR2#198808-199001

sub48331-29055

main48331-28020iYR31198808-199001

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02048iYR2#198808-199001

RR

main90948-02049iYR2#198808-199001

FR

48632BUSH, UPPER ARM

main48632-27010iYR2#198808-199001

FR

main48635-28010iYR2#198808-199001

RR

48654BUSH, LOWER ARM

main48061-27011iYR2#198808-199001

main48061-28021iYR31198808-199001

9010112090

main90101-12090

9010114019

main90101-14019

9011908835

main90119-08835

9017008036

main90170-08036

9017010082

main90170-10082

9017014012

main90170-14012

9017114042

main90171-14042

9017116050

main90171-16050

9017908146

main90179-08146

9020108016

main90201-08016

9020112007

main90201-12007

9020114005

main90201-14005

9025203005

main90252-03005

9025203006

main90252-03006

9414671600

main94146-71600

9451201000

main94512-01000

9453101400

main94531-01400

9453101600

main94531-01600

9538103030

main95381-03030

9538103035

main95381-03035

40 parts on this diagram · 2 diagrams in section
