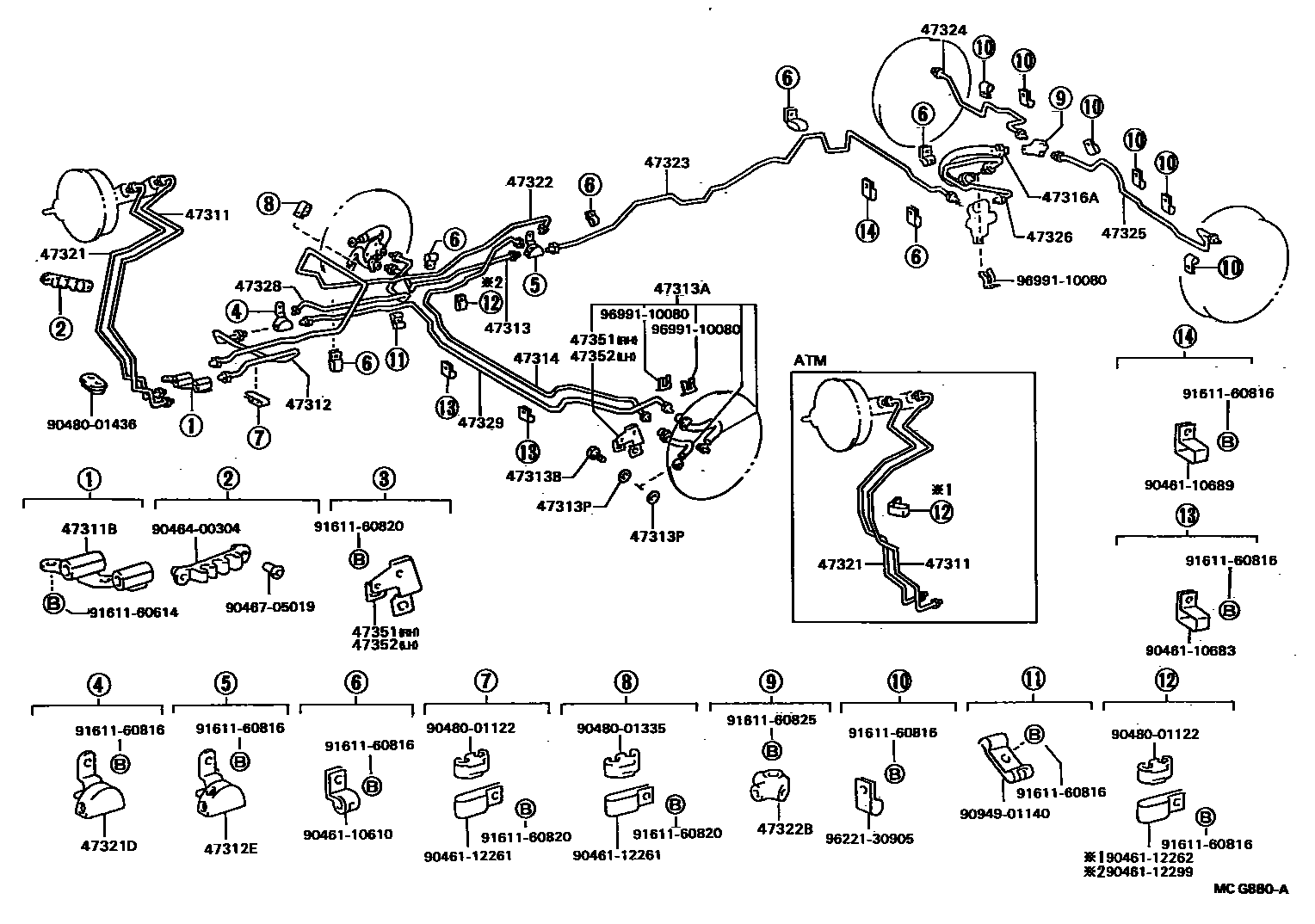

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

47311TUBE, FRONT BRAKE, NO.1

main47311-28180iYR21..RHD..5F¥1,320198808-199001

main47311-28190iYR21..4FC¥1,320198808-199001

main47311-28200iYR22..GL;YR21,31..LHD¥1,490198808-199001

main47311-28220iYR22..5F..GL¥800198808-199001

SWEDEN SPEC

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10097iYR2#,31¥1,440198808-199001

47312TUBE, FRONT BRAKE, NO.2

main47312-28110iYR31¥740198808-199001

main47312-28120iYR2#¥1,830198808-199001

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10025iYR31¥910198808-199001

main90414-10014iYR2#¥1,170198808-199001

47313TUBE, FRONT BRAKE, NO.3

main47313-28060iYR2#¥790198808-199001

main47313-28080iYR31¥1,120198808-199001

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main47330-28010iYR2#¥3,420198808-199001

RH

main47340-28010iYR2#¥3,420198808-199001

LH

main90947-02506iYR31¥2,490198808-199001

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iYR2#,31¥200198808-199001

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iYR2#,31¥100198808-199001

47314TUBE, FRONT BRAKE, NO.4

main47314-28060iYR2#¥1,650198808-199001

main47314-28080iYR31¥1,680198808-199001

47316TUBE, FRONT BRAKE, NO.6

main47316-28020iYR22..5F..GL¥1,000198808-199001

SWEDEN SPEC

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02523iYR31¥1,960198904-199001

sub90947-02492¥1,680

main96940-33106iYR2#¥1,460198808-199001

sub96940-33107¥1,260

main96940-33606iYR31¥1,540198808-198904

sub90947-02492¥1,680

47321TUBE, REAR BRAKE, NO.1

main47321-28180iYR21..RHD..5F¥1,090198808-199001

main47321-28190iYR21..4FC¥1,320198808-199001

main47321-28200iYR22..GL;YR21,31..LHD¥1,490198808-199001

main47321-28220iYR22..5F..GL¥800198808-199001

SWEDEN SPEC

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10063iYR31¥810198808-199001

main90413-10183iYR2#¥1,170198808-199001

47322TUBE, REAR BRAKE, NO.2

main47322-28080iYR2#¥790198808-199001

main47322-28100iYR31¥600198808-198909

sub47322-28101¥620

main47322-28101iYR31¥620198909-199001

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10130iYR2#,31¥1,070198808-199001

47323TUBE, REAR BRAKE, NO.3

main47323-28130iYR2#¥2,420198808-199001

main47323-28160iYR31¥2,760198808-199001

47324TUBE, REAR BRAKE, NO.4

main47324-28041iYR21¥800198808-199001

main47324-28071iYR21..LHD¥800198808-199001

W(LSD)

main47324-28110iYR31¥740198808-199001

47325TUBE, REAR BRAKE, NO.5

main47325-28060iYR21¥1,200198808-199001

main47325-28090iYR22¥1,340198808-199001

W(LSD)

main47325-28110iYR31¥1,320198808-199001

47326TUBE, REAR BRAKE, NO.6

main47326-28060iYR2#,31¥980198808-199001

47328TUBE, REAR BRAKE, NO.8

main47328-28010iYR2#¥1,000198808-199001

sub47328-28011¥980

main47328-28020iYR31¥1,340198808-199001

47329TUBE, REAR BRAKE, NO.9

main47329-28010iYR2#¥1,680198808-199001

sub47329-28011¥1,650

main47329-28020iYR31¥1,680198808-199001

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-28040iYR31¥1,880198808-199001

main47351-28050iYR2#¥1,160198808-199001

sub47351-28051¥1,140

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-28040iYR31¥1,880198808-199001

main47352-28050iYR2#¥1,160198808-199001

sub47352-28051¥1,140

9046110610

main90461-10610¥330

9046110683

main90461-10683¥240

9046110689

main90461-10689¥310

9046112261

main90461-12261¥240

9046112262

main90461-12262¥240

9046112299

main90461-12299¥320

9046400304

main90464-00304¥210

9046705019

main90467-05019¥140

9048001122

main90480-01122¥120

9048001335

main90480-01335¥200

9048001436

main90480-01436¥170

9094901140

main90949-01140¥180

9161160614

main91611-60614¥180

9161160816

main91611-60816¥230

9161160820

main91611-60820¥200

9161160825

main91611-60825¥140

9622130905

main96221-30905¥370

9699110080

main96991-10080¥100

9846112261

main98461-12261

42 parts on this diagram · 4 diagrams in section
