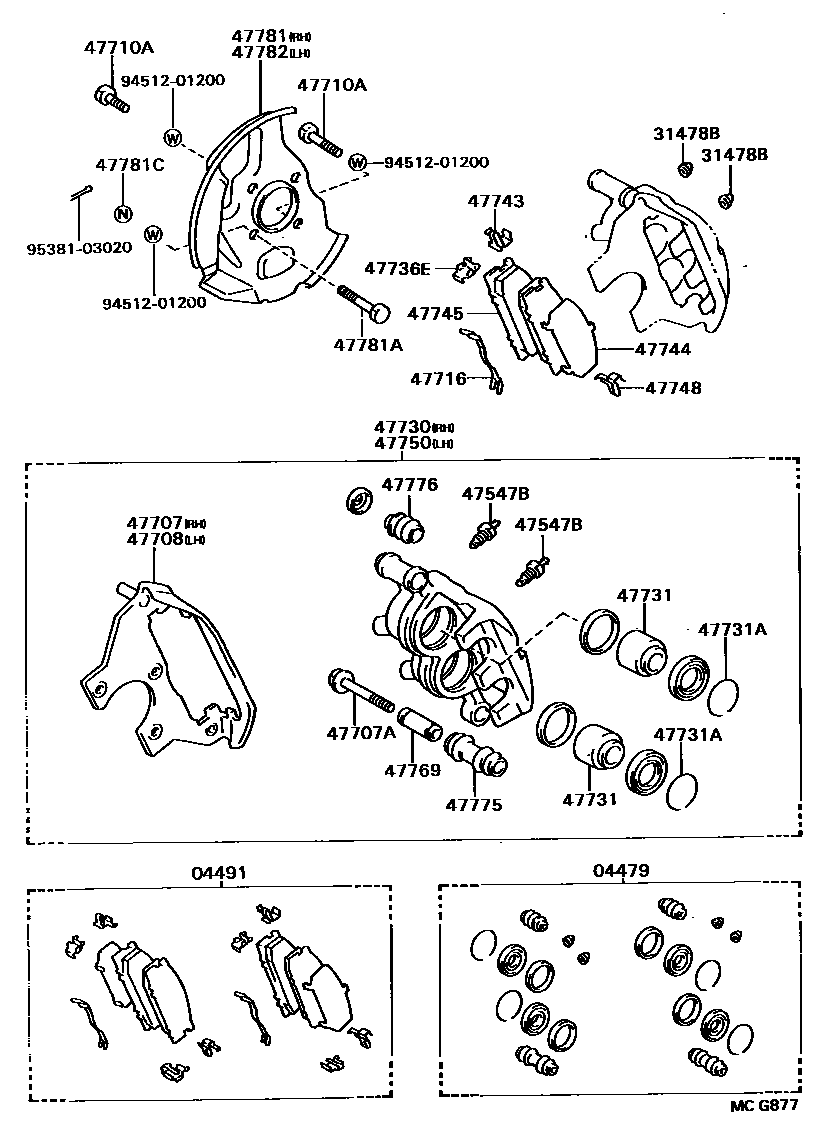

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-28021iYR2#198808-199001

main04479-28031iYR31198808-199001

04491PAD KIT, DISC BRAKE, FRONT

main04491-28150iYR2#198808-199001

sub04465-28130

main04491-28170iYR31198808-199001

sub04465-28130

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iYR2#,31198808-199001

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iYR2#,31198808-199001

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-28040iYR31198808-199001

main47707-28050iYR2#198808-199001

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-10385iYR2#,31198808-199001

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-28040iYR31198808-199001

main47708-28050iYR2#198808-199001

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12010iYR2#198808-199001

*12-1.25PX50-26

main90101-12030iYR2#198808-199001

*12-1.25PX31-20

main90101-12123iYR31198808-199001

*12-1.25PX28.1-20

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-28020iYR2#,31198808-199001

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-28070iYR31198808-199001

main47730-28080iYR2#198808-199001

47731PISTON, FRONT DISC BRAKE

main47731-14080iYR2#198808-199001

main47731-28030iYR31198808-199001

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-49001iYR2#,31198808-199001

47736EPLATE, FRONT DISC BRAKE PAD GUIDE, NO.1

main47736-14030iYR2#,31198808-199001

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-14040iYR2#,31198808-199001

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-28040iYR2#198808-199001

main47744-28050iYR31198808-199001

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-28030iYR2#,31198808-199001

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14050iYR2#,31198808-199001

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-28070iYR31198808-199001

main47750-28080iYR2#198808-199001

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28020iYR2#,31198808-199001

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-28020iYR2#,31198808-199001

47776BOOT, MAIN PIN(FOR FRONT DISC BRAKE)

main47776-14010iYR2#,31198808-199001

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-28070iYR2#198808-199001

main47781-28080iYR31198808-199001

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12001iYR2#198808-199001

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94145-71200iYR2#198808-199001

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-28070iYR2#198808-199001

main47782-28080iYR31198808-199001

9451201200

main94512-01200

9538103020

main95381-03020

27 parts on this diagram · 3 diagrams in section
