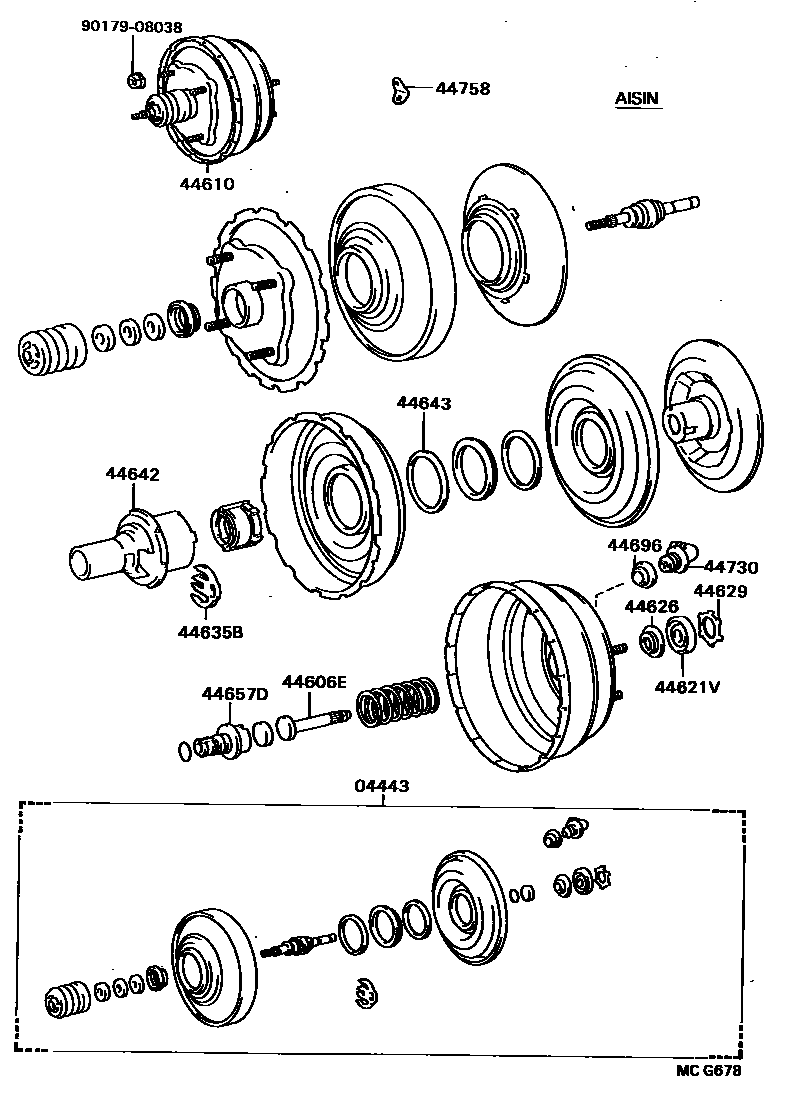

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-28270iYR22,31198808-199001

JKC

main04443-28300iYR21..LHD198808-199001

JKC

main04443-28390iYR21..RHD198808-199001

AISIN

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-20800iYR21..RHD198808-199001

44610BOOSTER ASSY, BRAKE

main44610-28480iYR22,31198808-199001

AISIN

main44610-28560iYR21..LHD198808-199001

AISIN

main44610-28700iYR21..RHD198808-199001

44621VSEAL, BOOSTER BODY

main44621-14030iYR21..RHD198808-199001

44626RETAINER, BOOSTER ROD CUP

main44626-60010iYR21..RHD198808-199001

44629RING, CIRCULAR INTERNAL

main44628-60010iYR21..RHD198808-199001

44635BKEY, VALVE STOPPER

main44635-20800iYR21..RHD198808-199001

44642PISTON, BRAKE BOOSTER

main44642-20800iYR21..RHD198808-199001

44643RETAINER, DIAPHRAGM

main44643-20800iYR21..RHD198808-199001

44657DCASE, REACTION DISC

main44657-30560iYR21..RHD198808-199001

44696GROMMET, CHECK VALVE

main90480-24015iYR22,31198808-199001

JKC

main90480-24439iYR22,31198808-199001

AISIN

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-24020iYR21198808-199001

main44730-28010iYR22,31198808-199001

JKC

44758BRACKET, VACUUM CHECK VALVE

main44758-28070iYR22,31198808-199001

main44758-28080iYR21..LHD198808-199001

main44758-28090iYR21..RHD198808-199001

9017908038

main90179-08038

14 parts on this diagram · 3 diagrams in section
