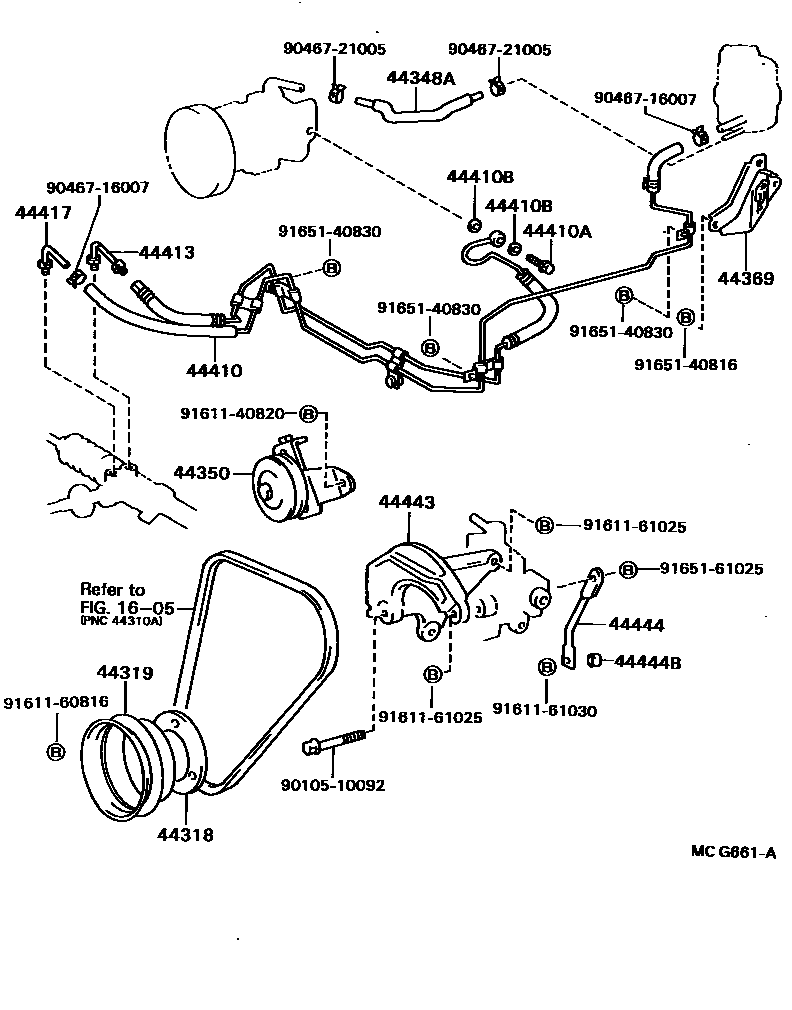

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

1605

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-28012iYR31198808-199001

44319PULLEY, VANE PUMP DRIVE

main44319-28013iYR31198808-199001

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-28010iYR21..LHD198808-199001

RESERVOIR SIDE

main44348-28021iYR21..LHD198808-199001

PUMP SIDE

main44348-28040iYR31198808-199001

main44348-28090iYR21..RHD198808-199001

44350PULLEY ASSY, POWER STEERING IDLE

main44350-28011iYR31198808-199001

44369BRACKET, OIL RESERVOIR, NO.1

main44369-28011iYR31198808-199001

main44390-28010iYR21..RHD198808-199001

44410TUBE ASSY, PRESSURE FEED

main44410-28170iYR2#..LHD198808-199001

sub44410-28171

main44410-28180iYR31198808-199001

main44410-28191iYR21..RHD198808-199001

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iYR31198808-199001

44410BGASKET(FOR PRESSURE FEED TUBE)

main90430-16242iYR31198808-199001

44413TUBE, PRESSURE FEED, NO.1

main44413-28200iYR21..RHD198808-199001

44417TUBE, RETURN, NO.2

main44417-28060iYR2#..LHD198808-199001

main44417-28080iYR31198808-199001

main44417-28140iYR21..RHD198808-199001

44443BRACKET, PUMP

main44443-28021iYR31198808-199001

44444STAY, PUMP, REAR

main44444-27030iYR31198808-199001

44444BCOLLAR (FOR PUMP REAR STAY)

main90387-12031iYR31198808-199001

9010510092

main90105-10092

9046716007

main90467-16007

9046721005

main90467-21005

9161140820

main91611-40820

9161160816

main91611-60816

9161161025

main91611-61025

9161161030

main91611-61030

9165140816

main91651-40816

9165140830

main91651-40830

9165161025

main91651-61025

24 parts on this diagram · 5 diagrams in section
